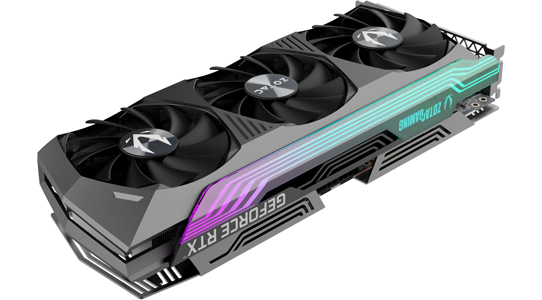

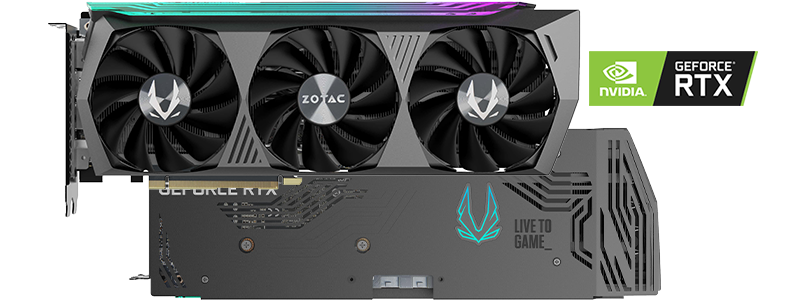

ZOTAC GAMING RTX 3070 Ti AMP Holo Ampere Graphics Card
AMPLIFIED, HIGH FIDELITY GAMING
Prepare yourself for an unforgettable gaming experience with the ZOTAC GAMING GeForce RTX 3070 Ti AMP HOLO graphics card, powered by the groundbreaking NVIDIA Ampere Architecture boasting 2nd generation RT cores and 3rd generation tensors with breathtaking improvements to graphical performance and AI Ray-tracing. The ZOTAC GAMING 3070 Ti AMP Holo features dynamic ARGB LED lighting, superfast GDDR6X memory, a full metal-die cast backplate to protect the internal components and a refined IceStorm 2.0 cooling system including a new 11-blade fan, new improved heatpipe layout and active fan control with freeze stop functionality to keep your new GPU running at its best. Get Amplified with ZOTAC GAMING. New streaming multiprocessors and superfast memory give you amplified gaming with ultra graphics fidelity.
6144 Cuda Cores
1580 MHz Core Clock
1830 MHz Boost Clock
8GB GDDR6X Memory
IceStorm 2.0 Cooling - Redefined
11 BLADE FAN
The all-new 11 blade fan design, the curved blades are optimised for static pressure and increase airflow by up to 10% when compared to previous generations.
ALUMINIUM FIN-STACK ARRAY
A wide aluminium fin-stack array heatsink sectioned in up to 3 groups and paired with up to six copper heat pipes, span the length of the graphics card to extract and distribute more heat more efficiently than before.
DIRECT CONTACT GPU
A new and improved heat pipe layout is utilised in a more densely packed space. The flattened and vertically-laid heatpipes add up to 72% more direct contact over the GPU to transfer heat efficiently and quickly away from the core.
Equipped with powerful Addressable LEDs, lighting and colours are fluid, dynamic and more mesmerising with HoloBlack.
FREEZE FAN-STOP TECHNOLOGY
Automatically enable efficient and quieter cooling by stopping the fans when the GPU is idle. The smart control results in lower noise levels and reduces wear and tear on the fan system, extending fan longevity.
Take Control with Fire Storm
ALL THE CONTROLS IN ONE PLACE
With a simple and intuitive minimal interface, the ZOTAC GAMING FireStorm Utility provides simple tools to transform fine-tuning your GPU into a simple task. Monitor your GPU, control the fan speed, adjust the SPECTRA supported RGB lighting, and many more options.
NVIDIA Ampere Architecture
2ND GEN RT CORES 2X THROUGHPUT
3RD GEN TENSOR CORES UP TO 2X THROUGHPUT
NEW SM2X FP32 THROUGHPUT
DLSS AI Acceleration
MAX FPS. MAX QUALITY. POWERED BY AI.
NVIDIA DLSS is groundbreaking AI rendering that boosts frame rates with uncompromised image quality using the dedicated AI processing Tensor Cores on GeForce RTX. This gives you the performance headroom to crank up settings and resolutions for an incredible visual experience. The AI revolution has arrived to gaming.
Ultimate Ray Tracing And AI
RTX. IT’S ON.
Only NVIDIA’s RTX platform includes dedicated RT Cores for ray tracing and Tensor Cores for AI that enable groundbreaking technologies at breakthrough speed. Experience today’s biggest blockbusters like never before. RTX. It’s On.
NVIDIA Reflex Dynamically Reduces System Latency
VICTORY MEASURED IN MILLISECONDS
NVIDIA Reflex delivers the ultimate competitive advantage. The lowest latency. The best responsiveness. Powered by GeForce RTX™ 30 Series GPUs and NVIDIA® G-SYNC® monitors. Acquire targets faster, react quicker, and increase aim precision through a revolutionary suite of technologies built to optimise and measure system latency for competitive games.
Create as Fast as your Imagination
UP YOUR CREATIVE GAME
Take your creative projects to a new level with GeForce RTX 30 Series GPUs. Delivering AI-acceleration in top creative apps. Backed by the NVIDIA Studio platform of dedicated drivers and exclusive tools. And built to perform in record time. Whether you’re rendering complex 3D scenes, editing 8K video, or livestreaming with the best encoding and image quality, GeForce RTX GPUs give you the performance to create your best.
Transform any Room Into your Home Studio
STREAM LIKE A BOSS
Live streamers can now level up their game even further with the new NVIDIA Broadcast app. It upgrades any room into a home broadcast studio by transforming standard webcams and microphones into smart devices through the power of AI. The Broadcast app offers three AI-powered features which are: Noise Removal, Virtual Background and Auto frame so the focus always remains on you.
DirectX Raytracing Allows Incredibly Realistic Graphic Effects
DIRECTX 12 ULTIMATE OFFERS FEATURES LIKE RAY TRACING AND VARIABLE RATE SHADING
DirectX Raytracing allows games to simulate how light works in real life, providing incredibly realistic and beautiful graphics effects like global illumination, reflections, and shadows.
NVIDIA has partnered closely with Microsoft to enable full DXR support on GeForce GPUs. GeForce RTX GPUs were designed from the start for the extreme demands of ray-tracing workloads. Specialised RT cores, found only on GeForce RTX graphics cards, provide billions of rays per second of performance, and up to 3X the frame rates with DXR games and applications. This makes ray tracing at real-time frame rates possible for the first time.
GeForce RTX 30 Series Features
8K HDR GAMING
Step up to the ultimate 4K gaming experience with the GeForce RTX and enjoy today’s biggest games in amazing detail.
The essential companion to your GeForce graphics card. Capture and share videos, screenshots, and livestreams. Keep your drivers up to date and optimize your games.
GAME READY DRIVERS
Get the highest levels of performance, and the smoothest experience possible, from the moment you start playing.
Take your VR experiences to a whole new level with the powerful new GeForce® RTX GPUs. You can count on the lowest latency and highest performance with VR.
Get smooth, tear-free gameplay at refresh rates up to 360 Hz, plus HDR and more. NVIDIA G-SYNC gaming monitors are the ultimate go-to equipment for enthusiast gamers.
Turn your screenshots into art with this powerful in-game photo mode that captures 360, HDR, and super-resolution photos.
|Chipset||GeForce RTX 3070 Ti|
|Manufacturing process||8 nm|
|Cores & Clocks|
|Boost Clock||1830 MHz|
|Video Memory (VRAM)|
|Memory Clock||19000 MHz|
|Memory Bus||256 Bit|
|Cooling Solution||Tri Fan (3)|
|Cooler Design||Zotac IceStorm 2.0|
|I/O & Connectivity|
|Interface||PCIe 4.0 (x16)|
|GeForce VR Ready||Yes|
|Multi-Way Graphics Support|
|Microsoft DirectX Support||12 API|
|Max. Concurrent Displays||4 Displays|
|Maximum Digital Resolution||7680x4320 @ 60Hz (8K UHD)|
|Maximum Analog (VGA) Resolution|
|Real-Time Ray Tracing||Yes|
|NVIDIA RT Cores|
|NVIDIA Tensor Cores|
|Power & Thermals|
|Graphics Card Power Connectors||2 x 8-pin PCIe|
|Graphics Card TDP/Power|
|Minimum Recommended PSU||750 W|
|Maximum GPU Temperature||93 °C|
|Low Profile Compatible||No|
|Low Profile Support||N/A|
|Dimensions||316.8 x 122.7 x 58.6 mm|
