Z590-A Pro 11th Generation Intel ATX Motherboard from MSI
A WHOLE NEW GENERATION
Take a step into the future with The MSI Z590-A PRO, here to support the very latest 11th Generation Intel processors; bolstered with an arsenal of top-shelf modern features like; the latest 4th gen PCI-e and M.2, lightning 20G USB connectivity, DDR4 Memory boosts, a premium thermal design with heavy plated MOSFET heatsinks, and onboard M.2 Shield Frozr. The PRO series helps users work smarter by giving users stable functionality and high-quality assembly to increase maximise efficiency, optimise professional workflows with less trouble shooting and greater product longevity. Step up your game with MSI.
Intel Z590 Chipset
LGA 1200 CPU Socket
10th & 11th Gen Intel Compatible CPUs
ATX Form Factor

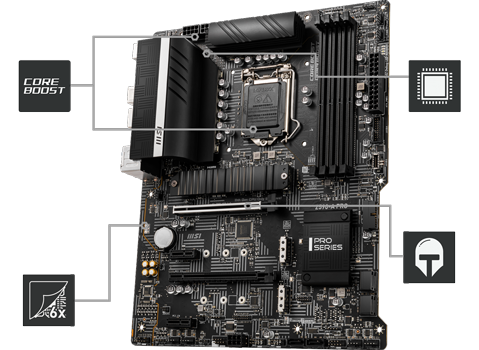

Special Features of the Z590-A PRO
CORE BOOST
TECHNOLOGY
Combining 2x 8 pin power connectors and premium layout design, that is ready for unleashing the maximum performance.
DIGITAL
PWM
Highest quality component digital power IC makes sure your system runs smoothly under the most extreme conditions.
6 LAYER
PCB
6 layer PCB provides higher performance and long-lasting system stability without any compromise.
PCIE
STEEL ARMOR
Protecting VGA cards against bending and EMI for better performance, stability and strength.

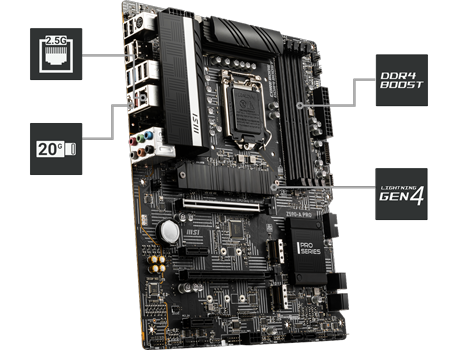

Next Generation Connectivity with MSI
2.5G NETWORK SOLUTION
Featuring premium 2.5G LAN with LAN manager delivers better network experience.
LIGHTNING USB 20G
Built-in USB 3.2 Gen 2x2 port, offers the 20Gbps transmission speed, 4X faster than USB 3.2 Gen 1.
DDR4 BOOST
The Fully isolated DIMM slots to deliver pure data signals for the best gaming and overclocking performance.
LIGHTNING GEN 4 SOLUTION
The latest Gen 4 PCI-E and M.2 solution with up to 64GB/s bandwidth for maximum transfer speed.

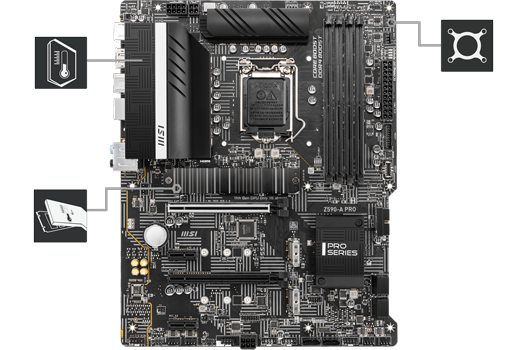

Premium Thermal Solution
M.2 SHIELD FROZR
Strengthened built-in M.2 thermal solution. Keeps M.2 SSDs safe while preventing throttling, making them run faster.
PUMP FAN SUPPORT
Control watercooling pump speeds for best flow and noise control.
ENLARGED CHIPSET HEATSINK
Larger heatsink for chipset ensures better heat dissipation and cooling effects.

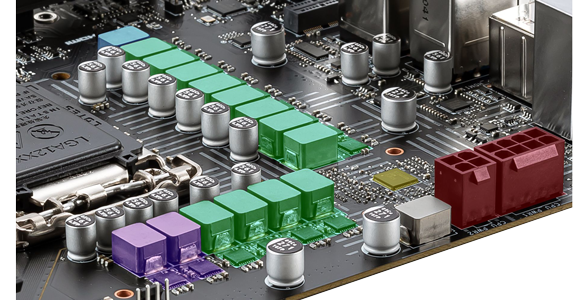

Unbelievable Power Solution
TIME TO GET AGGRESSIVE
Unleash and sustain maximum performance with an aggressive VRM design built with a total of 16 Duet Rail Power System(DRPS). Combining 8+4 pin power connectors and exclusive Core Boost technology, Z590-A PRO motherboard is ready to sustain heavy daily work.
2 PHASE GT Power
8+4 CPU Power Connectors
1 PHASES A Power
12 DUET RAIL CPU Power
DIGITAL PWM IC
Experience Core Boost
FASTER AND UNDISTORTED CURRENT DELIVERY
Core Boost technology combines MSI’s premium layout and digital power design which allows for faster and undistorted current delivery to the CPU at pin-point precision. Not only supporting multi-core CPU, also creating the perfect conditions for your CPU.
Unmatched Memory Performance
ADVANCED PERFORMANCE WITH DDR4 BOOST
MSI motherboards are crammed with features to fuel your system's memory with more speed, higher overclockability and increased stability. The technical enhancements of DDR4 Boost allow for more stability at higher memory speeds compared to other brands. Enjoy the additional boost in operational performance or when working with large video and photography files. MSI conducts thorough memory testing with the most popular memory brands under extreme conditions to ensure your system runs stable no matter what.
Protecting your PCIe Slots
FORTIFY YOUR SYSTEM WITH PCI-E STEEL ARMOR
Z590-A PRO supports multiple GPU solution. Optimal PCI-Express slot placement allows for better fitting and airflow. That way, you can enjoy the best graphics at the highest framerate jumping from your screen when running an AMD® CrossFire™ setup Steel Armor has more solder points on the PCB for more strength and protects the PCI-Express signals against electromagnetic interference for a stutter-free user experience.
A Fully Comprehensive I/O
Expansion / Connectivity |
|
|---|---|
| Expansion Slots | 1 x CPU ¦ 4 x DIMM 288-pin ¦ 1 x PCIe 4.0 x16 (PCIe 4.0 (11th Gen Intel CPUs), PCIe 3.0 (10th Gen Intel CPUs)) ¦ 1 x PCIe 3.0 x16 (x4 mode) ¦ 2 x PCIe 3.0 x1 |
| Storage Interfaces | SATA-600 -connectors: 6 x 7pin Serial ATA - RAID 0 / RAID 1 / RAID 10 / RAID 5 ¦ SATA-600 / PCIe 3.0 -connectors: 2 x M.2 - RAID 0 / RAID 1 ¦ PCIe 4.0 -connectors: 1 x M.2 |
| RAID Features | Intel Smart Response Technology |
| Interfaces | 1 x HDMI ¦ 1 x DisplayPort ¦ 2 x USB 3.2 Gen 1 ¦ 4 x USB 2.0 ¦ 1 x LAN (2.5Gigabit Ethernet) ¦ 1 x PS/2 keyboard / mouse ¦ 1 x USB-C Gen2x2 ¦ 1 x audio line-out - mini-jack ¦ 1 x microphone - mini-jack ¦ 1 x audio line-out (center/subwoofer) - mini-jack ¦ 1 x audio line-out (rear) - mini-jack ¦ 1 x audio line-in - mini-jack ¦ 1 x audio line-out (side surround) - mini-jack ¦ 1 x USB 3.2 Gen 2 |
| Internal Interfaces | 4 x USB 2.0 - header ¦ 4 x USB 3.2 Gen 1 - header ¦ 1 x USB-C Gen2 - header ¦ 1 x audio - header ¦ 1 x serial - header |
| Power Connectors | 4-pin ATX12V connector, 24-pin main power connector, 8-pin ATX12V connector, 6-pin PCI Express power connector |
General |
|
| Product Type | Motherboard - ATX |
| Chipset Type | Intel Z590 |
| Processor Socket | LGA1200 Socket |
| Max Processors Qty | 1 |
| Compatible Processors | (supports 11th and 10th Generation Intel Core / Pentium Gold / Celeron) |
Supported RAM |
|
| Max Size | 128 GB |
| Technology | DDR4 |
| Bus Clock | 2133 MHz, 2666 MHz, 2933 MHz, 4000 MHz (O.C.), 4400 MHz (O.C.), 4700 MHz (O.C.), 3200 MHz, 5333 MHz (O.C.) |
| Supported RAM Integrity Check | Non-ECC |
| Registered or Buffered | Unbuffered |
| Features | Dual channel memory architecture, Intel Extreme Memory Profiles (XMP) |
Audio |
|
| Type | HD Audio (8-channel) |
| Audio Codec | Realtek ALC897 |
| Compliant Standards | High Definition Audio |
LAN |
|
| Network Controller | Intel I225-V |
| Network Interfaces | 2.5 Gigabit Ethernet |
Features |
|
| Hardware Features | Digital PWM, AMD CrossFireX technology support, Intel Optane Memory Ready, M.2 Shield FROZR, MSI Core Boost, MSI PCIe Steel Slot, 12+2+1 Phase Power Design |
Miscellaneous |
|
| Compliant Standards | DisplayPort 1.4 |
| Width | 30.5 cm |
| Depth | 24.4 cm |
