MSI RTX 3070 VENTUS 3X OC LHR Ampere Graphics Card

VENTUS BRINGS A PERFORMANCE-FOCUSED DESIGN
Experience the MSI VENTUS 3X OC NVIDIA® GeForce® RTX™ 3070, built with lightweight composite Graphene backplate which reinforces the length of the graphics card while delivering passive thermal conduction. The GeForce® RTX™ 3070 delivers the superior performance that gamers crave, powered by the all-new NVIDIA GeForce Ampere architecture boasting 2nd Generation RT cores and 3rd Generation Tensor Cores to bring you the biggest graphical performance leap of the modern era. A capable triple fan arrangement is laid into a rigid industrial design, allowing this sharp looking graphics card fit into any supreme build. With Anti-bending Force, the build quality is strengthened with a rigid metal anti-bending strap. A bundled support bracket can be attached to your PC case for additional graphics card reinforcement. A custom PCB Design provides greater reliability and enhanced power circuitry for pushing the card to its limits. VENTUS represents completing the task at hand, are you ready?
It's official Nvidia have introduced an improved hash rate limiter to newly manufactured graphics cards; reducing their effectiveness for mining cryptocurrency and bringing more graphics cards back into the hands of gamers, GeForce RTX GPUs have introduced a range of cutting-edge technologies — RTX real-time ray tracing, AI-powered DLSS frame rate booster, NVIDIA Reflex super-fast response rendering for best system latency, and many more — created to meet the needs of gamers and those who create digital experiences. Identified by a "Lite Hash Rate or LHR Label" Nvidia believe this additional step will get more GeForce cards at better prices into the hands of gamers everywhere.
5888 Cuda Cores
1500 MHz Core Clock
1755 MHz Boost Clock
8GB GDDR6 Memory

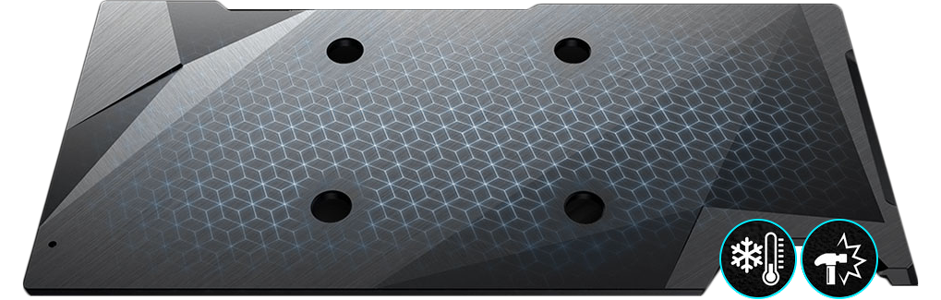

Designed with a Lightweight Composite Graphene Backplate

HOW COOL IS THIS!?
Be prepared for battle with the MSI RTX™ 3070 VENTUS 3X OC graphics card, which features a strong but lightweight composite Graphene backplate. This design reinforces the length of the graphics card while providing passive thermal conduction giving you a higher level of thermal-efficiency.
Cutting-Edge Triple Fan Thermal Design

TORX FAN 3.0
The award-winning MSI TORX Fan 3.0 design keeps the limits of thermal performance turning. The fan blades alternate between traditional blades and dispersion blades that focus and accelerate airflow into the heatsink.

THERMAL PADDING
Stay frosty with an abundance of thermal padding which provide additional heat dissipation for board components.

TOTALLY COOL CORE PIPES
This incredible design spreads the heat a long the full length of the heatsink for superior cooling.

CHILLINGLY SILENT
Zero Frozr is the calm before the storm, it keeps fans still and maintains silence until cooling is needed.
Rigid Metal Anti-Bending Strap

REST ASSURED, YOU'RE PROTECTED
Designed to stop your card from any PCB flex, Sagging or even worse damaging your PCIe slots, the MSI 30-series cards feature some serious build quality, strengthened in key areas by a rigid metal anti-bending strap.
NVIDIA Ampere Architecture

2ND GEN RT CORES 2X THROUGHPUT
3RD GEN TENSOR CORES UP TO 2X THROUGHPUT
NEW SM2X FP32 THROUGHPUT
DLSS AI Acceleration
MAX FPS. MAX QUALITY. POWERED BY AI.
NVIDIA DLSS is groundbreaking AI rendering that boosts frame rates with uncompromised image quality using the dedicated AI processing Tensor Cores on GeForce RTX. This gives you the performance headroom to crank up settings and resolutions for an incredible visual experience. The AI revolution has arrived to gaming.

Ultimate Ray Tracing And AI

RTX. IT’S ON.
Only NVIDIA’s RTX platform includes dedicated RT Cores for ray tracing and Tensor Cores for AI that enable groundbreaking technologies at breakthrough speed. Experience today’s biggest blockbusters like never before. RTX. It’s On.
NVIDIA Reflex Dynamically Reduces System Latency

VICTORY MEASURED IN MILLISECONDS
NVIDIA Reflex delivers the ultimate competitive advantage. The lowest latency. The best responsiveness. Powered by GeForce RTX™ 30 Series GPUs and NVIDIA® G-SYNC® monitors. Acquire targets faster, react quicker, and increase aim precision through a revolutionary suite of technologies built to optimise and measure system latency for competitive games.
Create as Fast as your Imagination

UP YOUR CREATIVE GAME
Take your creative projects to a new level with GeForce RTX 30 Series GPUs. Delivering AI-acceleration in top creative apps. Backed by the NVIDIA Studio platform of dedicated drivers and exclusive tools. And built to perform in record time. Whether you’re rendering complex 3D scenes, editing 8K video, or livestreaming with the best encoding and image quality, GeForce RTX GPUs give you the performance to create your best.
Transform any Room Into your Home Studio

STREAM LIKE A BOSS
Live streamers can now level up their game even further with the new NVIDIA Broadcast app. It upgrades any room into a home broadcast studio by transforming standard webcams and microphones into smart devices through the power of AI. The Broadcast app offers three AI-powered features which are: Noise Removal, Virtual Background and Auto frame so the focus always remains on you.
DirectX Raytracing Allows Incredibly Realistic Graphic Effects

DIRECTX 12 ULTIMATE OFFERS FEATURES LIKE RAY TRACING AND VARIABLE RATE SHADING
DirectX Raytracing allows games to simulate how light works in real life, providing incredibly realistic and beautiful graphics effects like global illumination, reflections, and shadows.
NVIDIA has partnered closely with Microsoft to enable full DXR support on GeForce GPUs. GeForce RTX GPUs were designed from the start for the extreme demands of ray-tracing workloads. Specialised RT cores, found only on GeForce RTX graphics cards, provide billions of rays per second of performance, and up to 3X the frame rates with DXR games and applications. This makes ray tracing at real-time frame rates possible for the first time.
GeForce RTX 30 Series Features

8K HDR GAMING
Step up to the ultimate 4K gaming experience with the GeForce RTX and enjoy today’s biggest games in amazing detail.

GEFORCE EXPERIENCE
The essential companion to your GeForce graphics card. Capture and share videos, screenshots, and livestreams. Keep your drivers up to date and optimize your games.

GAME READY DRIVERS
Get the highest levels of performance, and the smoothest experience possible, from the moment you start playing.

VIRTUAL REALITY
Take your VR experiences to a whole new level with the powerful new GeForce® RTX GPUs. You can count on the lowest latency and highest performance with VR.

NVIDIA G-SYNC
Get smooth, tear-free gameplay at refresh rates up to 360 Hz, plus HDR and more. NVIDIA G-SYNC gaming monitors are the ultimate go-to equipment for enthusiast gamers.

NVIDIA ANSEL
Turn your screenshots into art with this powerful in-game photo mode that captures 360, HDR, and super-resolution photos.
Key Specifications | |
---|---|
Chipset | GeForce RTX 3070 |
Edition | VENTUS 3X OC LHR |
Manufacturing process | 8 nm |
Microarchitecture | Ampere |
Cores & Clocks | |
---|---|
Cores | 5888 |
Core Clock | 1500 MHz |
Boost Clock | 1755 MHz |
Video Memory (VRAM) | |
---|---|
Memory Size | 8GB |
Memory Type | GDDR6 |
Memory Clock | 14000 MHz |
Memory Bus | 256 Bit |
Cooling | |
---|---|
Cooling Solution | Tri Fan (3) |
Cooler Design | MSI VENTUS Tri Fan Cooler |
Included/Fitted Backplate | Yes |
I/O & Connectivity | |
---|---|
Interface | PCIe 4.0 (x16) [PCIe 3.0 Backwards Compatible] |
Connectivity |
|
Visuals | |
---|---|
GeForce VR Ready | Yes |
Multi-Way Graphics Support | Not Supported |
Microsoft DirectX Support | 12 API |
HDCP Ready | Yes |
Max. Concurrent Displays | 4 Displays |
Maximum Digital Resolution | 7680x4320 (8K UHD) |
Maximum Analog (VGA) Resolution |
Ray-Tracing | |
---|---|
Real-Time Ray Tracing | Yes |
NVIDIA RT Cores | 46 |
NVIDIA Tensor Cores | 184 |
RTX-OPS | |
Rays Cast |
Power & Thermals | |
---|---|
Graphics Card Power Connectors | 2 x 8-pin PCIe |
Graphics Card TDP/Power | |
Minimum Recommended PSU | |
Maximum GPU Temperature | 93 °C |
Physical | |
---|---|
Width | 2.5 Slot |
Low Profile Compatible | No |
Low Profile Support | N/A |
Dimensions | 305 x 121 x 52 mm |
Package Type | Retail |
