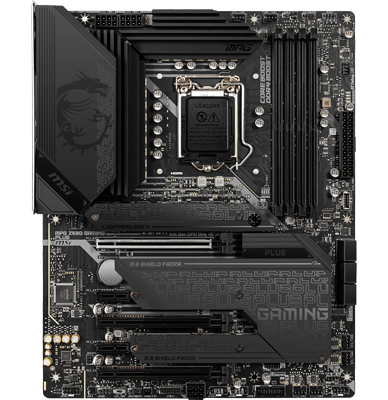

MPG Z590 GAMING PLUS 11th Generation Intel ATX Motherboard from MSI
A WHOLE NEW GENERATION
Ready to experience the future of gaming? The MSI Z590 Gaming PLUS is here to support the very latest 11th Generation Intel processors; bolstered with an arsenal of top-shelf modern features like; the latest 4th gen PCI-e and M.2, lightning 20G USB connectivity, Audio/Core & DDR4 Memory boosts, a premium thermal design with an enlarged heatsink and high quality thermal pads. 3x onboard M.2 Shield Frozr to give you controlled high performance and a non-stop gaming experience. Networking connectivity is controlled by a speedy onboard 2.5G LAN, perfect for both multimedia and professional usage The Z590 Gaming PLUS combines powerful aesthetics with premium performance and high-grade protection to bring you an immersive gaming experience, incredible product longevity and everything you need to squeeze every ounce of performance from your CPU, join the next generation with MSI Z590 Gaming PLUS.
Intel Z590 Chipset
LGA 1200 CPU Socket
10th & 11th Gen Intel Compatible CPUs
ATX Form Factor

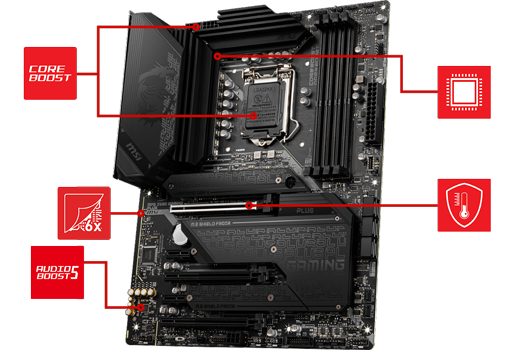

Special Features of the Z590 Gaming PLUS
Combining 2x 8 pin power connectors and premium layout design, that is ready for unleashing the maximum performance.
Highest quality component digital power IC makes sure your system runs smoothly under the most extreme conditions.
6 layer PCB provides higher performance and long-lasting system stability without any compromise.
Protecting VGA cards against bending and EMI for better performance, stability and strength.
Isolated audio with a high quality audio processor & amp for the most immersive gaming experience.

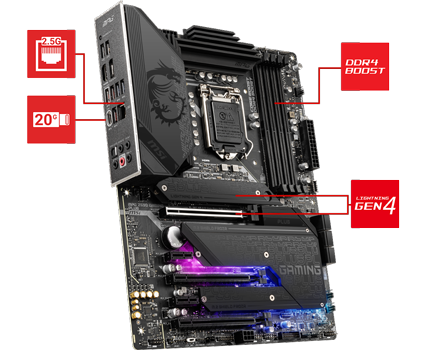

Next Generation Connectivity with MSI
2.5G NETWORK SOLUTION
Featuring premium 2.5G LAN with LAN manager delivers better network experience.
LIGHTNING USB 20G
Built-in USB 3.2 Gen 2x2 port, offers the 20Gbps transmission speed, 4X faster than USB 3.2 Gen 1.
The Fully isolated DIMM slots to deliver pure data signals for the best gaming and overclocking performance.
LIGHTNING GEN 4 SOLUTION
The latest Gen 4 PCI-E and M.2 solution with up to 64GB/s bandwidth for maximum transfer speed.

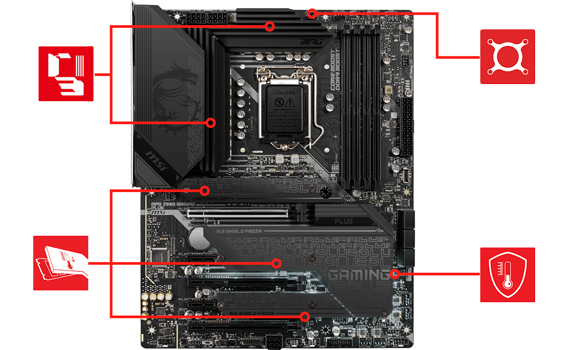

Premium Thermal Solution
PREMIUM THERMAL DESIGN
Heavy plated mosfet heatsink with heat-pipe, high quality 7W/mK mosfet thermal pads and extra choke thermal pads ensure all cores running in high performcance.
M.2 SHIELD FROZR
Strengthened built-in M.2 thermal solution. Keeps M.2 SSDs safe while preventing throttling, making them run faster.
PUMP FAN SUPPORT
Control watercooling pump speeds for best flow and noise control.
ENLARGED CHIPSET HEATSINK
Larger heatsink for chipset ensures better heat dissipation and cooling effects.
Light Up Your Ecosystem
MSI MYSTIC LIGHT
Personalise your PC with 16.8 million colors and 29 effects through Mystic Light RGB LED. Controlled in one click with the Mystic Light APP or a mobile device.

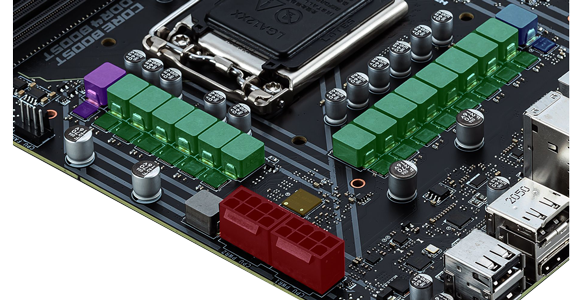

Unbelievable Power Solution
TIME TO GET AGGRESSIVE
Unleash and sustain maximum performance with an aggressive VRM design built with a total of 14 Duet Rail Power System(DRPS). Combining 2x 8-pin power connectors and exclusive Core Boost technology, MPG series motherboards are ready to sustain heavy daily work.
1 PHASE GT Power
2X 8PIN CPU Power Connectors
1 PHASES A Power
14 DUET RAIL CPU Power
DIGITAL PWM IC
The Future is Now

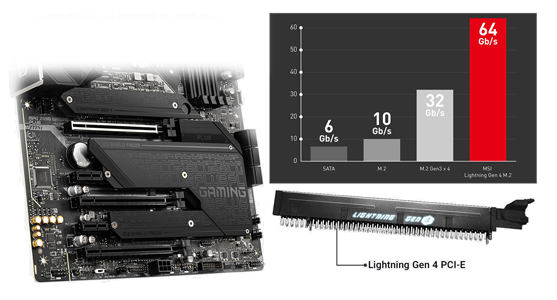

LIGHTNING GEN 4 SOLUTION
The latest Gen4 PCI-E and M.2 solution with up to 64GB/s bandwidth for maximum transfer speed. PCIe 4.0 maintains both backward and forward compatibility with older and newer specifications.
Experience Core Boost
FASTER AND UNDISTORTED CURRENT DELIVERY
Core Boost technology combines MSI’s premium layout and digital power design which allows for faster and undistorted current delivery to the CPU at pin-point precision. Not only supporting multi-core CPU, also creating the perfect conditions for your CPU.
Unmatched Memory Performance
ADVANCED PERFORMANCE WITH DDR4 BOOST
MSI motherboards are crammed with features to fuel your system's memory with more speed, higher overclockability and increased stability. The technical enhancements of DDR4 Boost allow for more stability at higher memory speeds compared to other brands. Enjoy the additional boost in operational performance or when working with large video and photography files. MSI conducts thorough memory testing with the most popular memory brands under extreme conditions to ensure your system runs stable no matter what.
Protecting your PCIe Slots
FORTIFY YOUR SYSTEM WITH PCI-E STEEL ARMOR
MPG Z590 GAMING PLUS supports multiple GPU solutions. Optimal PCI-Express slot placement allows for better fitting and airflow. That way, you can enjoy the best graphics at the highest framerate jumping from your screen when running an AMD® CrossFire™ setup Steel Armor has more solder points on the PCB for more strength and protects the PCI-Express signals against electromagnetic interference for a stutter-free user experience.
Overclock Your System in One Second!
MSI GAME BOOST
Need more power from your CPU and memory to get more FPS? MSI Game Boost enables one-second overclocking, giving you the performance boost you need. Simply turn the dial or use the Gaming App and your PC gets another adrenalin shot!
Professional Gaming Audio
AMPLIFY YOUR GAME WITH AUDIO BOOST 5
Like a dedicated sound card, Audio Boost 5 offers a HD audio processor, dedicated amplifier and high quality audio capacitors all physically isolated from the rest of the motherboard circuitry to ensure the purest audio signal to locate enemies with pin-point accuracy. Powered by ALC 4080 audio processor, this motherboards supports 120dB SNR, 32-bit/384kHz and DSD Super Audio CD playback & recording.
A Fully Comprehensive I/O
|Product Type||Motherboard - ATX|
|Chipset Type||Intel Z590|
|Processor Socket||LGA1200 Socket|
|Max Processors Qty||1|
|Compatible Processors||(supports 11th and 10th Generation Intel Core / Pentium Gold / Celeron)|
|Max Size||128 GB|
|Bus Clock||2133 MHz, 2666 MHz, 2933 MHz, 4000 MHz (O.C.), 4400 MHz (O.C.), 4700 MHz (O.C.), 3200 MHz, 5333 MHz (O.C.)|
|Supported RAM Integrity Check||Non-ECC|
|Registered or Buffered||Unbuffered|
|Features||Dual channel memory architecture, Intel Extreme Memory Profiles (XMP)|
|Type||HD Audio (8-channel)|
|Audio Codec||Realtek ALC4080|
|Compliant Standards||High Definition Audio|
|Network Controller||Intel I225-V|
|Network Interfaces||2.5 Gigabit Ethernet|
Expansion / Connectivity
|Expansion Slots||1 x CPU ¦ 4 x DIMM 288-pin ¦ 1 x PCIe 4.0 x16 (PCIe 4.0 x16 mode (11th Gen Intel CPUs); PCIe 3.0 x16 mode (10th Gen Intel CPUs)) ¦ 2 x PCIe 3.0 x16 (x4 mode) ¦ 2 x PCIe 3.0 x1|
|Storage Interfaces||SATA-600 -connectors: 6 x 7pin Serial ATA - RAID 0 / RAID 1 / RAID 10 / RAID 5 ¦ SATA-600 / PCIe 3.0 -connectors: 2 x M.2 - RAID 0 / RAID 1 / RAID 5 ¦ PCIe 4.0 -connectors: 1 x M.2 - RAID 0 / RAID 1 / RAID 5|
|RAID Features||Intel Smart Response Technology|
|Interfaces||1 x HDMI ¦ 1 x DisplayPort ¦ 2 x USB 3.2 Gen 1 ¦ 2 x USB 2.0 ¦ 1 x LAN (2.5Gigabit Ethernet) ¦ 1 x USB-C Gen2x2 ¦ 1 x audio line-out - mini-jack ¦ 1 x microphone - mini-jack ¦ 1 x audio line-out (center/subwoofer) - mini-jack ¦ 1 x audio line-out (rear) - mini-jack ¦ 1 x audio line-in - mini-jack ¦ 1 x TOSLINK ¦ 3 x USB 3.2 Gen 2|
|Internal Interfaces||4 x USB 2.0 - header ¦ 2 x USB 3.2 Gen 1 - header ¦ 1 x USB-C Gen2 - header ¦ 1 x audio - header|
|Power Connectors||24-pin main power connector, 2 x 8-pin ATX12V connectors, 6-pin PCI Express power connector|
|Hardware Features||AMD CrossFireX technology support, 6 Layer PCB, MSI Mystic Light, Game Boost, Double ESD Protection, Intel Optane Memory Ready, 2oz Copper PCB, M.2 Shield FROZR, pre-mounted I/O shield, MSI Core Boost, MSI PCIe Steel Slot, MSI Audio Boost 5, 14+1+1 Phase Power Design|
|Included Accessories||Case badge, cable labels, 3 x M.2 screws, screwdriver, 1 to 2 RGB LED extension Y cable, 3 x standoff for M.2 socket, USB drive, cleaning brush, MPG stickers|
|Cables Included||2 x Serial ATA cable|
