MSI X570S CARBON MAX WIFI 3rd Gen Ryzen ATX MPG Series Motherboard
A STEP INTO THE FUTURE
Take a step into the future with The MSI X570S CARBON MAX Wifi, here to support the very latest AMD Ryzen processors; bolstered with an arsenal of top-shelf modern features like; the latest 4th gen PCI-e and M.2 technologies, Type-C connectivity, DDR4 Memory boosts, a premium thermal design including aluminium cover, VRM heatpipes and MOSFET baseplate Plus onboard M.2 Shield Frozr and incredible Wi-Fi 6e technology. The MSI X570S motherboards have what it takes to push the boundaries of performance into unknown territories, so buckle up and get ready for the ride of your life.
AMD X570S Chipset
AM4 CPU Socket
3rd Gen AMD Ryzen™ Ready Compatible Processors
ATX Form Factor
Special Features of the X570S Carbon MAX WIFI
CORE BOOST TECHNOLOGY
MSI's premium layout design, is ready to unleash maximum performance.
DIGITAL PWM
An aggressive digital VRM power design with digital PWM IC and 14 Duet Rail CPU Power System with 75A Smart Power Stage, make sure your system runs smoothly under the most extreme conditions
6 LAYER PCB
6 layer PCB provides higher performance and long-lasting system stability without any compromise.
PCIE STEEL ARMOR
Protecting VGA cards against bending and electromagnetic interference for better performance, stability and longevity.
2OZ THICKENED COPPER PCB
An enhanced PCB design improves heat dissipation and performance reliability.
Premium Thermal Solution
PREMIUM THERMAL DESIGN

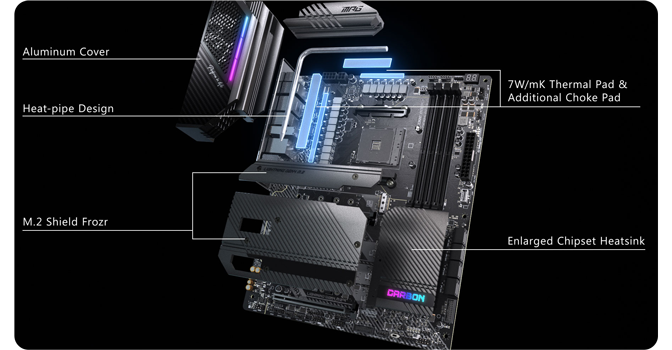

Heavy plated MOSFET heatsink with heat-pipe, high quality 7W/mK MOSFET thermal pads and extra choke thermal pads ensure all cores run at their highest performcance.
PUMP FAN SUPPORT
Control watercooling pump speeds for best flow and noise control.
SILENT COOLING
MSI replaced the PCH fan with enlarged heatsink design to reduce dust and noise as well as maintain high heat dissipation efficiency.
M.2 SHIELD FROZR
Updated built-in M.2 thermal solution. Keeps M.2 SSDs safe while preventing throttling, Allowing them to run faster.
Next Generation Connectivity
INTEL WI-FI 6
EThe latest wireless solution supports MU-MIMO and BSS color technology, delivering speeds up to 2400Mbps.
DDR4 BOOST
The Fully isolated DIMM slots to deliver pure data signals for the best gaming and overclocking performance.
LIGHTNING GEN 4 SOLUTION
The latest Gen 4 PCI-E and M.2 solution with up to 64GB/s bandwidth for maximum transfer speed.
2.5G PLUS GIGABIT LAN
Featuring 2.5G, Gigabit LAN with LAN manager delivers better network experience.
Aggresive Power Design
8+4 PIN CPU Power Connectors
14 PHASE
Duet Rail CPU Power System
2 PHASES
SOC Power
DIGITAL PWM IC
14 + 2 DUET RAIL POWER SYSTEM

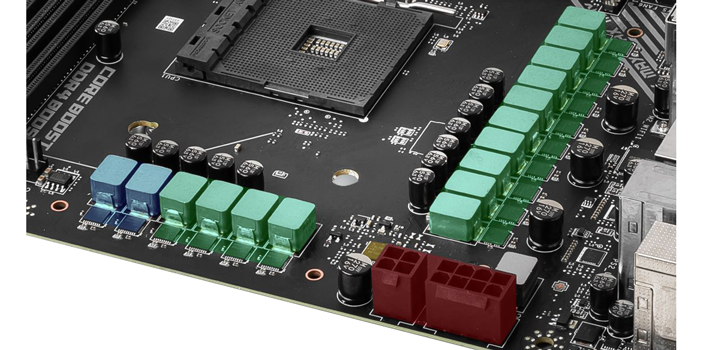

Unleash and sustain maximum performance with an aggressive VRM design built with a total of 14 Duet Rail Power System(DRPS). Combining 8+4-pin power connectors and exclusive Core Boost technology, MPG series motherboard is ready to sustain heavy daily work.
Protect your Sensitive Components During Installation and Beyond
IMPECCABLE THERMAL DESIGN
With newer processors housing more cores, thermal and power design becomes for important to ensure temperatures remain stable. MSI have incorporated extended PWM heatsinks, heatpipes and enhanced circuit design to ensure even high-end CPUs run at full capacity with MSI motherboards.
Experience Core Boost
FASTER AND UNDISTORTED CURRENT DELIVERY
Core Boost technology combines MSI’s premium layout and digital power design which allows for faster and undistorted current delivery to the CPU at pin-point precision. Not only supporting multi-core CPUs, but also creating the perfect conditions for CPU overclocking allowing you to always get the most from your 3rd generation AMD Ryzen Processor.
Give yourself a Lightning Fast Experience
LIGHTNING GEN 4 PCI-E

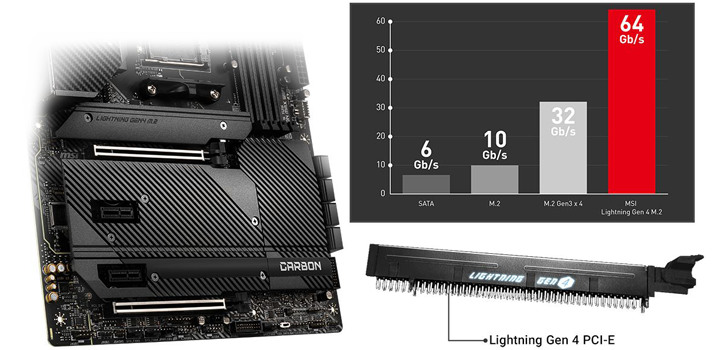

MSI lightning Gen 4 PCI-E is the latest and the fastest PCI-E data transfer solution with 64GB/s of unidirectional transfer bandwidth that has doubled compared to its previous generation. PCIe 4.0 maintains both backward and forward compatibility with older and newer specifications. Optimised by steel armor design and server grade PCB, you can enjoy next-gen devices without any compromise.
Fast and Future Ready Storage
QUADRUPLE M.2
The MSI X570S Carbon Max features onboard quadruple M.2 connectors for maximum storage performance. The Industry leading design maximises bandwidth to fully utilise high-end storage devices, providing multiple configurations for demanding gamers and power users.
Unmatched Memory Performance
ADVANCED PERFORMANCE WITH DDR4 BOOST
MSI motherboards are crammed with features to fuel your system's memory with more speed, higher overclockability and increased stability. The technical enhancements of DDR4 Boost allow for more stability at higher memory speeds when compared to other brands. MSI conducts thorough memory testing with the most popular memory brands under extreme conditions to ensure your system runs stable no matter what and with optimised memory traces you don't need to worry about your system crashing under load!
Protecting your PCIe Slots
FORTIFY YOUR SYSTEM WITH PCI-E STEEL ARMOR
MPG X570S CARBON MAX WIFI supports multiple GPU solutions. Optimal PCI-Express slot placement allows for better fitting and airflow. That way, you can enjoy the best graphics at the highest framerate jumping from your screen when running an AMD® CrossFire™ setup Steel Armor has more solder points on the PCB for more strength and protects the PCI-Express signals against electromagnetic interference for a stutter-free user experience.
Incredible Connectivity
WI-FI 6E & BLUETOOTH
Use your LAN port for online gaming while using Wi-Fi for other online applications. The Wi-Fi 6E adopts latest OFDMA, two-way MU-MIMO technologies and 6GHz band, delivering wireless transmission speeds up to 2.4Gbps.
Professional Gaming Audio
AMPLIFY YOUR GAME WITH AUDIO BOOST
Like a dedicated sound card, Audio Boost 5 offers a HD audio processor, dedicated amplifier and high quality audio capacitors all physically isolated from the rest of the motherboard circuitry to ensure the purest audio signal to locate enemies with pin-point accuracy. Powered by ALC 4080 audio processor, this motherboards supports 120dB SNR, 32-bit/384kHz and DSD Super Audio CD playback & recording.
Connections at your Fingertips
Miscellaneous |
|
|---|---|
| Software Included | Drivers & Utilities |
| Width | 30.5 cm |
| Depth | 24.4 cm |
| Included Accessories | External antenna, case badge, cable labels, thermistor cable, 4 x M.2 screws, screwdriver, 1 to 2 RGB LED extension Y cable, CORSAIR RGB LED extension cable, Rainbow RGB LED extension cable, USB drive, 4 x standoff for M.2 socket, cleaning brush, MPG stickers |
| Cables Included | 2 x Serial ATA cable |
General |
|
| Product Type | Motherboard - ATX |
| Chipset Type | AMD X570 |
| Processor Socket | Socket AM4 |
| Max Processors Qty | 1 |
| Compatible Processors | Ryzen (supports Ryzen 2000 Series/ 2000 G-Series/ 3000 Series/ 3000 G-Series/ 4000 G-Series/ 5000 Series/ 5000 G-Series) |
Supported RAM |
|
| Max Size | 128 GB |
| Technology | DDR4 |
| Bus Clock | 2400 MHz, 1866 MHz, 2133 MHz, 2800 MHz, 3000 MHz, 2666 MHz, 2933 MHz, 3466 MHz (O.C.), 3733 MHz (O.C.), 3600 MHz (O.C.), 3866 MHz (O.C.), 4000 MHz (O.C.), 4133 MHz (O.C.), 4400 MHz (O.C.), 4266 MHz (O.C.), 4600 MHz (O.C.), 4533 MHz (O.C.), 3200 MHz, 3066 MHz, 4733 MHz (O.C.), 4866 MHz (O.C.), 5000 MHz (O.C.), 5200 MHz (O.C.), 5100 MHz (O.C.), 5300 MHz (O.C.) |
| Supported RAM Integrity Check | Non-ECC |
| Registered or Buffered | Unbuffered |
| Features | Dual channel memory architecture, A-XMP support |
Audio |
|
| Type | HD Audio (8-channel) |
| Audio Codec | Realtek ALC4080 |
| Compliant Standards | High Definition Audio |
LAN |
|
| Network Controller | Realtek RTL8125B / Intel AX210 |
| Network Interfaces | 2.5 Gigabit Ethernet, 802.11a/b/g/n/ac/ax, Bluetooth 5.2 |
Expansion / Connectivity |
|
| Expansion Slots | 1 x CPU ¦ 4 x DIMM 288-pin ¦ 1 x PCIe 4.0 x16 (x8 mode (with AMD Ryzen 2000 G-Series / 3000 G-Series)) ¦ 1 x PCIe 4.0 x16 (x4 mode) ¦ 2 x PCIe 3.0 x1 |
| Storage Interfaces | SATA-600 -connectors: 8 x 7pin Serial ATA - RAID 0 / RAID 1 / RAID 10 ¦ SATA-600 / PCIe 4.0 -connectors: 3 x M.2 ¦ PCIe 4.0 -connectors: 1 x M.2 |
| Interfaces | 1 x LAN (2.5Gigabit Ethernet) ¦ 1 x audio line-in - mini-jack ¦ 1 x audio line-out - mini-jack ¦ 1 x microphone - mini-jack ¦ 1 x TOSLINK ¦ 4 x USB 3.2 Gen 1 ¦ 3 x USB 3.2 Gen 2 ¦ 1 x audio line-out (center/subwoofer) - mini-jack ¦ 1 x audio line-out (rear) - mini-jack ¦ 1 x USB-C Gen2 ¦ 1 x PS/2 keyboard / mouse ¦ 2 x USB 2.0 ¦ 1 x HDMI |
| Internal Interfaces | 4 x USB 2.0 - header ¦ 4 x USB 3.2 Gen 1 - header ¦ 1 x USB-C Gen2 - header ¦ 1 x audio - header |
| Power Connectors | 4-pin ATX12V connector, 24-pin main power connector, 8-pin ATX12V connector |
Features |
|
| BIOS Features | MSI ClickBIOS 5 |
| Hardware Features | AMD CrossFireX technology support, 6 Layer PCB, MSI Mystic Light, MSI Steel Armor, Game Boost, Double ESD Protection, 2oz Copper PCB, M.2 Shield FROZR, pre-mounted I/O shield, MSI Core Boost, 14+2 Phase Power Design, MSI Audio Boost 5 |
