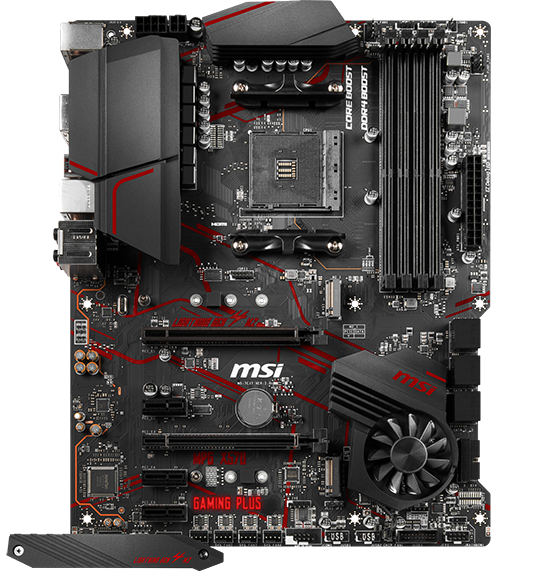

MSI MPG X570 Gaming Plus with Red Gaming DNA for AMD CPU's
SATISFYING GAMERS WITH WHAT THEY REALLY NEED
The X570 Gaming Plus by MSI is a great read and black motherboard utilizing the AMD x570 chipset which offers a wealth of features like colourful customization with MSI Mystic Light RGB. The Frozr heatsink is designed with the patented fan and double ball bearings to enhance performance. PCIe 4.0 in conjunction with lightning Gen4 M.2 with shield Frozr provide a lightning fast gaming experience. Mystic light extension supports both RGB and Rainbow LED strips for you to experience 16.8 million colours / 29 effects controlled in one click. New Dragon Centre software which integrates all MSI tools like GAME MODE, VOICE BOOST, LIVE UPDATE with user friendly user interface.
Please note: Supports 2nd and 3rd Gen AMD Ryzen™ / Ryzen™ with Radeon™ Vega Graphics Desktop Processors for AM4 socket
AMD X570 Chipset
AM4 CPU Socket
AMD 2nd/3rd Gen Ryzen Compatible CPU
ATX Form Factor
Generation 4 Solution with M.2 Shield FROZR
FASTER DATA TRANSFER FOR M.2 DEVICES
The latest Gen4 PCI-E and M.2 solution with up to 64GB/s bandwidth for maximum transfer speed. PCIe 4.0 maintains both backward and forward compatibility with older and newer specifications. World’s fastest SSDs can start to lower performance when getting hot. Part of the motherboards heatsink design, M.2 Shield FROZR is the next generation M.2 Thermal solution avoiding this by offering the best thermal protection to make sure the SSD maintains maximum performance.

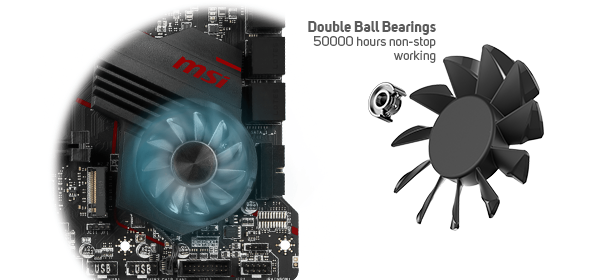

FROZR Heatsink Design
PATENTED DESIGN PROVIDES BETTER AIRFLOW
Higher performance generates more heat. Thermal solution is very important to X570 chipset which featured latest Gen4 bandwidth. MSI motherboards featured the patented fan design to provide best performance for enthusiast gamers and prosumers. The MSI extended PWM heatsink and enhanced circuit design ensures even high-end CPU'S to run in full speed with MSI motherboards ensuring you get the best out of your system.
Personalize Your Gaming Rig with Mystic Light
MILLIONS OF MARVELOUS COLORS, GREAT SELECTION OF EFFECTS
Personalize your PC with 16.8 million colors and 29 effects through Mystic Light RGB LED. Controlled in one click with the Mystic Light APP or a mobile device. With the convenience of Mystic Light Sync, you can control RGB LED solutions from other brands, such as CPU coolers, keyboards and mice or RGB system fans.
Experience Core Boost
FASTER AND UNDISTORTED CURRENT DELIVERY
Core Boost technology combines MSI’s premium layout and full digital power design which allows for faster and undistorted current delivery to the CPU at pin-point precision. Not only supporting multi-core CPU, also creating the perfect conditions for your CPU.MSI X570 motherboards are optimized to maximize the performance on the AMD® Ryzen™ 3000 series processors. Choose MSI and unleash the full potential of your system through optimized PCB and power delivery design with load line calibration.
Perform Tasks Instantly with Gaming Hotkey
TOTAL FREEDOM, MAXIMUM EASE
Gaming hotkey lets you simply assign functions to any key whether to launch your favorite games, load profiles or do real-time overclocking with the push of a single button. The possibilities are endless! Easily program your most-used commands and execute them with a single keystroke. You can choose any key you want, so choose wisely. Launch your favorite games with a single button.
Overclock Your System in One Second!
MSI GAME BOOST
Need more power from your CPU and memory to get more FPS? MSI Game Boost enables one-second overclocking, giving you the performance boost you need. Simply turn the dial or use the Gaming App and your PC gets another adrenalin shot!

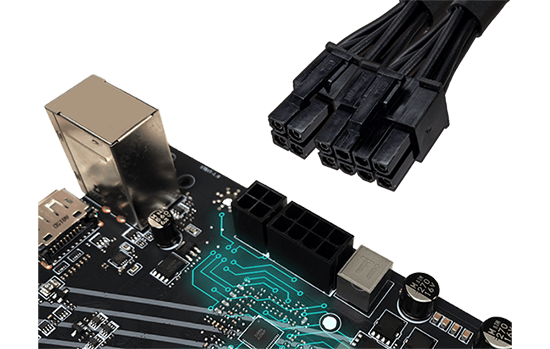

Extra Power for Extreme Overclocking
PUSH Y0UR SYSTEM TO THE LIMITS
8+4 pin connectors delivering adequate power supply for multi-core CPU, unleash the ultimate performance with the most reliable motherboard for best gaming experience and extreme overclocking.

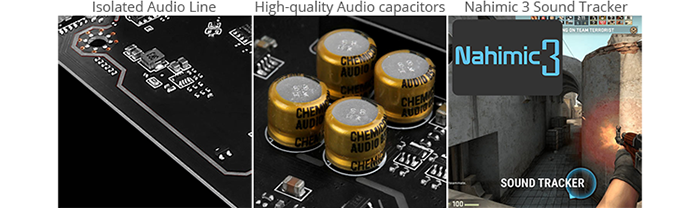

Amplify your Game with Audio Boost 4
POWERED BY NAHIMIC
Like a dedicated sound card Audio Boost 4, powered by Nahimic, offers a HD audio processor, dedicated amplifier and high quality audio capacitors, all physically isolated from the rest of the motherboard circuitry to ensure the purest audio signal to locate enemies with pin-point accuracy.
Unmatched Memory Performance
ADVANCED PERFORMANCE WITH DDR4 BOOST
MSI motherboards are crammed with features to fuel your system's memory with more speed, higher overclockability and increased stability. The technical enhancements of DDR4 Boost allow for more stability at higher memory speeds compared to other brands. Enjoy the additional boost in operational performance or when working with large video and photography files. MSI conducts thorough memory testing with the most popular memory brands under extreme conditions to ensure your system runs stable no matter what.
Immerse Yourself into Virtual Worlds
COMPLETE YOUR IMMERSION
Integrating the very best of cutting edge technologies on MSI hardware provides a smooth Mixed Reality, Augmented Reality and Virtual Reality ride. Through joint efforts with major VR brands, combined with unique MSI features to optimize VR, MSI brings gamers and professionals a vivid and realistic experience in which content truly comes alive.
Server Grade Quality for your Motherboard
SERVER GRADE PCB OFFERS UP TO THREE TIMES HEAT RESISTANCE
To fully support the latest PCI-E Gen 4 solution which features twice the transfer speed and bandwidth, MSI X570 motherboards adopt server grade PCB that provide reliable and long-lasting system performance for the lengthiest of gaming sessions, prevents PCB bending by stronger construction for the system foundation and reduces up to 30% signal loss for the better performance.
A New Way to Control your Cooling
MSI FROZR Heatsink design combines the power of MSI’s exclusive ZERO FROZR and AI tuning technology to auto-adjust fan speed according to the chipset’s temperature. You can also select from one of three modes (Boost / Balance / Silent) mode with your according to your preferences via Dragon center or MSI UEFI BIOS and enjoy the best performance without compromise.
Features of the X570 Gaming Plus
CORE BOOST TECHNOLOGY
Combining 8+4 pin power connectors and premium layout design, ready for unleashing the maximum performance.
M.2 SHIELD FROZR
Strengthened built-in M.2 thermal solution. Keeps M.2 SSDs safe while preventing throttling, making them run faster.
Server-grade PCB provides higher PCIe 4.0 performance and long-lasting system stability without any compromise.
IR DIGITAL PWM
Highest quality component IR digital power makes sure your system runs smoothly under the most extreme conditions.
ZERO FROZR TECHNOLOGY
AI tuning system that auto-adjust fan speed by chipset temperature and eliminates fan noise by stopping the fans.
Designed with a patented fan and double ball bearings to provide the best performance for you.
AMD TURBO USB
Featuring the TURBO USB 3.2 GEN2, with reversible Type-C connector.
The fully isolated DDR circuit to deliver pure data signals for the best gaming and overclocking performance.
The latest Gen4 PCI-E and M.2 solution with up to 64GB/s bandwidth for maximum transfer speed.
PCIE STEEL ARMOR
Protecting VGA cards against bending and EMI for better performance, stability and strength.
|Bus Clock||2400 MHz, 1866 MHz, 2133 MHz, 2800 MHz, 3000 MHz, 2667 MHz, 2933 MHz, 3466 MHz (O.C.), 3733 MHz (O.C.), 3600 MHz (O.C.), 3866 MHz (O.C.), 4000 MHz (O.C.), 4133 MHz (O.C.), 4400 MHz (O.C.), 4266 MHz (O.C.), 3200 MHz, 3066 MHz|
|Supported RAM Integrity Check||Non-ECC, ECC (operate in non-ECC mode)|
|Max Size||128 GB|
|Registered or Buffered||Unbuffered|
|Features||Dual channel memory architecture, supported ECC modules operate in non-ECC mode, A-XMP support|
Expansion / Connectivity
|Storage Interfaces||SATA-600 -connectors: 4 x 7pin Serial ATA - RAID 0 / RAID 1 / RAID 10 ¦ SATA-600 / PCIe 3.0 -connectors: 1 x M.2 ¦ PCIe 4.0 -connectors: 1 x M.2 ¦ ASMedia ASM1061: SATA-600 -connectors: 2 x 7pin Serial ATA|
|Expansion Slots||1 x CPU ¦ 4 x DIMM 288-pin ¦ 1 x PCIe 4.0 x16 (PCIe 4.0 x16 mode (with 3rd Generation Ryzen CPU); PCIe 3.0 x16 mode (with 2nd Generation Ryzen CPU); PCIe 3.0 x8 mode (with Ryzen CPU with Radeon Vega Graphics / 2nd Generation Ryzen CPU with Radeon Graphics)) ¦ 1 x PCIe 4.0 x16 (x4 mode) ¦ 3 x PCIe 3.0 x1|
|Interfaces||1 x LAN (Gigabit Ethernet) ¦ 1 x audio line-in - mini-jack ¦ 1 x audio line-out - mini-jack ¦ 1 x microphone - mini-jack ¦ 1 x TOSLINK ¦ 4 x USB 3.2 Gen 1 ¦ 1 x USB 3.2 Gen 2 ¦ 1 x audio line-out (center/subwoofer) - mini-jack ¦ 1 x audio line-out (rear) - mini-jack ¦ 1 x USB-C Gen2 ¦ 1 x PS/2 keyboard / mouse ¦ 2 x USB 2.0 ¦ 1 x HDMI|
|Internal Interfaces||4 x USB 2.0 - header ¦ 4 x USB 3.2 Gen 1 - header ¦ 1 x serial - header ¦ 1 x audio - header|
|Power Connectors||4-pin ATX12V connector, 24-pin main power connector, 8-pin ATX12V connector|
|Service & Support||Limited warranty - 1 year|
|Product Type||Motherboard - ATX|
|Chipset Type||AMD X570|
|Processor Socket||Socket AM4|
|Max Processors Qty||1|
|Compatible Processors||Ryzen (supports 2nd and 3rd Generation Ryzen / 1st and 2nd Generation Ryzen with Radeon Vega Graphics)|
|Max Allocated RAM Size||2 GB|
|Type||HD Audio (8-channel)|
|Audio Codec||Realtek ALC1220|
|Compliant Standards||High Definition Audio|
|Network Controller||Realtek RTL8111H|
|Network Interfaces||Gigabit Ethernet|
|Hardware Features||AMD CrossFireX technology support, MSI Mystic Light, Game Boost, MSI Audio Boost 4, MSI Core Boost, MSI PCIe Steel Slot, Extended Heatsink Design, Zero Frozr technology, MSI Frozr Heatsink Design, AMD Turbo USB 3.2 Gen 2|
|Included Accessories||Case badge, I/O back cover, M.2 Shield Frozr|
|Cables Included||2 x Serial ATA cable|
|Software Included||Drivers & Utilities, MSI Dragon Center|
