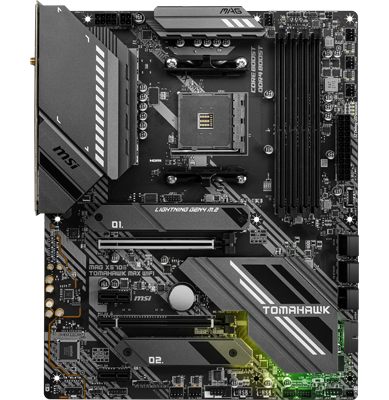

MSI X570S TOMAHAWK MAX 3rd Gen Ryzen ATX MAG Series Motherboard
CONQUER THE BATTLEFIELD WITH THIS ARSENAL GAMING MOTHERBOARD
Take a step into the future with The MSI X570S TOMAHAWK MAX WI-FI, here to support the very latest AMD Ryzen processors; bolstered with an arsenal of top-shelf modern features like; the latest 4th gen PCI-e and M.2 technologies, Type-C connectivity, DDR4 Memory boosts, a premium thermal design with extended heatsinks, onboard M.2 Shield Frozr and incredible Wi-Fi 6e technology. The MSI X570S motherboards have what it takes to push the boundaries of performance into unknown territories, so buckle up and get ready for the ride of your life.
AMD X570S Chipset
AM4 CPU Socket
3rd Gen AMD Ryzen™ Ready Compatible Processors
ATX Form Factor

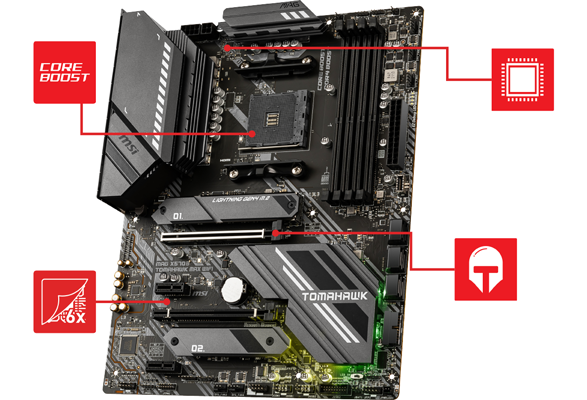

Special Features of the X570S Tomahawk MAX
CORE BOOST TECHNOLOGY
MSI's premium layout design, that is ready to unleash maximum performance.
Highest quality component digital power IC makes sure your system runs smoothly under the most extreme conditions.
6 LAYER PCB
6 layer PCB provides higher performance and long-lasting system stability without any compromise.
PCIE STEEL ARMOR
Protecting VGA cards against bending and electromagnetic interference for better performance, stability and longevity.
2OZ THICKENED COPPER PCB
An enhanced PCB design improves heat dissipation and performance reliability.

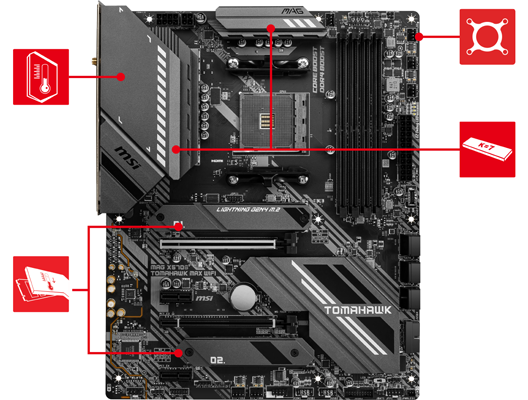

Premium Thermal Solution
7W/MK THERMAL PAD
Preminum 7W/mK thermal pad covers both the MOSFET and chokes, providing better heat transfer to the heatsink.
MSI extended PWM heatsink and enhanced circuit design ensures even high-end processors can run at full speed.
PUMP FAN SUPPORT
optimise your watercooling pump speeds for better flow and noise control.
M.2 SHIELD FROZR
Built-in M.2 thermal solution. Keeps M.2 SSDs safe while preventing throttling, helping them run faster.
Next Generation Connectivity
INTEL WI-FI 6
EThe latest wireless solution supports MU-MIMO and BSS color technology, delivering speeds up to 2400Mbps.
The Fully isolated DIMM slots to deliver pure data signals for the best gaming and overclocking performance.
LIGHTNING GEN 4 SOLUTION
The latest Gen 4 PCI-E and M.2 solution with up to 64GB/s bandwidth for maximum transfer speed.
2.5G PLUS GIGABIT LAN
Featuring 2.5G, Gigabit LAN with LAN manager delivers better network experience.
AUDIO BOOST 5
ALC4080 Codec with top quality caps for the most immersive gaming experience.
Unbelievable Power Solution

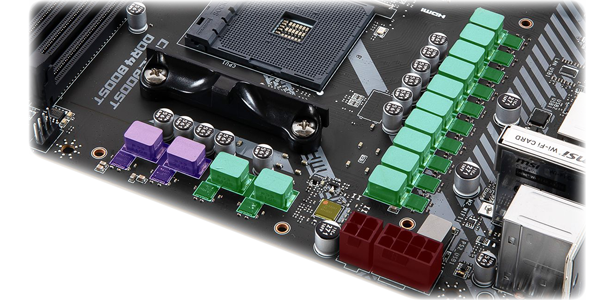

DUET RAIL POWER SYSTEM
Unleash and sustain maximum performance with an aggressive VRM design with concurrent stable power delivery. Combining 8+4 pin power connectors and exclusive Core Boost technology, MAG series motherboards are ready to sustain heavy daily work.
8+4 PIN CPU Power Connectors
Duet Rail Power System
DIGITAL PWM IC

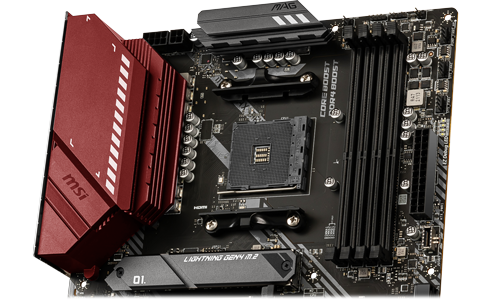

Protect your Sensitive Components During Installation and Beyond
With newer processors housing more cores, thermal and power design becomes for important to ensure temperatures remain stable. The MSI X570S Tomahawk MAX features an all-metal extended heatsink to enlarge the surface area you can also expect more efficient heat dissipation allowing even high end processors to run at full speed.
Experience Core Boost
FASTER AND UNDISTORTED CURRENT DELIVERY
Core Boost technology combines MSI’s premium layout and digital power design which allows for faster and undistorted current delivery to the CPU at pin-point precision. Not only supporting multi-core CPUs, but also creating the perfect conditions for CPU overclocking allowing you to always get the most from your 3rd generation AMD Ryzen Processor.
Give yourself a Lightning Fast Experience

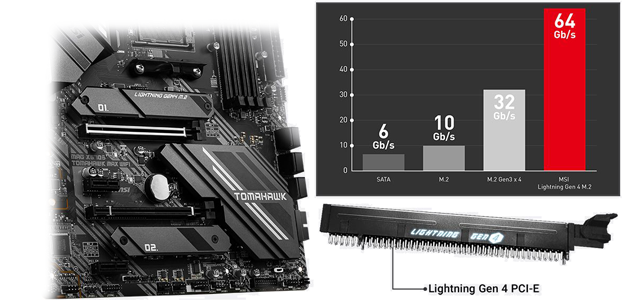

LIGHTNING GEN 4 PCI-E
MSI lightning Gen 4 PCI-E is the latest and the fastest PCI-E data transfer solution with 64GB/s of unidirectional transfer bandwidth that has doubled compared to its previous generation. PCIe 4.0 maintains both backward and forward compatibility with older and newer specifications. Optimised by steel armor design and server grade PCB, you can enjoy next-gen devices without any compromise.
Unmatched Memory Performance
ADVANCED PERFORMANCE WITH DDR4 BOOST
MSI motherboards are crammed with features to fuel your system's memory with more speed, higher overclockability and increased stability. The technical enhancements of DDR4 Boost allow for more stability at higher memory speeds when compared to other brands. MSI conducts thorough memory testing with the most popular memory brands under extreme conditions to ensure your system runs stable no matter what and with optimised memory traces you don't need to worry about your system crashing under load!
Protecting your PCIe Slots
FORTIFY YOUR SYSTEM WITH PCI-E STEEL ARMOR
MAG X570S TOMAHAWK MAX WIFI supports multiple GPU solutions. Optimal PCI-Express slot placement allows for better fitting and airflow. That way, you can enjoy the best graphics at the highest framerate jumping from your screen when running an AMD® CrossFire™ setup Steel Armor has more solder points on the PCB for more strength and protects the PCI-Express signals against electromagnetic interference for a stutter-free user experience.
WI-FI 6E & BLUETOOTH
Use your LAN port for online gaming while using Wi-Fi for other online applications. The Wi-Fi 6E adopts latest OFDMA, two-way MU-MIMO technologies and 6GHz band, delivering wireless transmission speeds up to 2.4Gbps.
Professional Gaming Audio
AMPLIFY YOUR GAME WITH AUDIO BOOST
MSI Audio Boost delivers the highest sound quality through the use of premium quality audio components. This lets you enjoy breathtaking, game-changing sound to create the most dynamic soundscapes dedicated to giving gamers true Hi-Fi sound offering a clear advantage over your opponents when gaming. Audio Boost offers a HD audio processor, dedicated amplifier and high quality audio capacitors, all physically isolated from the rest of the motherboard circuitry to ensure the purest audio signal to locate enemies with pin-point accuracy.

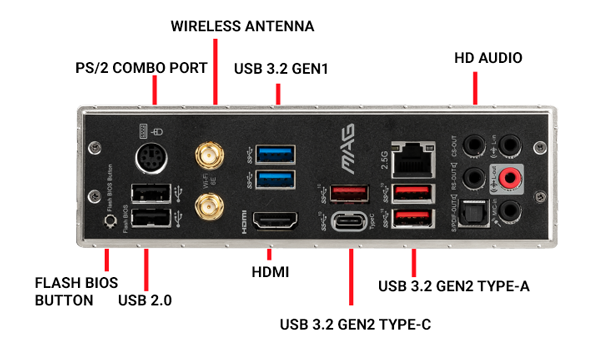

Connections at your Fingertips
|Edition||MAG X570S TOMAHAWK MAX WIFI|
|RAM Memory Support|
|Memory Channel||Dual (2)|
|Memory Type (ECC)||Non-ECC|
|Memory Type (R/U)||UDIMM (Unbuffered)|
|Memory Speed (Mhz)||
|Max. Memory Capacity||128GB (4x32GB)|
|Audio||7.1 Channel HD Audio|
|Primary GPU Interface||PCIe 4.0 (x16)|
|NVIDIA SLI Support||N/A|
|AMD CrossFire Support||Supported|
|Integrated Graphics||Requires Processor Graphics or Discrete GPU|
|On-Board Graphics Connectors||HDMI 2.1|
|RAID Support via|
|Storage Mode Support||
|Network Interface Type||
|Rear I/O Connectors||
|Board Dimensions||305 x 244 mm|
