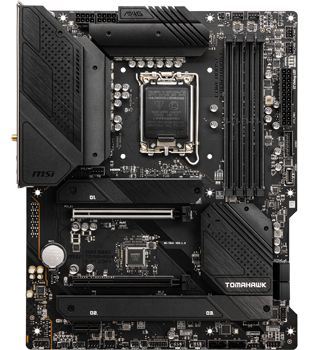

MAG B660 TOMAHAWK WIFI DDR4 Intel 12th Gen ATX Motherboard from MSI
DISCOVER BREATHTAKING PERFORMANCE
Take a step into the future. MSI have returned with the MAG B660 series motherboards here to support the very latest 12th Generation Intel processors; boasting the brand new Intel 1700 LGA. The MAG B660 TOMAHAWK WIFI DDR4 is a gaming oriented ATX motherboard constructed around the latest Intel B660 chipset that balances value with cutting-edge hardware. The B660 TOMAHAWK WIFI DDR4 features PCIe 4.0 technology, Dual Gen4 M.2 support, Core & DDR4 Memory boosts, a thorough cooling solution with extended heatsinks with thermal pads, onboard M.2 Shield Frozr, Wifi 6 support, Lightning 20G connectivity and a fully comprehensive rear I/O. The B660M TOMAHAWK WIFI DDR4 combines all of these features with incredible durability and stunning aesthetics to squeeze every ounce of performance from your new CPU. Heed the call of the next-generation with MSI.
Intel B660 Chipset
LGA 1700 CPU Socket
12th generation Intel Compatible CPUs
ATX Form Factor
Experience The Boundaries Of Modern Performance

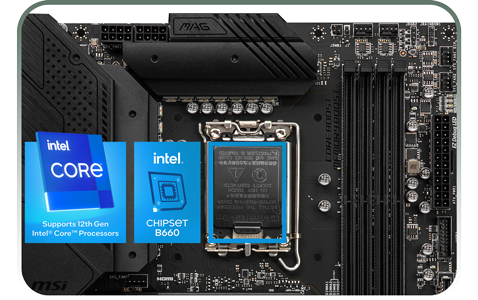

SUPPORTS INTEL CORE 12TH GEN PROCESSORS
The MAG B660 TOMAHAWK WIFI DDR4 motherboard supports 12th Gen Intel Core, Pentium Gold, and Celeron processors.

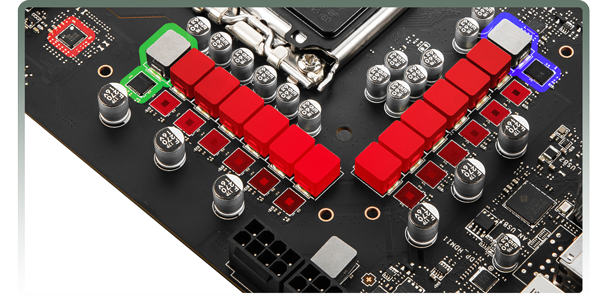

Aggressive Power Design
12 Duet Rail CPU Power System
1 PHASE GT Power
1 PHASE AUX Power
DIGITAL PWM IC
12+1+1 DUET RAIL POWER SYSTEM
With its dual 8 pin power connectors and exclusive Core Boost Technology, the MAG B660 TOMAHAWK WIFI DDR4 is able to sustain heavy CPU power loads to support system-demanding game settings.
Experience Core Boost
FASTER AND UNDISTORTED CURRENT DELIVERY
Core Boost technology combines MSI’s premium layout and digital power design which allows for faster and undistorted current delivery to the CPU.
Designed To Keep Your Components Cool
VRM COOLING
Features an extended heatsink and 7W/mK thermal pads.
PCB COOLING
Premium 6-layer printed circuit design with 2oz thickened copper improves heat dissipation & reliability.
SSD COOLING
M.2 Shield Frozr prevents thermal throttling.
SYSTEM COOLING
Connect and synchronise cooling with strategically placed pin-headers - including a dedicated pump-fan header.
The Next Generation

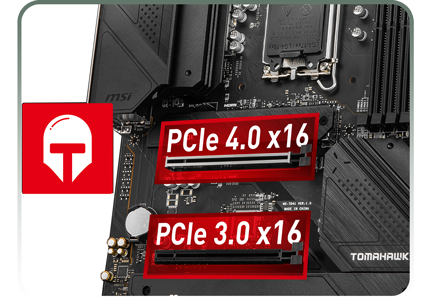

FORTIFIED PCI-E 4.0 X16
MSI lightning Gen 4 PCI-E is the latest and the fastest PCI-E data transfer solution with 64GB/s of transfer bandwidth that has doubled compared to its previous generation. PCIe 4.0 maintains both backward and forward compatibility with older and newer specifications. Optimised by steel armor design and server grade PCB, you can enjoy next-gen devices without any compromise.

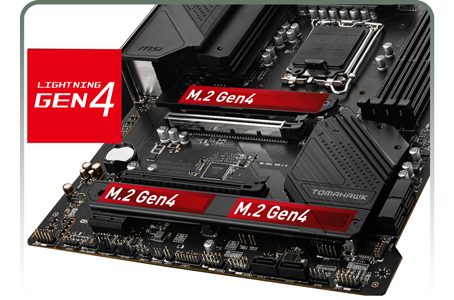

Fast and Future-Ready Storage
2 X GEN4 X4 64GB/S SLOTS
1 X GEN4 X2 32GB/S SLOT
GEN4 M.2 CONNECTORS
MSI B660 motherboards support all the latest storage standards, which allows users to connect any ultra-fast storage device. Higher efficiency makes your work easier.

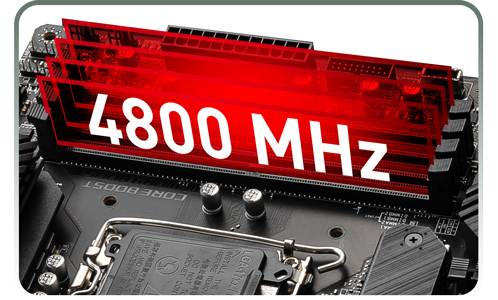

Maximise Your Memory
4 X DDR4 DUAL CHANNEL MEMORY
A fully-isolated DDR circuit delivers pure data signals for optimal gaming and overclocking performance. XMP profiles in MSI BIOS are MSI OC LAB tested and can be easily enabled with auto power settings for optimised memory speed and stability.
Take Your Network To The Next Level
2.5G LAN
A 2.5 Gbps LAN controller delivers a premium network gaming experience.
USB 3.2 GEN 2X2 TYPE-C
Connect to devices and transfer files at high bandwidth rates: 20 Gb/s.

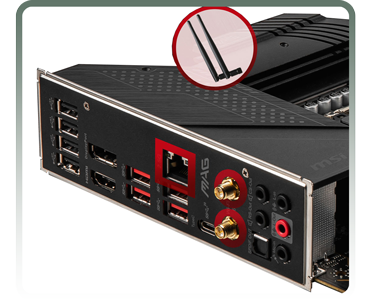

WIFI 6
Connect to devices and transfer files at high bandwidth rates: 20 Gb/s.
HD AUDIO
7.1-Channel High Definition Audio with Audio Boost & S/PDIF output.
General |
|
|---|---|
| Product Type | Motherboard - ATX |
| Chipset Type | Intel B660 |
| Processor Socket | LGA1700 Socket |
| Max Processors Qty | 1 |
| Compatible Processors | (supports 12th Generation Intel Core / Pentium / Celeron) |
Supported RAM |
|
| Max Size | 128 GB |
| Technology | DDR4 |
| Bus Clock | 2133 MHz, 2666 MHz, 3600 MHz (O.C.), 4000 MHz (O.C.), 4800 MHz (O.C.), 3200 MHz |
| Supported RAM Integrity Check | Non-ECC |
| Registered or Buffered | Unbuffered |
| Features | Dual channel memory architecture, Intel Extreme Memory Profiles (XMP) |
Audio |
|
| Type | HD Audio (8-channel) |
| Audio Codec | Realtek ALC1200P |
| Compliant Standards | High Definition Audio |
LAN |
|
| Network Controller | Realtek RTL8125B-CG |
| Network Interfaces | 2.5 Gigabit Ethernet, 802.11a/b/g/n/ac/ax, Bluetooth 5.2 |
Expansion / Connectivity |
|
| Expansion Slots | 1 x CPU ¦ 4 x DIMM 288-pin ¦ 1 x PCIe 4.0 x16 ¦ 1 x PCIe 3.0 x16 (x4 mode) ¦ 1 x PCIe 3.0 x1 |
| Storage Interfaces | SATA-600 -connectors: 4 x 7pin Serial ATA - RAID 0 / RAID 1 / RAID 10 / RAID 5 ¦ ASMedia ASM1061: SATA-600 -connectors: 2 x 7pin Serial ATA - RAID 0 / RAID 1 / RAID 10 / RAID 5 ¦ SATA-600 / PCIe 4.0 -connectors: 2 x M.2 - RAID 0 / RAID 1 / RAID 5 ¦ PCIe 4.0 -connectors: 1 x M.2 - RAID 0 / RAID 1 / RAID 5 |
| RAID Features | Intel Smart Response Technology |
| Interfaces | 1 x HDMI ¦ 1 x DisplayPort ¦ 4 x USB 3.2 Gen 2 ¦ 1 x USB-C Gen2x2 ¦ 4 x USB 2.0 ¦ 1 x audio line-out - mini-jack ¦ 1 x microphone - mini-jack ¦ 1 x audio line-in - mini-jack ¦ 1 x audio line-out (center/subwoofer) - mini-jack ¦ 1 x audio line-out (rear) - mini-jack ¦ 1 x TOSLINK ¦ 1 x LAN (2.5Gigabit Ethernet) |
| Internal Interfaces | 4 x USB 2.0 - header ¦ 2 x USB 3.2 Gen 1 - header ¦ 1 x USB-C Gen2 - header ¦ 1 x audio - header |
| Power Connectors | 24-pin main power connector, 2 x 8-pin ATX12V connectors |
Features |
|
| BIOS Features | MSI ClickBIOS 5 |
| Hardware Features | Digital PWM, AMD CrossFireX technology support, MSI Audio Boost, anti-pop function, Debug LED, MSI Mystic Light, MSI Steel Armor, Intel Optane Memory Ready, M.2 Shield FROZR, MSI Core Boost |
Miscellaneous |
|
| Included Accessories | Case badge, 3 x M.2 screws, 3 x standoff for M.2 socket, Wi-Fi aerial, MAG stickers, 2 x M.2 clips |
| Cables Included | 2 x Serial ATA cable |
| Compliant Standards | DisplayPort 1.4 |
| Width | 30.5 cm |
| Depth | 24.4 cm |
