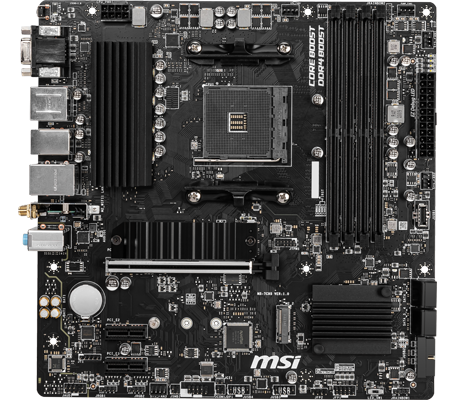

MSI B550M PRO-VDH (Wi-Fi) 3rd Generation AMD Ryzen M-ATX Motherboard
UNMATCHED EFFICIENCY WITH PRO SERIES
Introducing the all new B550M PRO-VDH (Wi-Fi) Motherboard from MSI. The MSI B550 motherboard supports the 3rd Gen AMD Ryzen processors with the addition of PCIe 4.0 technology for eye watering speeds, an Intel Wi-Fi module delivering AC speeds up to 433Mbps with lower CPU loading and a 2oz copper PCB to help with additional thermal dissipation. PRO series helps users work smarter by delivering an efficient and productive experience. Featuring stable functionality and high-quality assembly, PRO series motherboards provide not only optimized professional workflows but also less troubleshooting and longevity.
AMD B550 Chipset
AM4 CPU Socket
M-ATX Form Factor
Business Elegance with the B550M PRO VDH
CORE BOOST TECHNOLOGY
With premium layout design, that is ready for unleashing the maximum performance.
FLASH BIOS BUTTON
Simply use a USB key to flash any BIOS within seconds, without installing a CPU, memory or graphics card.
WI-FI
Delivering AC speeds up to 433Mbps with lower CPU loading and a longer lifespan
AUDIO BOOST
Reward your ears with studio grade sound quality for the most immersive gaming experience.
PCIE STEEL ARMOR
Protecting VGA cards against bending and EMI for better performance, stability and strength.
M.2 SHIELD FROZR
Strengthened built-in M.2 thermal solution. Keeps M.2 SSDs safe while preventing throttling, making them run faster.
DDR4 BOOST
The fully isolated DDR circuit to deliver pure data signals for the best performance and stability.
Experience Core Boost
FASTER AND UNDISTORTED CURRENT DELIVERY
Core Boost technology combines MSI’s premium layout and digital power design which allows for faster and undistorted current delivery to the CPU at pin-point precision. Not only supporting multi-core CPUs, but also creating the perfect conditions for CPU overclocking allowing you to always get the most from your 3rd generation AMD Ryzen Processor.

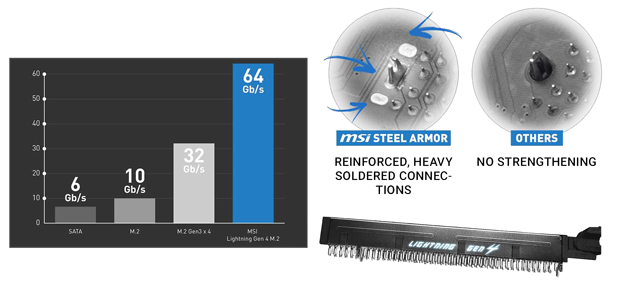

Give yourself a Lightning Fast Experience
LIGHTNING GEN 4 PCI-E
MSI lightning Gen 4 PCI-E is the latest and the fastest PCI-E data transfer solution with 64GB/s of unidirectional transfer bandwidth that has doubled compared to its previous generation. PCIe 4.0 maintains both backward and forward compatibility with older and newer specifications. Optimised by steel armor design and server grade PCB, you can enjoy next-gen devices without any compromise.
Unmatched Memory Performance
ADVANCED PERFORMANCE WITH DDR4 BOOST
MSI motherboards are crammed with features to fuel your system's memory with more speed, higher overclockability and increased stability. The technical enhancements of DDR4 Boost allow for more stability at higher memory speeds compared to other brands. Enjoy the additional boost in operational performance or when working with large video and photography files. MSI conducts thorough memory testing with the most popular memory brands under extreme conditions to ensure your system runs stable no matter what.

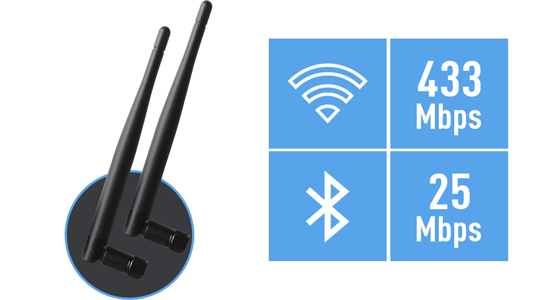

Need a Wireless Connection?
INTEL® WI-FI AC & BLUETOOTH
Use your LAN port for online gaming while using WiFi for other online applications. The Intel® Wi-Fi / Bluetooth solution delivers AC speeds up to 433Mbps.
Protecting your PCIe Slots
FORTIFY YOUR SYSTEM WITH PCI-E STEEL ARMOR
MSI PCI Express Steel Armor slots are secured to the motherboard with extra solder points and support the weight of heavy graphics cards. When every advantage in games counts, Steel Armor shields the point of contact from electromagnetic interference.
Professional Gaming Audio
AMPLIFY YOUR GAME WITH AUDIO BOOST
MSI Audio Boost delivers the highest sound quality through the use of premium quality audio components. This lets you enjoy breathtaking, game-changing sound to create the most dynamic soundscapes dedicated to giving gamers true Hi-Fi sound offering a clear advantage over your opponents when gaming. Audio Boost offers a HD audio processor, dedicated amplifier and high quality audio capacitors, all physically isolated from the rest of the motherboard circuitry to ensure the purest audio signal to locate enemies with pin-point accuracy.
General |
|
|---|---|
| Product Type | Motherboard - micro ATX |
| Chipset Type | AMD B550 |
| Processor Socket | Socket AM4 |
| Max Processors Qty | 1 |
| Compatible Processors | Ryzen (supports 3rd Generation Ryzen and New Generation Ryzen with Radeon Graphics) |
Supported RAM |
|
| Max Size | 128 GB |
| Technology | DDR4 |
| Bus Clock | 2400 MHz, 1866 MHz, 2133 MHz, 2800 MHz, 3000 MHz, 2667 MHz, 2933 MHz, 3466 MHz (O.C.), 3733 MHz (O.C.), 3600 MHz (O.C.), 3866 MHz (O.C.), 4000 MHz (O.C.), 4133 MHz (O.C.), 4400 MHz (O.C.), 4266 MHz (O.C.), 3200 MHz, 3066 MHz |
| Supported RAM Integrity Check | Non-ECC, ECC (operate in non-ECC mode) |
| Registered or Buffered | Unbuffered |
| Features | Dual channel memory architecture, supported ECC modules operate in non-ECC mode, A-XMP support |
Graphics |
|
| Max Allocated RAM Size | 16 GB |
Audio |
|
| Type | HD Audio (8-channel) |
| Audio Codec | Realtek ALC892 |
| Compliant Standards | High Definition Audio |
LAN |
|
| Network Controller | Realtek RTL8111HN / Intel Dual Band Wireless-AC 3168 |
| Network Interfaces | Bluetooth, Gigabit Ethernet, 802.11a/b/g/n/ac |
Expansion / Connectivity |
|
| Expansion Slots | 1 x CPU ¦ 4 x DIMM 288-pin ¦ 1 x PCIe 4.0 x16 ¦ 2 x PCIe 3.0 x1 |
| Storage Interfaces | SATA-600 -connectors: 4 x 7pin Serial ATA - RAID 0 / RAID 1 / RAID 10 ¦ SATA-600 / PCIe 4.0 -connectors: 1 x M.2 - RAID 0 / RAID 1 ¦ PCIe 3.0 -connectors: 1 x M.2 - RAID 0 / RAID 1 |
| Interfaces | 1 x LAN (Gigabit Ethernet) ¦ 1 x audio line-in - mini-jack ¦ 1 x audio line-out - mini-jack ¦ 1 x microphone - mini-jack ¦ 4 x USB 3.2 Gen 1 ¦ 1 x PS/2 keyboard / mouse ¦ 2 x USB 2.0 ¦ 1 x HDMI ¦ 1 x DisplayPort ¦ 1 x VGA |
| Internal Interfaces | 4 x USB 2.0 - header ¦ 2 x USB 3.2 Gen 1 - header ¦ 1 x USB-C Gen 1 - header ¦ 1 x audio - header ¦ 1 x serial - header |
| Power Connectors | 4-pin ATX12V connector, 24-pin main power connector, 8-pin ATX12V connector |
Features |
|
| Hardware Features | MSI Audio Boost, 2oz Copper PCB, M.2 Shield FROZR, MSI Core Boost, MSI PCIe Steel Slot, MSI Mystic Light Sync |
Miscellaneous |
|
| Included Accessories | 2 aerials, case badge, I/O back cover |
| Cables Included | 2 x Serial ATA cable |
| Software Included | Drivers & Utilities |
| Width | 24.4 cm |
| Depth | 24.4 cm |
