Gigabyte GeForce RTX 3070 Vision OC Ampere Graphics Card
THE CREATORS DREAM
Prepare yourself for an unforgettable experience with the Gigabyte Geforce RTX 3070 Vision OC GPU, powered by the all-new Flagship NVIDIA GeForce Ampere architecture boasting 2nd Generation RT cores and 3rd Generation Tensor Cores to bring you the biggest graphical performance leap of the modern era. Powerful GeForce RTX™ 30 VISION series accelerates your work with incredible boosts in performance. Whether you are doing video editing, 3D animation, Photography, graphic design or whatever else your creative brains can coin the 3070 Vision OC can save you a lot of time. Featuring the incredible Windforce 3x cooling system with it's 3x alternating unique bladed fans, composite heatpipes and 3D active fan technology, nothing can stop you now!
5888 Cuda Cores
1500 MHz Core Clock
1815 MHz Boost Clock
8GB GDDR6 Memory
Windforce 3x Cooling System

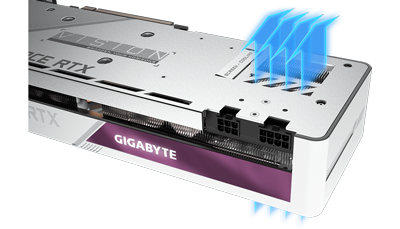

FEEL THE BREEZE
The WINDFORCE 3X cooling system features 3x80mm unique blade fans, alternate spinning, 5 composite copper heat pipes, large copper plate direct touch GPU, 3D active fan and Screen cooling, which together provide high efficiency heat dissipation. The alternate spinning fans reduce turbulence and increase air pressure of adjacent fans, whilst 3D Active fan technology provides semi-passive cooling switching off the fans if the GPU is under low load allowing for silent operation.
Longer Lifespan and Superior Airflow
UNIQUE FAN BLADES
The airflow is spilt by the triangular fan edge, and guided smoothly through the 3D stripe curve on the fan surface, whilst the Graphene nano lubricant can extend the life of the fan by up to 2.1x which is almost as long as the dual-ball bearings! oh and it's quieter too!

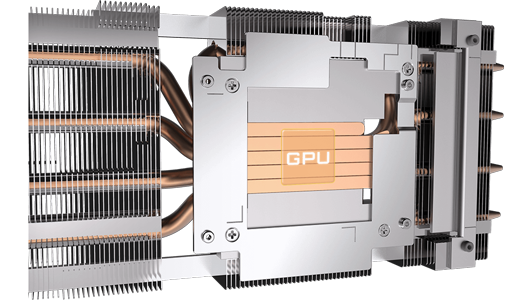

Direct Contact Heat Transfer
LARGE COPPER PLATE & HEAT-PIPE
With direct contact to the GPU and VRAM, the large copper plate combines the composite heat pipes to efficiently transfer heat generated from the interior cores to the heat sink.
Extended heatsink design allows air flow to pass through, providing better heat dissipation.

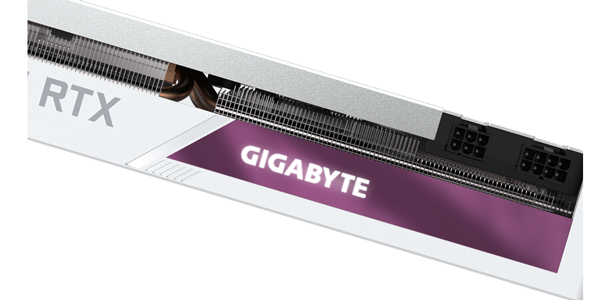

Create Ambience Inside your System
RGB FUSION 2.0
With access to 16.7M customisable colour options and multiple lighting effects you have so many choices when it comes to how to make this GPU your own, plus you can synchronise your colour scheme across other AORUS devices.
Tweak and Tune as you See Fit
AORUS ENGINEThe cutting edge intuitive interface of AORUS Engine allows you to adjust the clock speed, voltage, fan performance and power targets in real-time according to your game or applications requirements.
NVIDIA Ampere Architecture
2ND GEN RT CORES 2X THROUGHPUT
3RD GEN TENSOR CORES UP TO 2X THROUGHPUT
NEW SM2X FP32 THROUGHPUT
DLSS AI Acceleration
MAX FPS. MAX QUALITY. POWERED BY AI.
NVIDIA DLSS is groundbreaking AI rendering that boosts frame rates with uncompromised image quality using the dedicated AI processing Tensor Cores on GeForce RTX. This gives you the performance headroom to crank up settings and resolutions for an incredible visual experience. The AI revolution has arrived to gaming.
Ultimate Ray Tracing And AI
RTX. IT’S ON.
Only NVIDIA’s RTX platform includes dedicated RT Cores for ray tracing and Tensor Cores for AI that enable groundbreaking technologies at breakthrough speed. Experience today’s biggest blockbusters like never before. RTX. It’s On.
NVIDIA Reflex Dynamically Reduces System Latency
VICTORY MEASURED IN MILLISECONDS
NVIDIA Reflex delivers the ultimate competitive advantage. The lowest latency. The best responsiveness. Powered by GeForce RTX™ 30 Series GPUs and NVIDIA® G-SYNC® monitors. Acquire targets faster, react quicker, and increase aim precision through a revolutionary suite of technologies built to optimise and measure system latency for competitive games.
Create as Fast as your Imagination
UP YOUR CREATIVE GAME
Take your creative projects to a new level with GeForce RTX 30 Series GPUs. Delivering AI-acceleration in top creative apps. Backed by the NVIDIA Studio platform of dedicated drivers and exclusive tools. And built to perform in record time. Whether you’re rendering complex 3D scenes, editing 8K video, or livestreaming with the best encoding and image quality, GeForce RTX GPUs give you the performance to create your best.
Transform any Room Into your Home Studio
STREAM LIKE A BOSS
Live streamers can now level up their game even further with the new NVIDIA Broadcast app. It upgrades any room into a home broadcast studio by transforming standard webcams and microphones into smart devices through the power of AI. The Broadcast app offers three AI-powered features which are: Noise Removal, Virtual Background and Auto frame so the focus always remains on you.
DirectX Raytracing Allows Incredibly Realistic Graphic Effects
DIRECTX 12 ULTIMATE OFFERS FEATURES LIKE RAY TRACING AND VARIABLE RATE SHADING
DirectX Raytracing allows games to simulate how light works in real life, providing incredibly realistic and beautiful graphics effects like global illumination, reflections, and shadows.
NVIDIA has partnered closely with Microsoft to enable full DXR support on GeForce GPUs. GeForce RTX GPUs were designed from the start for the extreme demands of ray-tracing workloads. Specialised RT cores, found only on GeForce RTX graphics cards, provide billions of rays per second of performance, and up to 3X the frame rates with DXR games and applications. This makes ray tracing at real-time frame rates possible for the first time.
GeForce RTX 30 Series Features
8K HDR GAMING
Step up to the ultimate 4K gaming experience with the GeForce RTX and enjoy today’s biggest games in amazing detail.
The essential companion to your GeForce graphics card. Capture and share videos, screenshots, and livestreams. Keep your drivers up to date and optimize your games.
GAME READY DRIVERS
Get the highest levels of performance, and the smoothest experience possible, from the moment you start playing.
Take your VR experiences to a whole new level with the powerful new GeForce® RTX GPUs. You can count on the lowest latency and highest performance with VR.
Get smooth, tear-free gameplay at refresh rates up to 360 Hz, plus HDR and more. NVIDIA G-SYNC gaming monitors are the ultimate go-to equipment for enthusiast gamers.
Turn your screenshots into art with this powerful in-game photo mode that captures 360, HDR, and super-resolution photos.
|Chipset||NVIDIA GeForce® RTX 20 Series|
|Edition||3070 VISION OC 8G|
|Manufacturing process||8 nm|
|Cores & Clocks|
|Core Clock||1500 MHz|
|Boost Clock||1815 MHz|
|Video Memory (VRAM)|
|Memory Clock||14000 MHz|
|Memory Bus||256 Bit|
|Cooling Solution||Tri Fan (3)|
|Cooler Design||GIGABYTE Compact Custom 80mm Cooler|
|I/O & Connectivity|
|Interface||PCIe 4.0 (x16) [PCIe 3.0 Backwards Compatible]|
|GeForce VR Ready||Yes|
|Multi-Way Graphics Support||Not Supported|
|Microsoft DirectX Support||12 API|
|Max. Concurrent Displays||4 Displays|
|Maximum Digital Resolution||7680x4320 (8K UHD)|
|Maximum Analog (VGA) Resolution||N/A|
|Real-Time Ray Tracing||Yes|
|NVIDIA RT Cores||46|
|NVIDIA Tensor Cores||184|
|Power & Thermals|
|Graphics Card Power Connectors||
|Graphics Card TDP/Power|
|Minimum Recommended PSU||650 W|
|Maximum GPU Temperature||93 °C|
|Low Profile Compatible||No|
|Low Profile Support||N/A|
|Dimensions||286 x 115 x 51 (L x W x H) mm|
