Gigabyte H610M H DDR4 mATX Motherboard

  • Sale
  • Regular price £71.95
Taxes Included. Free Shipping.

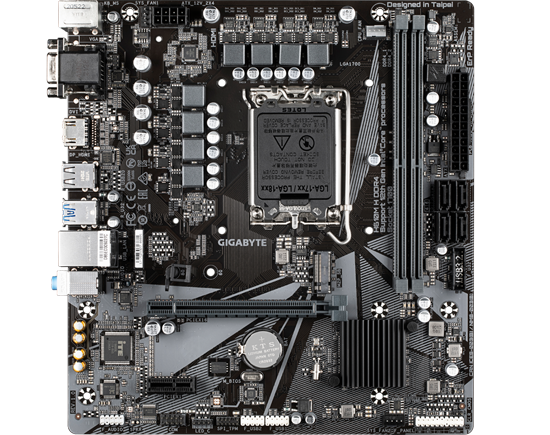

Gigabyte H610M H DDR4 12th Gen Intel Micro ATX Motherboard

GIGABYTE H610M H DDR4 Micro ATX Motherboard

PERFORMANCE UNLEASHED

Rule supreme with the H610 gaming motherboards from GIGABYTE. The H610M H DDR4 comes armed with the most robust power delivery and dominant cooling design. With technology moving so fast, GIGABYTE still keep up with the latest trends and provide customers with advanced features and latest technology. GIGABYTE H610 Series motherboards come with upgraded power solution, latest storage standards and outstanding connectivity to enable optimize performance for gaming.

* Please note: Support for 12th Generation Intel® Core™ i9 processors/Intel® Core™ i7 processors/Intel® Core™ i5 processors.

Intel H610 Chipset

LGA 1700 CPU Socket

12th Generation Intel® Processors

Micro ATX Form Factor

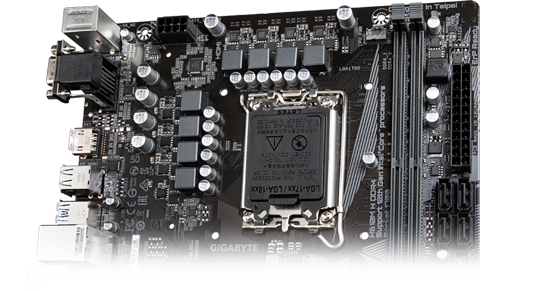

Cleaner and more Efficient Power Delivery to the CPU

VRM Design

HYBRID POWER DESIGN

6+2+1 Phases / Low RDS(on) MOSFETs

SOLID PIN CONNECTORS

8-pin CPU Power Connector

12TH GEN INTEL CORE

Processor Support

EXPERIENCE A MORE POWERFUL DESIGN

GIGABYTE's H610M H DDR4 motherboard uses 6+2+1 phases, Low RDS(on) MOSFETs. Solid capacitors improve transient response and minimize oscillation and offer incredible precision in delivering power to the motherboard's most power-hungry and energy-sensitive components, allowing enthusiasts to get the absolute maximum performance from the latest Intel® Core™ 12th Generation processors.

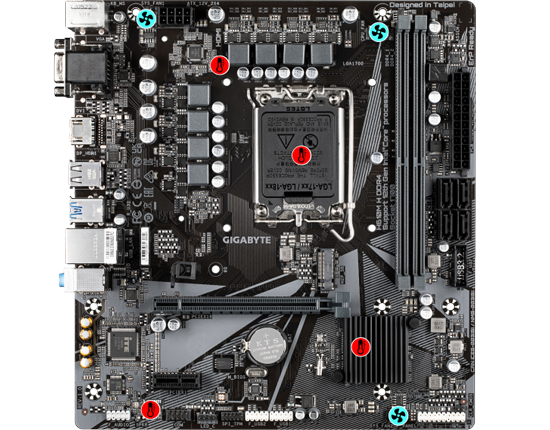

A Fully Comprehensive Cooling Solution

Smart Fan 6

INTELLIGENT FAN CONTROL DESIGN

Smart Fan 6 contains several unique cooling features that ensure gaming PC maintain its performance while staying cool and quiet. Multiple fan headers can support PWM/DC fan and pump, and users can easily define each fan curve based on different temperature sensors across the board via intuitive user interface. With Fan Stop, map any fan to stop completely when temperatures drop below a specified threshold. Which fan stops, based on readings from which sensor, and at what temperature – all of it can be customized to your liking.

features

3 PWM/DC Fan Headers

features

4 Internal Temperature Sensors

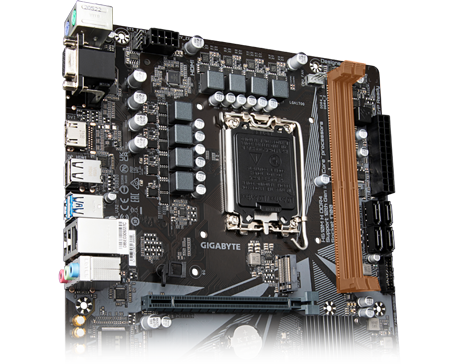

Superior Support for DDR4

memory

HYBRID CORES OPTIMIZATION

With new Intel Hybrid technology, GIGABYTE exclusively creates two new "CPU Upgrade" in BIOS profiles to meet different users' scenarios by adjusting P-Core and E-Core activation and voltage policy.

The maximum memory capacity on the H610 motherboard is 64 GB. After Intel updated the memory reference code, a single slot can support up to 32GB. Therefore with populated 2 DIMM per channel on both channel, total memory capacity is 64GB, which was only available on High End Desktop (HEDT) platforms. For users who always run out of memory capacity, there is more bandwidth now for memory-intensive application such as rendering and video editing.

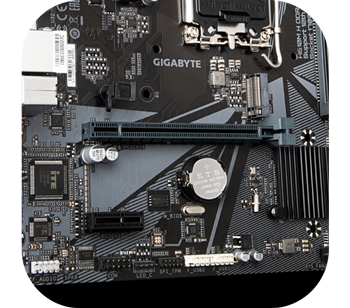

Ready for the Performance of PCIe 4.0

slot

PCIE 4.0 DESIGN

This motherboard has a PCIe 4.0 Ready Design with low loss signal PCB. Features 1 x PCIe 4.0 Slot, reinforced PCIe 4.0 x16.

PCIe

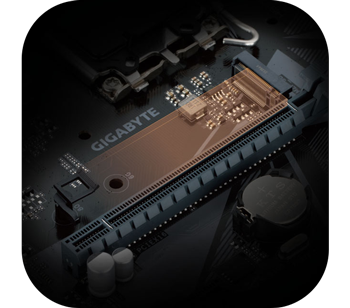

NVME PCIE GEN3 X4 M.2 CONNECTOR

GIGABYTE Motherboards are focused on delivering M.2 technology to enthusiasts who want to maximize their system's potential.

Future-Proof Connectivity

Ports

INTEL® GBE LAN WITH CFOSSPEED INTERNET ACCELERATOR NETWORKING

GIGABYTE H610 Series Motherboards let you experience ultimate connection flexibility and blazing data-transfer speed. Intel® GbE LAN features cFosSpeed, a network traffic management application which helps to improve network latency and maintain low ping times to deliver better responsiveness in crowded LAN environments.

Durability for Years to Come

Anti-Sulfur Design

START SULFURIZATION PROTECTION

Sulfur compounds in the air can penetrate tiny onboard resistors creating chemical change and causing these resistors to open or short. If either of these occurs the motherboard will fail to function. By equipping resistors with an Anti-Sulfur Design GIGABYTE gives Ultra Durable Motherboards a whole new meaning.

Take Control of your Motherboard

bios

REFRESHED BIOS

The BIOS is essential for users during initial setup to allow for the most optimal settings. With a new GUI and easier to use functionalities, GIGABYTE has been able to reinvent the BIOS to give users a better experience while setting up their new system. * Photos are for reference only. Product features may vary by model.


Specifications
Core Specifications
Edition H610M H DDR4
Form Factor MicroATX
CPU Socket 1700
Chipset Intel H610
RAM Memory Support
Memory Type DDR4
Memory Channel Dual (2)
Memory Type (ECC) Non-ECC
Memory Type (R/U) UDIMM (Unbuffered)
Memory Speed (Mhz)
  • DDR4 - 2133
  • DDR4 - 2400
  • DDR4 - 2666
  • DDR4 - 2800
  • DDR4 - 2933
  • DDR4 - 3000
  • DDR4 - 3200
Max. Memory Capacity 64GB (2x32GB)
Audio
Audio Realtek ALC897 7.1 HD Audio
Graphics Support
Primary GPU Interface PCIe 4.0 (x16)
NVIDIA SLI Support N/A
AMD CrossFire Support N/A
Integrated Graphics
On-Board Graphics Connectors
  • D-Sub (VGA)
  • HDMI 2.0
Internal Connectivity
Expansion Slots
  • 1 x M.2, 22-42/60/80, PCIe Gen3x4/SATA3
  • 1 x M.2, 22-60/80, PCIe Gen3
  • 1 x PCIe 3.0 x1
  • 1 x PCIe 4.0 x16
SATA Support N/A
RAID Support via
Storage Mode Support
Internal I/O
  • 1 x 24-pin (Power)
  • 1 x 4-pin CHA_FAN connector
  • 1 x 4-pin CPU Fan Connector
  • 1 x 8-pin (Power)
  • 1 x Clear CMOS Header
  • 1 x Front Panel Audio Header
  • 1 x Front Panel Connector
  • 1 x M.2
  • 1 x RGB (RGBW) LED Strip Header
  • 4 x SATA III - 6Gb/s
  • 1 x Serial (COM) Header
  • 2 x System Fan header
  • 1 x TPM 2.0 Header
  • 2 x USB 2.0 Header
  • 1 x USB 3.2 Gen1 Header
External Connectivity
Network Interface Type Wired Gigabit LAN (10/100/1000)
Network Chip/Modules 1 x Intel (Gigabit LAN)

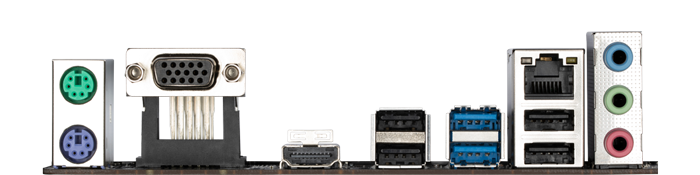

Rear I/O Connectors
  • 1 x 10/100/1000 (LAN)
  • 3 x Audio I/O
  • 1 x D-Sub (VGA)
  • 1 x HDMI 2.0
  • 1 x Line In
  • 1 x Line Out
  • 1 x Mic-In
  • 1 x PS/2 Keyboard
  • 1 x PS/2 Mouse
  • 4 x USB 2.0
  • 2 x USB 3.2 Gen1 Type-A
Additional Specifications
Water Cooled No
Cooling
QPI Speed N/A
Board Dimensions 230 x 215 mm
Note
