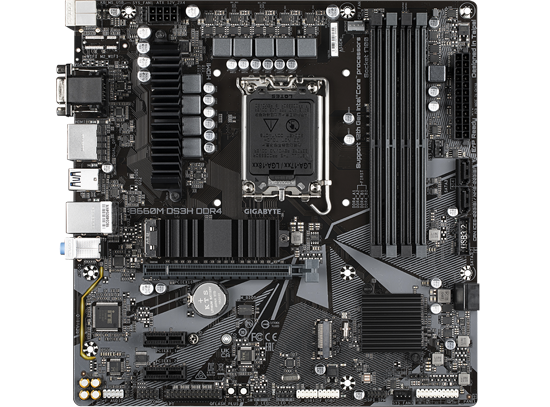

Gigabyte B660M DS3H DDR4 12th Gen Intel Micro ATX Motherboard
Rule supreme with the B660 gaming motherboards from GIGABYTE. The B660M DS3H DDR4 comes armed with the most robust power delivery and dominant thermal design. With technology moving so fast, GIGABYTE still keep up with the latest trends and provide customers with advanced features and latest technology. GIGABYTE B660 Series motherboards come with upgraded power solution, latest storage standards and outstanding connectivity to enable optimize performance for gaming.
* Please note: Support for 12th Generation Intel® Core™ i9 processors/Intel® Core™ i7 processors/Intel® Core™ i5 processors.
Intel B660 Chipset
LGA 1700 CPU Socket
12th Generation Intel® Processors
Micro ATX Form Factor
Cleaner and more Efficient Power Delivery to the CPU
HYBRID POWER DESIGN
6+2+1 Phases / Low RDS(on) MOSFETs
SOLID PIN CONNECTORS
8-pin CPU Power Connector
12TH GEN INTEL CORE
PREMIUM CHOKE AND CAPACITOR DESIGN

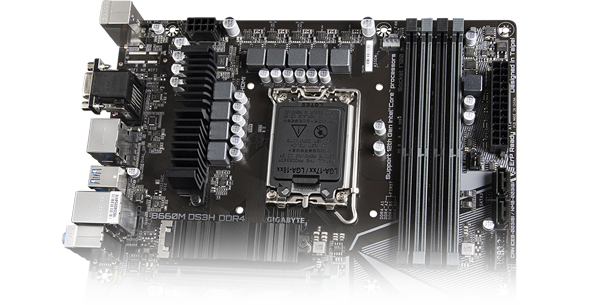

GIGABYTE's B660M DS3H DDR4 motherboard uses 6+2+1 phases, Low RDS(on) MOSFETs. Solid capacitors improve transient response and minimize oscillation and offer incredible precision in delivering power to the motherboard's most power-hungry and energy-sensitive components, allowing enthusiasts to get the absolute maximum performance from the latest Intel® Core™ 12th Generation processors.
Advanced Thermal Design with M.2 Thermal Guard
SHIELDED LAYER PROTECTS FROM EXTERNAL INTERFERENCE

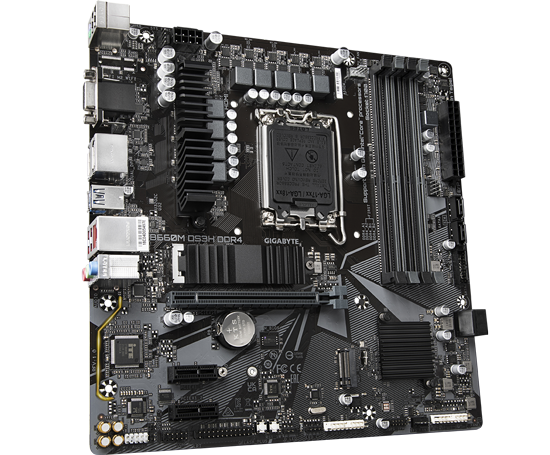

With durability in mind, GIGABYTE provides a thermal solution for M.2 SSD devices. The M.2 Thermal Guard prevents throttling and bottlenecks from high speed M.2 SSDs as it helps to dissipate heat before it becomes an issue.
A Fully Comprehensive Cooling Solution
INTELLIGENT FAN CONTROL DESIGN

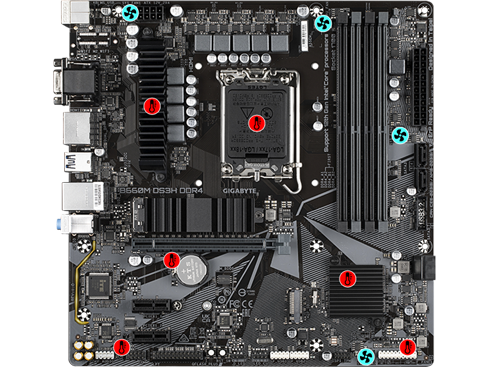

Smart Fan 6 contains several unique cooling features that ensure gaming PC maintain its performance while staying cool and quiet. Multiple fan headers can support PWM/DC fan and pump, and users can easily define each fan curve based on different temperature sensors across the board via intuitive user interface. With Fan Stop, map any fan to stop completely when temperatures drop below a specified threshold. Which fan stops, based on readings from which sensor, and at what temperature – all of it can be customized to your liking.
4 PWM/DC Fan Headers
6 Internal Temperature Sensors
Superior Support for DDR4 XMP
HYBRID CORES OPTIMIZATION
With new Intel Hybrid technology, GIGABYTE exclusively creates two new "CPU Upgrade" in BIOS profiles to meet different users' scenarios by adjusting P-Core and E-Core activation and voltage policy.
UP TO 5333MHZ AND BEYOND*
GIGABYTE is offering a tested and proven platform that ensures proper compatibility with profiles up to 5333MHz and beyond. All users need to do to attain this performance boost is to ensure that their memory module is XMP capable and that the XMP function is activated and enabled on their GIGABYTE motherboard.
* XMP Profile support may vary depending on memory module.
2 X PCIE 4.0 M.2 SLOTS / PCIE 4.0 DESIGN

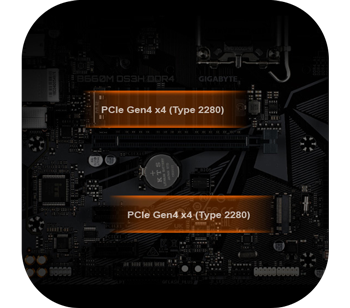

GIGABYTE B660 Motherboards are ready to work with the PCIe 4.0 devices which are expected to experience twice bandwidth than the current PCIe 3.0 devices. To reach the high speed and maintain good signal integrity, GIGABYTE R&D uses the low impedance PCB to provide the maximum performance. Dual PCIe 4.0 x4 M.2 Connectors with Thermal Guard.
2.5 GBE LAN ONBOARD
GIGABYTE B660 Series Motherboards let you experience ultimate connection flexibility and blazing data-transfer speed with the adoption of 2.5G LAN provide up to 2.5 GbE network connectivity, with at least 2 times faster transfer speeds compared to general 1 GbE networking, perfectly designed for gamers with ultimate online gaming experience.
CONNECTING THE FUTURE - USB TYPE-C®
The USB Type-C® is a new reversible connector that is loaded with useful features such as USB 3.2 Gen2 support for 10Gb/s transfer speed. Powered by the Intel® USB 3.2 Gen2 controller, this little port provides the best USB Type-C® experience possible.
Illuminate your PC with RGB Fusion 2.0
RGB FUSION 2.0
B660 motherboards feature RGB FUSION 2.0 to offer lighting effected options and customized settings with outstanding aesthetics, and able to let enthusiasts building a stylish and unique gaming PC.
Durability for Years to Come
With GIGABYTE Q-Flash Plus, you don't need to install the CPU, memory and graphics card nor enter the BIOS menu to flash the BIOS. Just download and save a new BIOS file (rename to gigabyte.bin) on the USB flash drive, then press the dedicated Q-Flash Plus button and you're good to go!
Plug the 24-pin & 8-pin power supply cable into the motherboard.
Download and unzip the motherboard's compressed BIOS file and rename to "gigabyte.bin", save to a USB flash-drive, and plug it into the Q-Flash USB port.
Press the Q-Flash button, and the motherboard will start updating the BIOS automatically.
Take Control of your Motherboard
The BIOS is essential for users during initial setup to allow for the most optimal settings. With a new GUI and easier to use functionalities, GIGABYTE has been able to reinvent the BIOS to give users a better experience while setting up their new system. * Photos are for reference only. Product features may vary by model.
|Product Type||Motherboard - micro ATX|
|Chipset Type||Intel B660|
|Processor Socket||LGA1700 Socket|
|Max Processors Qty||1|
|Compatible Processors||(supports 12th Generation Intel Core / Pentium Gold / Celeron)|
|Max Size||128 GB|
|Bus Clock||2400 MHz, 2133 MHz, 3000 MHz, 2666 MHz, 2933 MHz, 3300 MHz (O.C.), 3400 MHz (O.C.), 3333 MHz (O.C.), 3466 MHz (O.C.), 3733 MHz (O.C.), 3600 MHz (O.C.), 3800 MHz (O.C.), 3666 MHz (O.C.), 3866 MHz (O.C.), 4000 MHz (O.C.), 4133 MHz (O.C.), 4500 MHz (O.C.), 4400 MHz (O.C.), 4300 MHz (O.C.), 4266 MHz (O.C.), 4600 MHz (O.C.), 4700 MHz (O.C.), 4800 MHz (O.C.), 3200 MHz, 4933 MHz (O.C.), 5000 MHz (O.C.), 5333 MHz (O.C.), 5133 MHz (O.C.)|
|Supported RAM Integrity Check||Non-ECC, ECC (operate in non-ECC mode)|
|Registered or Buffered||Unbuffered|
|Features||Dual channel memory architecture, Intel Extreme Memory Profiles (XMP), supported ECC modules operate in non-ECC mode|
|Type||HD Audio (8-channel)|
|Compliant Standards||High Definition Audio|
|Network Interfaces||2.5 Gigabit Ethernet|
Expansion / Connectivity
|Expansion Slots||1 x CPU ¦ 4 x DIMM 288-pin ¦ 1 x PCIe 4.0 x16 ¦ 2 x PCIe 3.0 x16 (x1 mode)|
|Storage Interfaces||SATA-600 -connectors: 4 x 7pin Serial ATA - RAID 0 / RAID 1 / RAID 10 / RAID 5 ¦ PCIe 4.0 -connectors: 2 x M.2|

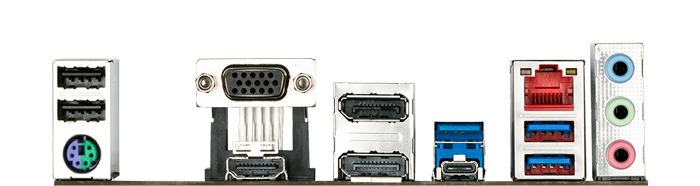

|Interfaces||1 x USB-C Gen2 ¦ 3 x USB 3.2 Gen 1 ¦ 2 x USB 2.0 ¦ 1 x HDMI ¦ 1 x audio line-out - mini-jack ¦ 1 x audio line-in - mini-jack ¦ 1 x microphone - mini-jack ¦ 2 x DisplayPort ¦ 1 x LAN (2.5Gigabit Ethernet)|
|Internal Interfaces||4 x USB 2.0 - header ¦ 2 x USB 3.2 Gen 1 - header ¦ 1 x audio - header ¦ 1 x SPDIF out - header|
|Power Connectors||24-pin main power connector, 8-pin ATX12V connector|
|BIOS Features||WfM 2.0 support, UEFI BIOS, SMBIOS 2.7 support, DMI 2.7 support, ACPI 5.0 support|
|Hardware Monitoring||CPU core temperature, chassis temperature, CPU fan tachometer, chassis fan tachometer, system voltage, CPU overheating protection, CPU core voltage, fan fail warning|
|Hardware Features||Q-Flash, HDCP compliant, On/Off Charge, Q-Flash Plus, Game Boost, Audio Noise Guard, Intel Optane Memory Ready, M.2 Thermal Guard, Solid Pin Power Connectors, RGB FUSION 2.0, GIGABYTE Smart Fan 6, 6+2+1 Phase Power Design|
|Software Included||Norton Internet Security, @BIOS, EasyTune, Xpress Install, GIGABYTE App Center, GIGABYTE Fast Boot, GIGABYTE Smart Backup, Realtek Gaming LAN Bandwidth Control|
|Compliant Standards||DisplayPort 1.2, HDCP 2.3|
