B550M DS3H Micro-ATX Motherboard from Gigabyte
DISCOVER IMPRESSIVE DURABILITY AND POWER
Create the ultimate powerhouse machine with the GIGABYTE B550M DS3H motherboard. This all-new high-end component offers the power and connectivity your PC deserves so you can upgrade your system with AMD's 3rd Generation Ryzen™ CPUs. This motherboard is perfect for PC enthusiasts who desire high-end performance but also care about aesthetics and durability. This powerful design delivers impeccable dual Ultra-Fast M.2 support and a comprehensive cooling solution to stay cool under heavy workloads. Performance is never compromised, and aesthetics are greater than ever with support for RGB lighting.
AMD B550 Chipset
3rd Generation AMD Ryzen™ Compatible CPUs
AMD AM4 CPU Socket
Micro-ATX Form Factor
Power Delivery that's Precise and Efficient
5+3 PURE DIGITAL VRM WITH LOW RDS(ON) MOSFETS
GIGABYTE UD series motherboards utilize a 5+3 phases pure digital PWM + Low RDS(on) MOSFETs design to support 3rd Gen AMD Ryzen™ CPUs. It offers impeccable precision when delivering power to the motherboard's most demanding and energy-sensitive components, as well as delivering enhanced system performance and ultimate hardware scalability.

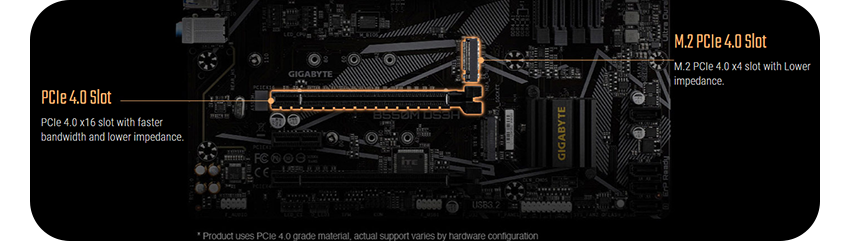

PCIe 4.0* Hardware Design
Enhance your Transfer Speeds
DUAL NVME PCIE 4.0*/3.0 M.2 CONNECTORS
With NVMe PCIe 4.0*/3.0 x4 and PCIe 3.0 x2 M.2 connectors onboard, you can utilise NVMe mode or SATA mode connectivity for M.2 SSD devices. They deliver up to 64 Gb/s data transfer speeds. The dual M.2 connector design provides an ideal storage solution whilst also supporting RAID modes.
Versatile Connectivity Options

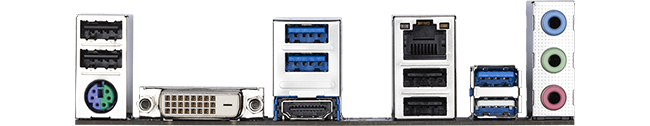

I/O PORTS | REALTEK 8118 GAMING LAN | REAL-TIME NETWORK MONITORING
With integrated I/O ports, building a GIGABYTE PC is even easier. Realtek 8118 LAN is an impressive network chip for gamers with automatic bandwidth allocation to ensure the highest network priority of the game or application. It can deliver the most comprehensive features and the fastest and smoothest Internet experience.
Full Support for Video Streams

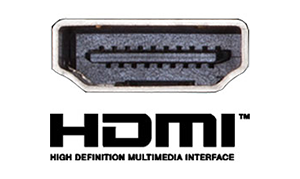

HDMI 2.1 FOR 4K / 60P / 21:9 / HDCP 2.3 SUPPORT
HDMI SUPPORT
HDMI 2.1, which is backwards compatible with HDMI 2.0/1.4 and offers twice more bandwidth than previous generations. This unlocks the potential for you to transfer multiple video streams, as well as a native cinematic 21:9 ratio, Full HDR and HDCP 2.3 support, to offer the best visual experience.
INCREDIBLE SPEED
HDMI 2.1 supports up to an impressive 48Gb/s bandwidth. Note: Only New Gen AMD Ryzen™ with Radeon™ Graphics processors support displaying function.
Stay Cool under Demanding Loads
SMART FAN 5
With Smart Fan 5 users can ensure that their gaming PC can maintain its performance while staying cool. Smart Fan 5 allows users to interchange their fan headers to reflect different thermal sensors at different locations on the motherboard. Not only that, with Smart Fan 5 more hybrid fan headers that support both PWM and Voltage mode fans have been introduced to make the motherboard more liquid cooling friendly. Achieve fan silence. With Fan Stop, map any fan to stop completely when temperatures drop below a specified threshold. Which fan stops is based on readings from which sensor, and what temperature of the stopping threshold can be customized to your liking. With Smart Fan 5 choose from different modes, Quiet to Full Speed, to match your system usage preferences. For each fan or pump, you can use the intuitive fan curve to define trigger thresholds and corresponding fan speeds.
Illuminate your PC with RGB Fusion 2.0
RGB FUSION 2.0
With this GIGABYTE motherboard, RGB Fusion 2.0 is even better. It offers addressable LEDs and lets you control onboard RGB and external RGB / addressable LED light strips for your PC. Filled with various colours and modes, RGB Fusion 2.0 on GIGABYTE motherboards are now upgraded with addressable LED support. With LED strips, you can experience more patterns, styles, and illuminations. Utilise support for either 5v or 12v addressable LED strips and up to 300 LED lights.
Enter the Gaming World with Incredible Audio

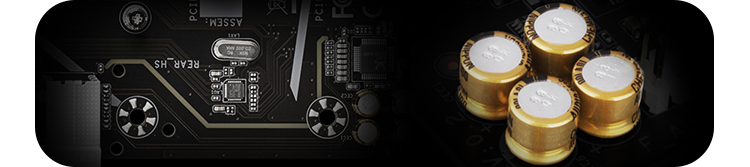

HIGH-END AUDIO CAPACITORS
GIGABYTE motherboards use high-end audio capacitors. These high quality capacitors help deliver high resolution and high fidelity audio and offer the most realistic sound effects for gamers.
AUDIO NOISE GUARD
The audio noise guard essentially separates the board's sensitive analog audio components from the potential noise pollution at the PCB level.
Get Up and Running in Seconds
Q-FLASH PLUS
With GIGABYTE Q-Flash Plus, you don’t need to install the CPU, memory and graphics card nor enter the BIOS menu to flash the BIOS. Just download and save a new BIOS file (rename to gigabyte.bin) on the USB flash drive, then press the dedicated Q-Flash Plus button and you’re good to go!
STEP 1
Plug the 24pin & 8pin power supply cable into the motherboard.
STEP 2
Download and unzip the motherboard's compressed BIOS file and rename to "gigabyte.bin", save to a USB flash-drive, and plug it into the Q-Flash USB port.
STEP 3
Press the Q-Flash button, and the motherboard will start updating the BIOS automatically.
Made to Stand the Test of Time

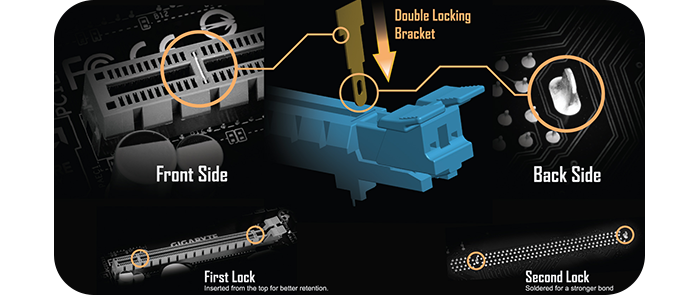

GIGABYTE PATENTED DOUBLE LOCKING BRACKET
Customise all your Settings to your Needs

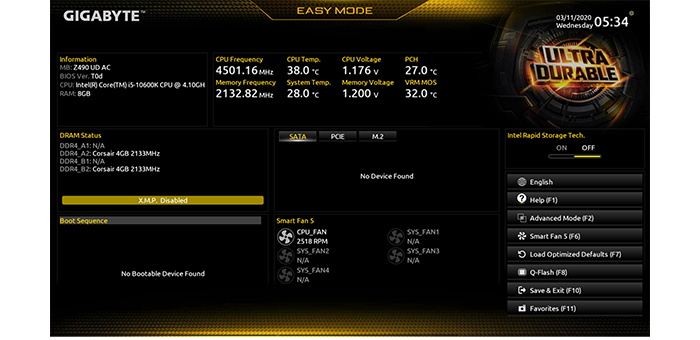

REFRESHED BIOS
The BIOS is essential for users during initial setup to allow for the most optimal settings. With a new GUI and easier to use functionalities, GIGABYTE has been able to reinvent the BIOS to give users a better experience when setting up their new system.
Enhance your Gaming Streams and Connection
SPLIT GAMECASTER + BROADCASTER
Now set up your stage and share the greatest gaming moments with XSplit Gamecaster + Broadcaster! Fully optimized social media integration is ready for real-time chats—keeping you notified yet focused on the game. It takes just one click to stream your gameplay to Twitch. Host your game like a pro!
* Free 14 days XSplit Gamecaster + Broadcaster Premium License.
WTFAST
Take control of your gaming experience with WTFast, the Gamers Private Network (GPN); which optimizes and improves your connection from end to end. Enjoy 3 days free seamless connection to any game server in the world, with up to 60% overall connection improvement and free unlimited access to the PC Gaming Launchpad which supports over 800 MMO games. You can also monitor your Game Ping and Statistics continuously.
General |
|
|---|---|
| Product Type | Motherboard - micro ATX |
| Chipset Type | AMD B550 |
| Processor Socket | Socket AM4 |
| Max Processors Qty | 1 |
| Compatible Processors | Ryzen (supports 3rd Generation Ryzen and New Generation Ryzen with Radeon Graphics) |
Supported RAM |
|
| Max Size | 128 GB |
| Technology | DDR4 |
| Bus Clock | 2400 MHz, 2133 MHz, 2667 MHz, 2933 MHz, 3333 MHz (O.C.), 3600 MHz (O.C.), 4000 MHz (O.C.), 3200 MHz |
| Supported RAM Integrity Check | Non-ECC, ECC (operate in non-ECC mode) |
| Registered or Buffered | Unbuffered |
| Features | Dual channel memory architecture, Intel Extreme Memory Profiles (XMP), supported ECC modules operate in non-ECC mode |
Audio |
|
| Type | HD Audio (8-channel) |
| Audio Codec | Realtek ALC887 |
| Compliant Standards | High Definition Audio |
LAN |
|
| Network Interfaces | Gigabit Ethernet |
Expansion / Connectivity |
|
| Expansion Slots | 1 x CPU ¦ 4 x DIMM 288-pin ¦ 1 x PCIe 4.0 x16 (PCIe 4.0 x16 mode (with 3rd Generation Ryzen CPU); PCIe 3.0 x16 mode (with 3nd Generation Ryzen with Radeon Graphics CPU)) ¦ 1 x PCIe 3.0 x16 (x4 mode) ¦ 1 x PCIe 3.0 x1 |
| Storage Interfaces | SATA-600 -connectors: 4 x 7pin Serial ATA - RAID 0 / RAID 1 / RAID 10 ¦ SATA-600 / PCIe 3.0 -connectors: 1 x M.2 ¦ PCIe 4.0 -connectors: 1 x M.2 |
| Interfaces | 1 x LAN (Gigabit Ethernet) ¦ 1 x PS/2 keyboard / mouse ¦ 1 x audio line-in - mini-jack ¦ 1 x audio line-out - mini-jack ¦ 1 x microphone - mini-jack ¦ 1 x DVI-D ¦ 1 x HDMI ¦ 4 x USB 3.2 Gen 1 ¦ 4 x USB 2.0 |
| Internal Interfaces | 2 x USB 2.0 - header ¦ 2 x USB 3.2 Gen 1 - header ¦ 1 x audio - header ¦ 1 x serial - header |
| Power Connectors | 24-pin main power connector, 8-pin ATX12V connector |
Features |
|
| BIOS Type | AMI |
| BIOS Features | WfM 2.0 support, UEFI BIOS, SMBIOS 2.7 support, DMI 2.7 support, ACPI 5.0 support |
| Hardware Monitoring | CPU core temperature, chassis temperature, CPU fan tachometer, chassis fan tachometer, system voltage, CPU overheating protection, CPU core voltage |
| Hardware Features | Q-Flash, HDCP compliant, On/Off Charge, Q-Flash Plus, Game Boost, RGB FUSION |
Miscellaneous |
|
| Software Included | Norton Internet Security, @BIOS, EasyTune, Xpress Install, GIGABYTE App Center, GIGABYTE Fast Boot, GIGABYTE Smart Backup, Realtek Gaming LAN Bandwidth Control |
| Width | 24.4 cm |
| Depth | 24.4 cm |
