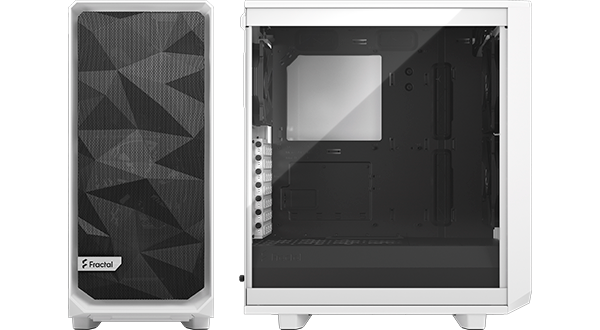

Meshify 2 Compact White TG PC Case from Fractal Design
A CLASSIC EVOLVED
Meshify 2 Compact is a high-performing case with a bold, stealth-inspired aesthetic. Its striking exterior features bolt-free, flush tempered glass, a fully removable top panel granting excellent interior access, and a front USB 3.1 Type-C port. The front nylon filter can be removed for extra airflow, letting the mesh front deal with filtering. Intelligent space utilization enables the Meshify 2 Compact to boast the performance and capacity of larger cases despite its remarkably compact mid-tower size, and the filtered airflow design makes cooling a breeze.
ATX / mATX / Mini-ITX Motherboard Compatibility
ATX Power Supply Support
Built with Functionality and Style
ORIGINAL STYLE, FUTURE-PROOF FEATURES
The Meshify 2 Compact features Fractal's iconic angular mesh front that provides filtered airflow with a bold, stealth-inspired aesthetic. The nylon front filter can also be removed to increase airflow throughout the case. The open interior layout is perfect for creating a smooth airflow path from the front intake to the rear exhaust. Utilise a wealth of space with the ATX form-factor design that offers the performance and capacity of much larger PC cases.

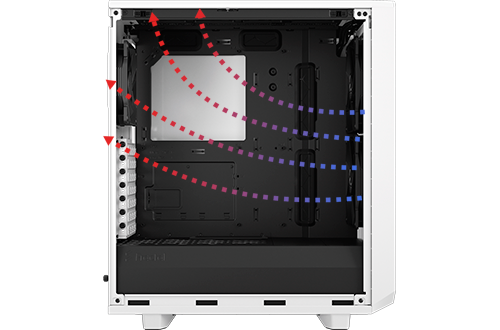

Stay Cool for Every Task
VERSATILE COOLING SPACE
Install up to 7x 120 mm or 4x 140 mm fans (1x 120 mm and 2x 140 mm Dynamic X2 fans included), and utilise space for GPUs up to 360 mm with a 240 mm radiator in the top, or up to 360/280 mm front radiators with GPUs under 305mm.
Building your Dream PC is Easy
TOOL-FREE PANEL DESIGN

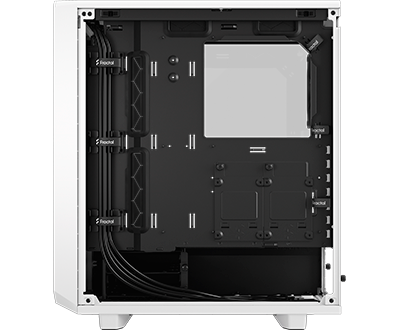

The fully removable top panel and top fan bracket opens to provide excellent interior access and easy cable routing, with an integrated TG panel with steel frame support and a bolt-free top-latching mechanism. The cable routing is improved further with three integrated cable alignment strips and six velcro straps.
Versatile Connectivity Options
WORK AND PLAY MADE EASY
Easily connect your peripherals and devices and enjoy fast charging with the integrated I/O ports. There's three front USB ports including one USB 3.1 Gen 2 Type-C with fast charging and speeds up to 10Gbps.

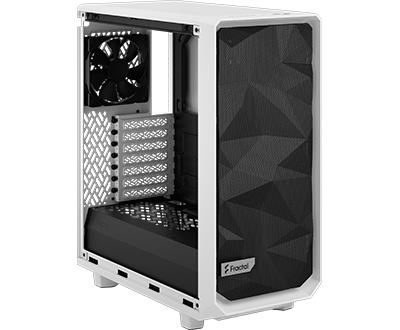

Space for a Wealth of Storage
Despite its compact form, the Meshify 2 Compact allows you to install plenty of storage devices, with support for two 2.5"/3.5" drives and up to four SSDs (two SSD brackets included).

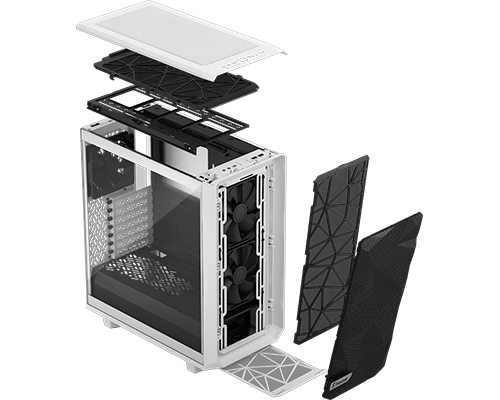

Never Worry about Unwanted Dust
With removable dust filters on the front, top and base with full PSU coverage and convenient front access, keeping the Meshify 2 Compact dust-free is a total breeze.
|Core Chassis Specifications|
|Case Edition||Meshify 2 Compact|
|Case Form Factor||Mid Tower|
|Motherboard Form Factor||
|I/O, Bays & Expansion|
|Front/Side/Top Panel I/O||
|Drive Bays||2 x 2.5"/ 3.5" Internal|
|Standard Expansion Slots||7|
|Vertical Expansion Slots|
|Fans & Filters|
|Fan Bays||7 x 120mm / 4x 140mm|
|Liquid Cooling Support|
|Front Radiator Compatibility||1 x 280/360mm|
|Top Radiator Compatibility||1 x 240mm|
|Bottom Radiator Compatibility||1 x 120mm|
|Rear Radiator Compatibility||1 x 120mm|
|Side Radiator Compatibility|
|Max CPU Cooler Height||169 mm|
|Max GPU Card Length||341 mm|
|Cable Routing Space||17-28 mm|
|Window Configuration||1 x Main Side|
|Window Construction||Tempered Glass (Clear)|
|LED Lighting Functionality|
|LED Lighting Emitters|
|LED Lighting Colour|
|LED Lighting Support & Control|
|Power Supply Compatibility|
|PSU Wattage (If Included)|
|PSU 80+ Rating (If Included)|
|PSU Mounting Location||Bottom Mount, Rear|
|Max PSU Length||165 mm|
|Chassis Physical Specifications|
|Chassis Contruction Materials||Steel / Tempered Glass|
|Dimensions||210 x 475 x 424 (WxHxD mm)|
|Weight||7.7 kg (Approx)|
