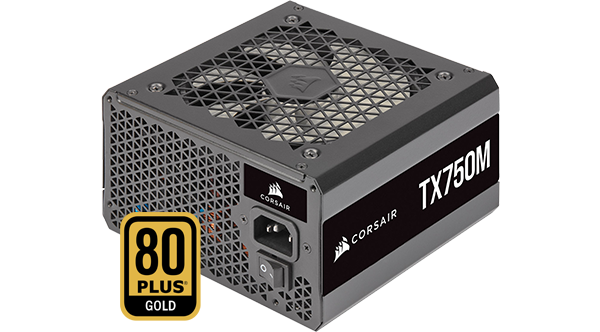

BRING TRUE POWER TO YOUR PC
CORSAIR TX-M Series Low-Noise ATX Power Supplies offer reliable, low-noise operation with 80 PLUS Gold efficiency certification, semi-modular cabling and a low-noise rifle bearing fan. With dual EPS12V cables and two/four PCIe 8-pin power connectors, TX-M PSUs have all the connections needed to power today’s most demanding PC upgrades. Japanese 105°C-rated capacitors deliver excellent electrical performance and reliability, supported by a seven-year warranty. Resonant LLC topology ensures clean, consistent power and reduced coil whine. With a compact design allowing for great flexibility in multiple build configurations, TXM Series power supplies offer tens of thousands of hours of dependable, low-noise power.
750 Watts
80 Plus Gold Efficiency Rating
ATX Form Factor
Efficiency has Never been Better
80 PLUS GOLD-CERTIFIED EFFICIENCY
The super-efficient operation of the TX Series semi-modular results in lower energy use and lower operating costs. Since it generates less heat, the fan doesn’t need to work as hard, and you’ll enjoy near silent operation.
Installation made Easy
MODULAR CABLING WITH MARKED CONNECTORS
The flat, sleeved black cables are semi-modular, so you’ll only use the cables you need and you’ll get great-looking results. The clearly-marked connectors make installation fast and straightforward.
Built to Last
EACH ONE MADE PERFECT
Every CORSAIR power supply is designed by Corsair's California engineering team and built to exact specifications. The same care that goes into the design and testing of their renowned high-power enthusiast power supplies also goes into the TX-M Series semi-modular, because you need confidence and reliability regardless of your build budget.
General |
|
|---|---|
| Device Type | Power supply - internal |
| Specification Compliance | ATX12V 2.4/ EPS12V |
| PSU Form Factor | ATX |
| Localisation | United Kingdom |
Power Device |
|
| Input Voltage | AC 100-240 V |
| Frequency Required | 47 - 63 Hz |
| Power Output Connectors Details | 1 x power 24 pin ATX ¦ 2 x power 8 pin EPS12V with detachable 4 pin ATX12V section ¦ 4 x 8 pin PCI Express power with detachable 2 pin section ¦ 4 x 4 PIN internal power ¦ 7 x 15 pin Serial ATA power |
| Output Voltage | +3.3, +5, ±12 V |
| Power Capacity | 750 Watt |
| Output Current | +3.3V - 25 A ¦ +5V - 25 A ¦ +12V - 62 A ¦ -12V - 0.8 A ¦ +5VSB - 3 A |
| Modular Cable Management | Yes |
| 80 PLUS Certification | 80 PLUS Gold |
Miscellaneous |
|
| MTBF | 100,000 hours |
| Cooling System | 120 mm fan |
| Features | DC-DC technology, rifle bearing cooling fan, semi-modular, LLC resonant converter technology, Modern Standby compatible |
Manufacturer Warranty |
|
| Service & Support | Limited warranty - 7 years |
Dimensions & Weight |
|
| Width | 15 cm |
| Depth | 14 cm |
| Height | 8.6 cm |
