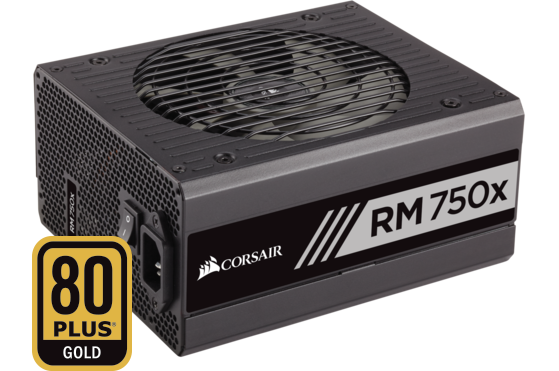

CORSAIR RMX 750W POWER SUPPLY
CORSAIR RM750x series power supplies are built with the highest quality components to deliver 80 PLUS Gold efficient power to your PC to reduce costs and excess heat. Fully modular cables make PC builds and upgrades easy, as you only need to install the cables your system requires. Zero RPM Mode means an RM750x series PSU is virtually silent at low and medium loads, and even at maximum power, a low noise fan ensures quiet operation. Quiet, efficient and dependable, an RM750x PSU has everything you need to power your high-performance PC for years to come.
Fully Modular Connectivity
KEEP YOUR BUILD LOOKING CLEAN
The fully modular design of the RMx power supply means that during your build you can mount the PSU in the case first and then attatch only the cables you need, making builds and upgrades easy with great looking results. Simply connect the cables you need and keep the rest safe for future upgrades.

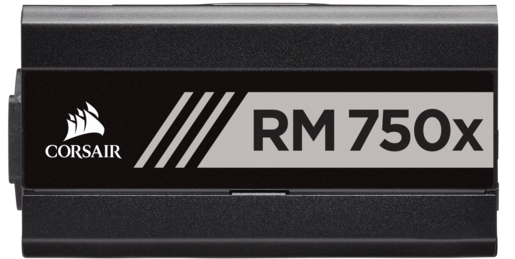

Compact Size
TEN-YEAR WARRANTY
A 160mm-long casing ensures an easy fit in almost all modern enthusiast PC cases. Your guarantee of reliable operation that will last across several system builds.

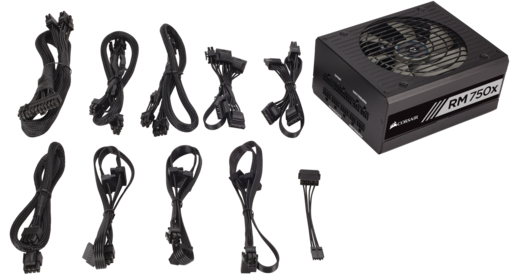

Completely Modular
BUILD LIKE A PRO
Only connect the cables your system needs, making clean and tidy builds easier whilst improving airflow.

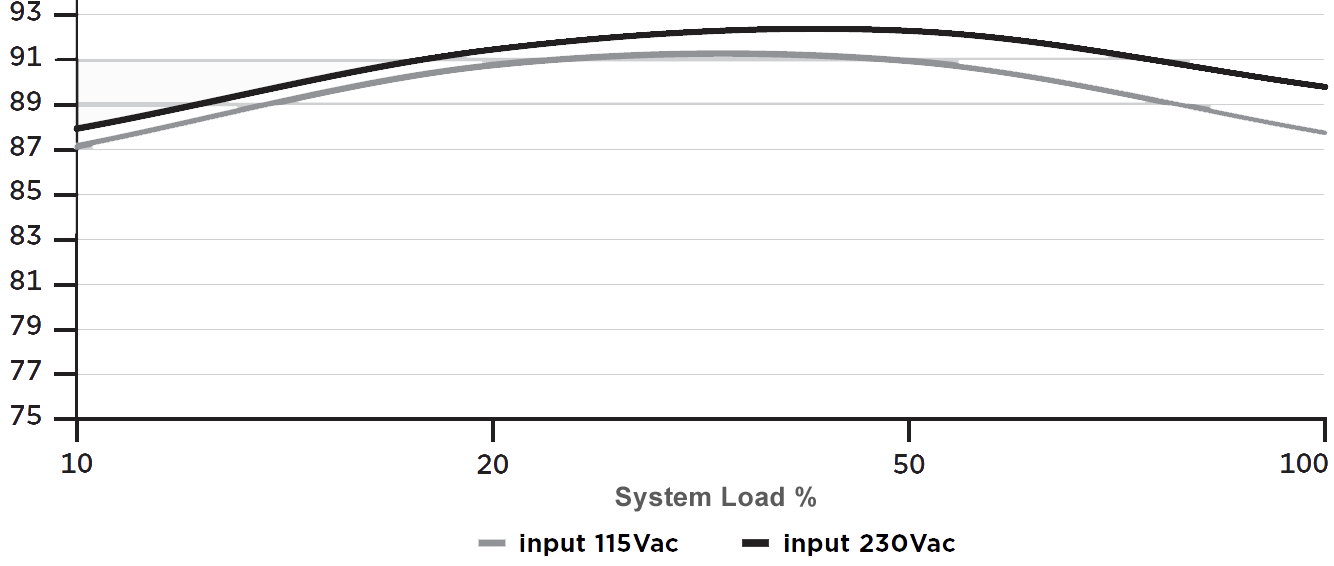

RM750x Efficiency & Noise Graphs

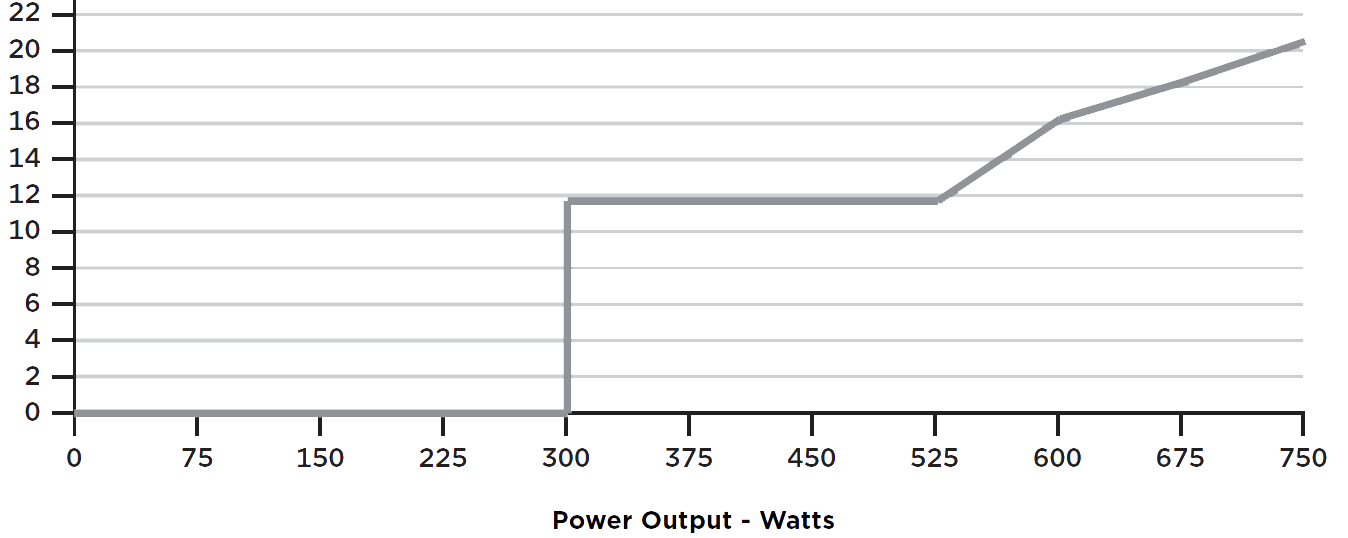

RM750X NOISE
Corsair RM750x Key Features
CORSAIR QUALITY
80 PLUS GOLD CERTIFIED
Gold certification ensures high efficiency operation for less excess heat and lower operating costs.
JAPANESE 105°C CAPACITORS
Premium internal components ensure solid power delivery and long term reliability.
ZERO RPM FAN MODE
Fan doesn’t turn on until it’s needed, so you’ll enjoy virtually silent operation at low and medium loads.
CONFIGURABLE +12V RAIL
It’s your choice – run it in the default multi-rail +12V mode, or toggle single-rail operation.
Power Device |
|
|---|---|
| Output Current | +3.3V - 25 A ¦ +5V - 25 A ¦ +12V - 62.5 A ¦ -12V - 0.8 A ¦ +5VSB - 3 A |
| Efficiency | 90% |
| Modular Cable Management | Yes |
| 80 PLUS Certification | 80 PLUS Gold |
| Input Voltage | AC 100-240 V |
| Frequency Required | 47 - 63 Hz |
| Power Output Connectors Details | 1 x power 24 pin ATX with detachable 4 pin section ¦ 2 x power 8 pin EPS12V with detachable 4 pin ATX12V section ¦ 8 x 4 PIN internal power ¦ 9 x 15 pin Serial ATA power ¦ 4 x 8 pin PCI Express power with detachable 2 pin section |
| Output Voltage | +3.3, +5, ±12 V |
| Power Capacity | 750 Watt |
Miscellaneous |
|
| Included Accessories | Case badge, 100mm floppy adapter, cable ties, cable bag |
| Cables Included | Power cable kit |
| MTBF | 100,000 hours |
| Cooling System | 135 mm fan |
| Features | Over voltage protection, overpower protection, undervoltage protection, short-circuit protection, temperature controlled fan, Zero RPM fan mode, rifle bearing cooling fan, fully modular |
| Compliant Standards | CSA, UL, TUV, C-Tick, BSMI, cUL, CB, CCC, FCC, RoHS, WEEE, ICES, REACH, KC, China RoHS, RCM, CU-TR |
Manufacturer Warranty |
|
| Service & Support | Limited warranty - 10 years |
Dimensions & Weight |
|
| Width | 15 cm |
| Depth | 16 cm |
| Height | 8.6 cm |
| Weight | 1.659 kg |
General |
|
| Device Type | Power supply - internal |
| Specification Compliance | ATX12V 2.4/ EPS12V 2.92 |
| PSU Form Factor | ATX |
| Localisation | United Kingdom |
