CORSAIR 275R Airflow Black Mid-Tower Gaming Case

MODERN DESIGN WITH MAXIMUM AIRFLOW
The CORSAIR 275R Airflow is a mid-tower ATX case that pairs modern design with maximum airflow, thanks to a slatted front panel and a single tempered glass window. Three included 120mm fans enable powerful cooling right out of the box, with room for up to six total fans or multiple radiators in sizes up to 360mm. Fit up to two 3.5in HDDs and four 2.5in SSDs, with a Direct Airflow Path™ layout ensuring obstruction-free airflow to your components. Once the build is finished, the 275R Airflow helps you keep your system clean and tidy with simple, intuitive cable routing and three removable dust filters.
Modern Design with Maximum Airflow

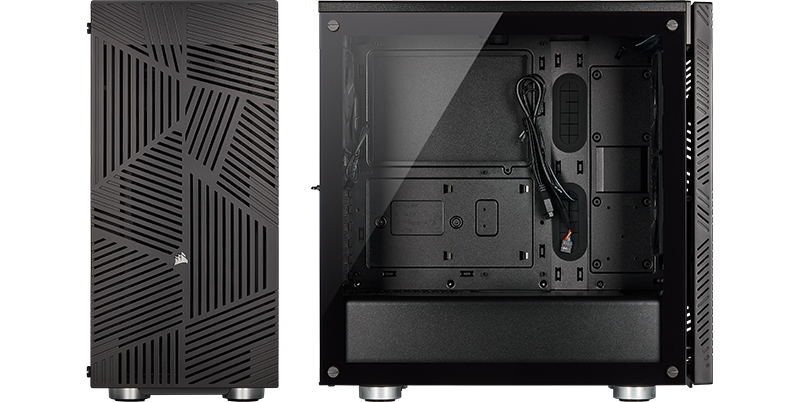

CLEAN AND MODERN STYLING
The Carbide 275R offers a clean design with a unique angled ventilation pattern front. The edge-to-edge transparent tempered glass side panel provides a window into your system and allows you to see the impressive components inside your PC.
Versatile Cooling Options

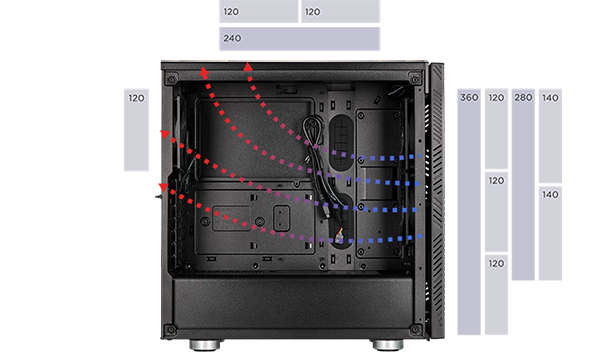

DIRECT AIRFLOW PATH™
Fit up to 6 x 120mm cooling fans inside the Carbide 275R, or house multiple radiators in sizes up to 360mm. The 275R offers you plenty of cooling options with the obstruction-free layout channels to create the ultimate cooling for your system during those crucial gaming moments and demanding tasks.

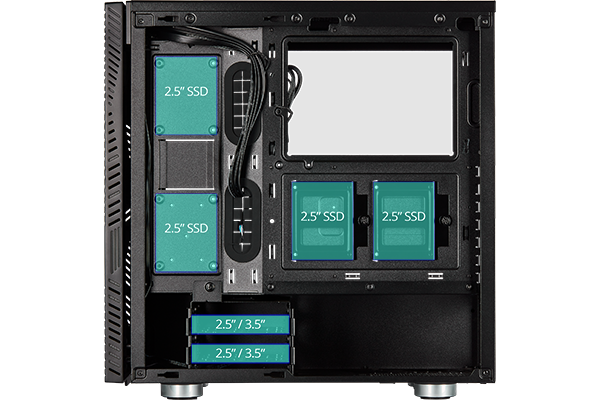

Versatile Storage Capabilities

ROOM FOR MULTIPLE STORAGE DRIVES
Reap the benefits of the Carbide 275R's versatile storage space. With room for up to six drives to provide you with enough storage for years to come. You can use the two removable 3.5" steel drive trays which also double up as a 2.5" bay, or up to four 2.5" SSDs.
Plug-in and Play with the Easy Access I/O Panel

UP-FRONT CONNECTIVITY PORTS
The front I/O panel houses two USB 3.0 ports and a combined microphone/headphone jack that allows you to easily plug in and use all your favorite devices.
Never Worry about Dust Build-Up
THREE DEDICATED DUST FILTERS
Removable dust filters in the floor, roof and front help keep your system clean long after the build is finished. They work to protect your components from dust and in turn provide greater operation.

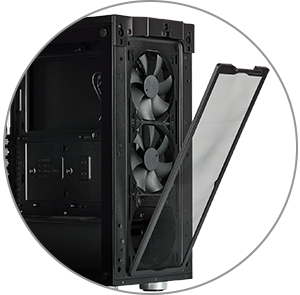

FRONT

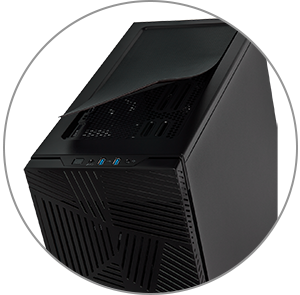

TOP

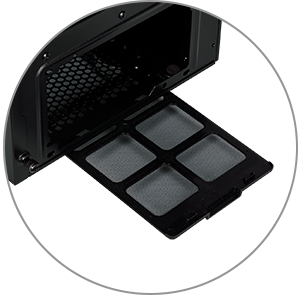

BOTTOM
Core Chassis Specifications | |
---|---|
Case Edition | 275R Airflow |
Case Form Factor | Mid Tower |
Motherboard Form Factor |
|
I/O, Bays & Expansion | |
---|---|
Front/Side/Top Panel I/O |
|
Drive Bays |
|
Standard Expansion Slots | 7 |
Vertical Expansion Slots | 2 |
Fans & Filters | |
---|---|
Fan Bays |
|
Fans Included | 3 x 120mm |
Fan Controller/Hub | |
Dust Filters |
|
Liquid Cooling Support | |
---|---|
Front Radiator Compatibility | 1 x 120/140/240/280/360mm |
Top Radiator Compatibility | 1 x 120/240mm |
Bottom Radiator Compatibility | |
Rear Radiator Compatibility | 1 x 120mm |
Side Radiator Compatibility |
Clearances | |
---|---|
Max CPU Cooler Height | 170 mm |
Max GPU Card Length | 370 mm |
Cable Routing Space |
Side Panels | |
---|---|
Window/s | Yes |
Window Configuration | 1 x Main Side |
Window Construction | Tempered Glass |
LED Lighting Functionality | |
---|---|
LED Lighting | No |
LED Lighting Emitters | |
LED Lighting Colour | |
LED Lighting Support & Control |
Power Supply Compatibility | |
---|---|
PSU Included | No |
PSU Wattage (If Included) | |
PSU 80+ Rating (If Included) | |
PSU Support | ATX |
PSU Mounting Location | Bottom Mount, Rear |
Max PSU Length | 180 mm |
Chassis Physical Specifications | |
---|---|
Colour | Black |
Chassis Contruction Materials | Steel / Plastic |
Dimensions | 216 x 455 x 457 (WxHxD mm) |
Weight | 6.9 kg (Approx) |
