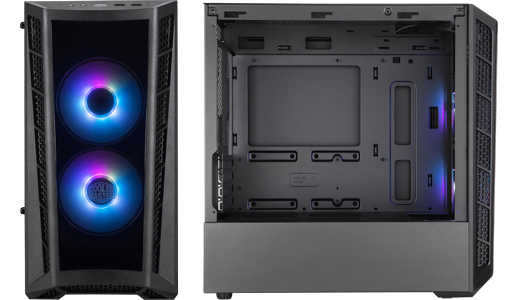

MasterBox MB320L ARGB Tempered Glass Small Form Factor Chassis by CoolerMaster

A STUNNING CASE FOR THOSE WHO PREFER SMALLER FORM
Introducing the MasterBox MB320L ARGB Mini Tower from CoolerMaster, Boasting two pre-installed ARGB fans and honeycomb mesh ventilation on either side of the DarkMirror front panel. The DarkMirror front panel is smoked a shade darker to sharpen the contrast of the ARGB fans pre-installed behind it, highlighting its best features. This Case has high potential for both air-cooled and liquid-cooled builds with front, top, and rear ventilation with the possibility of mounting additional fans and radiators. Upholding the award-winning principles of the MB Series, versatility is paired with presentation to ensure that any gaming system built inside the MasterBox MB320L ARGB looks as good as it performs.
Add More Contrast with the DarkMirror Front Panel

MAKE IT YOUR OWN WITH DUAL ARGB FANS
The front panel of the MB320L houses two preinstalled 120mm ARGB fans which can be managed by the motherboard and connected with the included splitter allowing you to create a comprehensive ARGB lighting system, the guys at CoolerMaster have also opted to tint the front panel to create the DarkMirror effect, shading light to add contrast to illuminated components.
Keep Your System Super Cool

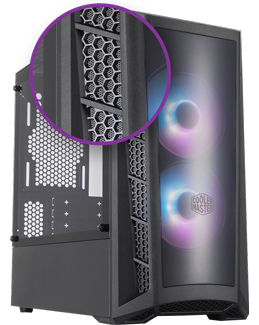

SUPERSIZED MESH INTAKES
The CoolerMaster MB320L features large mesh intakes that span each side of the front panel to provide additional airflow to key components of your system, increasing both lifespan and performance.
Show off Your Build with Pride

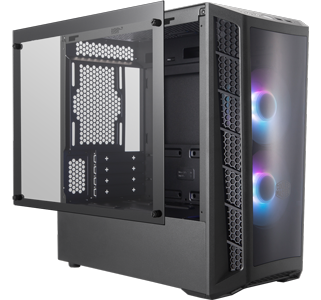

BEAUTIFUL TEMPERED GLASS SIDE PANEL
Hardware, custom-loop cooling, and the pure pride of the builder is shown in panoramic view through an edge-to-edge tempered glass side panel.
Intuitive Space Saving Design

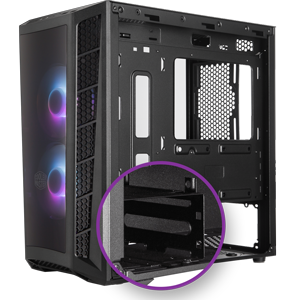

ADAPTABLE DRIVE CAGE
Due to it's small form factor CoolerMaster have included an adaptable drive cage which can be shifted towards the front of the case to provide additional PSU space or towards the back of the case to accomodate for additional radiator space, it can also be completely removed, perfect for modding enthusiasts who appreciate modular design.
Cooling Options Available for Both Air and Liquid Cooling

AIR COOLING SUPPORT
The MB320L has support for up to six fans located in the front, top and rear of the chassis.
Comprehensive I/O at your Fingertips

2X USB 3.2 TYPE-A

1X 3.5MM HEADPHONE JACK

1X 3.5MM MICROPHONE JACK
Core Chassis Specifications | |
---|---|
Case Edition | MasterBox MB320L ARGB |
Case Form Factor | MicroATX |
Motherboard Form Factor |
|
I/O, Bays & Expansion | |
---|---|
Front/Side/Top Panel I/O |
|
Drive Bays |
|
Standard Expansion Slots | 4 |
Vertical Expansion Slots |
Fans & Filters | |
---|---|
Fan Bays |
|
Fans Included | 2 x 120mm w/ Addressable RGB LEDs |
Fan Controller/Hub | |
Dust Filters | Front |
Liquid Cooling Support | |
---|---|
Front Radiator Compatibility | 1 x 120/140/240/280mm |
Top Radiator Compatibility | 1 x 120/240mm |
Bottom Radiator Compatibility | |
Rear Radiator Compatibility | 1 x 120mm |
Side Radiator Compatibility |
Clearances | |
---|---|
Max CPU Cooler Height | 166 mm |
Max GPU Card Length | 344 mm |
Cable Routing Space | 18 ~ 22 mm |
Side Panels | |
---|---|
Window/s | Yes |
Window Configuration |
|
Window Construction | Tempered Glass |
LED Lighting Functionality | |
---|---|
LED Lighting | Yes |
LED Lighting Emitters | Included Addressable LED Fan/s |
LED Lighting Colour | RGB (16.7 Million Colours) |
LED Lighting Support & Control |
Power Supply Compatibility | |
---|---|
PSU Included | No |
PSU Wattage (If Included) | |
PSU 80+ Rating (If Included) | |
PSU Support | ATX |
PSU Mounting Location | Bottom Mount, Rear |
Max PSU Length | 325 (140 with HDD Cage in backmost position) mm |
Chassis Physical Specifications | |
---|---|
Colour | Black |
Chassis Contruction Materials | |
Dimensions | 217.5 x 410 x 435.5 (WxHxD mm) |
Weight | 5.47 kg (Approx) |
