Cooler Master MasterBox NR200P Windowed Mini-ITX/DTX Mini Tower PC Case

  • Sale
  • Regular price £100.00
Taxes Included. Free Shipping.

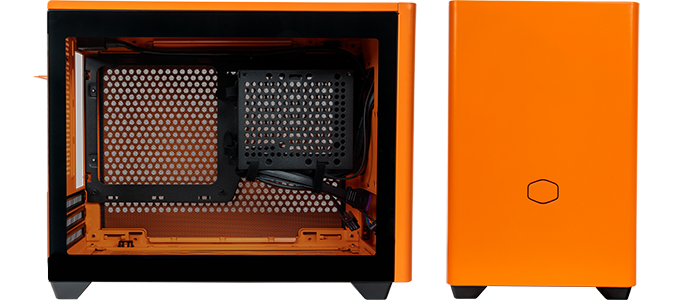

Sunset Orange Masterbox NR200P Tempered Glass Mini Tower from CoolerMaster

Cyan NR200P

SMALL FORM FACTOR WITHOUT SACRIFICE

The Masterbox NR200P returns with four brand new fan chosen colourways! Boasting features usually found in large ATX cases whilst retaining a space-efficient form factor. Every feature is thoughtfully laid out in an 18-liter space to maximize component compatibility, thermal efficiency, and ease of assembly. Keep cool with a highly vented side panel, or look cooler with a crystal-clear tempered glass panel; both are included to satisfy performance and style preferences. Fit large graphics cards in the 3-slot capable NR200P, or utilise the two vertical cards slots with the included PCI riser to turn graphics cards and heads by making the GPU the centerpiece of the PC. Seven possible fan mounts, ample ventilation, and generous liquid and air-cooler clearances keep even the most powerful systems running at their optimum temperatures and speeds. The chassis frame is wrapped in a sleek and tasteful powder-coated steel chassis that makes a statement on a desk.

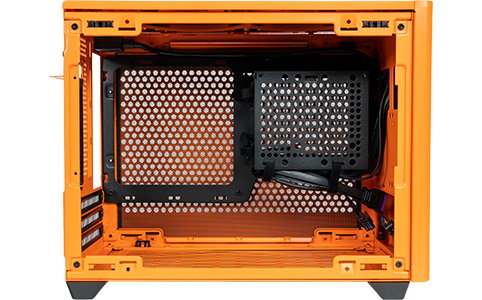

Unrestricted Cooling Potential

4K Recording

CHOOSE YOUR CONFIGURATION

The NR200P can house up to 7 fans in total for every cooling configuration imaginable. Two 120mm Sickleflow fan are included. The compact structure can efficiently house CPU coolers up to 155mm in height and radiators up to 280mm in length, so even the hottest running hardware can’t be held back.

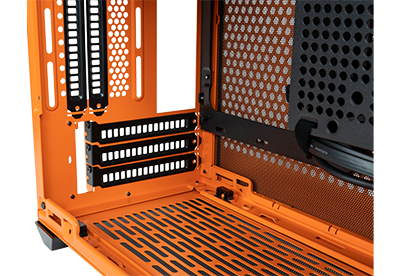

Triple-Slot GPU Support!

back

INCLUDED VERTICAL RISER CABLE

Triple slot GPUs are supported with a maximum length of 330mm and maximum width of 156mm allowing the fitment of large high-end graphics cards. A custom-sized riser cable is included to mount a graphics card vertically to showcase it, or allow radiator mounting at the bottom of the chassis to keep the system running as cool as it looks.

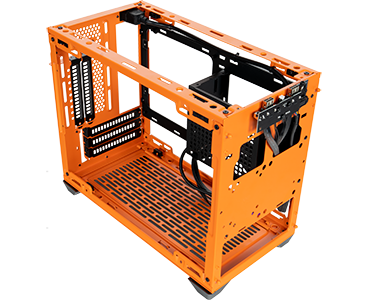

360 Degree Accessibility

TOOL-FREE ACCESSIBILITY

All external panels, including the tempered glass and top mounted fans are secured with pins for easy removal, facilitating quick access to the internals without the use of tools.

4K Recording

ADVANCED DISASSEMBLY

Every panel and frame part of the NR200P can be dismantled. Screws are used to secure the frame parts to allow advanced disassembly and multiple angles to easily work inside of the chassis.

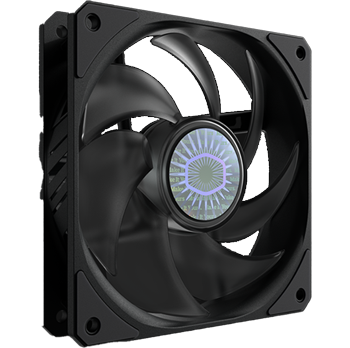

Two Sickleflow PWM Fans Included

back

KICK START YOUR COOLING

Newly Optimised fan blade design with updated curve that provides the best balance between airflow and static pressure to take the heat away while remain extremely silence.

The Tech Spec

Features Specification
Form Factor Mini-ITX
CPU Cooler Clearence 76mm (GPU in vertical position)
153mm (tempered glass side panel)
155mm (vented steel side panel)
PSU Clearence L: 330mm (incl. power connector)
H: 156mm (incl. power connector)
W: 60mm (triple slot)
PSU Form Factor SFX
SFX-L
Additional Notes

Single slot water-cooler GPUs or vertically mounted GPUs are recommended when using bottom radiator position, This product is only compatible for devices that support the PCI-E 3.0 specification. If you use this product with a motherboard that supports PCI-E 4.0, please enter into BIOS option and select PCI-E 3.0 before installation.0-

>

Specifications
Core Chassis Specifications
Case Edition NR200P
Case Form Factor Mini Tower
Motherboard Form Factor
  • Mini-DTX
  • Mini-ITX
I/O, Bays & Expansion
Front/Side/Top Panel I/O
  • 1 x Headphone/Mic Combo
  • 2 x USB 3.2 Gen1 Type-A
Drive Bays 2 x 3.5" / 3x 2.5" Internal
Standard Expansion Slots 3
Vertical Expansion Slots 2
Fans & Filters
Fan Bays
  • 6 x 120mm / 2x 140mm
  • 1 x 92mm
Fans Included 2 x 120mm
Fan Controller/Hub
Dust Filters
  • Bottom
  • Side
  • Top
Liquid Cooling Support
Front Radiator Compatibility
Top Radiator Compatibility
Bottom Radiator Compatibility 1 x 120/240mm
Rear Radiator Compatibility
Side Radiator Compatibility 1 x 120/140/240/280mm
Clearances
Max CPU Cooler Height 153 mm
Max GPU Card Length 330 mm
Cable Routing Space
Side Panels
Window/s Yes
Window Configuration 1 x Main Side
Window Construction Tempered Glass
LED Lighting Functionality
LED Lighting No
LED Lighting Emitters
LED Lighting Colour
LED Lighting Support & Control
Power Supply Compatibility
PSU Included No
PSU Wattage (If Included)
PSU 80+ Rating (If Included)
PSU Support SFX / SFX-L
PSU Mounting Location Bottom Mount, Front
Max PSU Length 130 mm
Chassis Physical Specifications
Colour Orange
Chassis Contruction Materials SGCC / ABS Plastic / Tempered Glass
Dimensions 376 x 185 x 292 (WxHxD mm)
Weight 5.93 kg (Approx)
