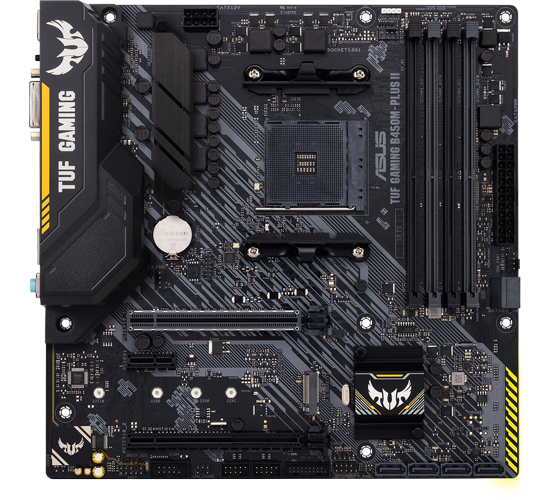

DURABLE. STABLE. RELIABLE.
The TUF Gaming B450M-PLUS II is designed, engineered and tested to thrive in conditions other motherboards would struggle, built from military grade components, an amped-up power and comprehensive cooling solutions like, VRM heatsinks, PCH heatsinks and Fan XPERT 2+ support. Combined with a single M.2 slot, USB 3.2 Gen2 Type-A and Type-C connectivity, and AURA SYNC RGB support the B450M-PLUS II has what it takes to deliver the rock solid performance with unwavering gaming stability that is required by Ryzen 3rd Generation CPUS.
AMD B450 Chipset
3rd/2nd/1st GEN AMD RYZEN CPU Compatibility
Mini-ATX Form Factor
Built to Take the Strain
POWER DELIVERY ENHANCEMENTS
With upgraded power delivery and comprehensive cooling options to fuel the latest AMD Ryzen CPUs, plus support for faster storage and connectivity, TUF GAMING B450M-PLUS II is the perfect foundation for your next high-core-count battle rig.
The integrated Digi+ VRM voltage-regulator module (VRM) is one of the finest in the industry, ensuring ultra-smooth and ultra-clean power delivery to the CPU at all times.
Certified military-grade TUF chokes deliver rock-steady power to the CPU, improving system stability.
Cooler by Design

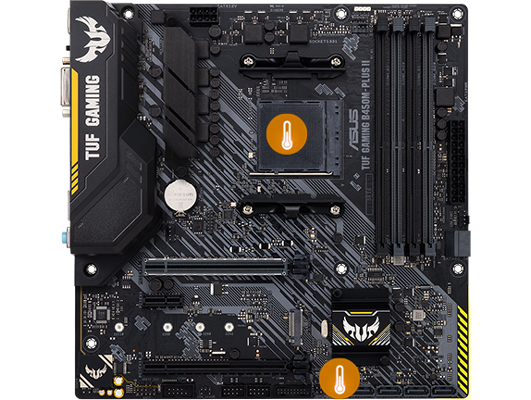

MULTIPLE TEMPERATURE SOURCES
Each header can be set to monitor and react to two user-configurable thermal sensors for workload-based cooling, and all settings can be easily managed by Fan Xpert 2+ or via the UEFI.
The Software that gives you Complete Control

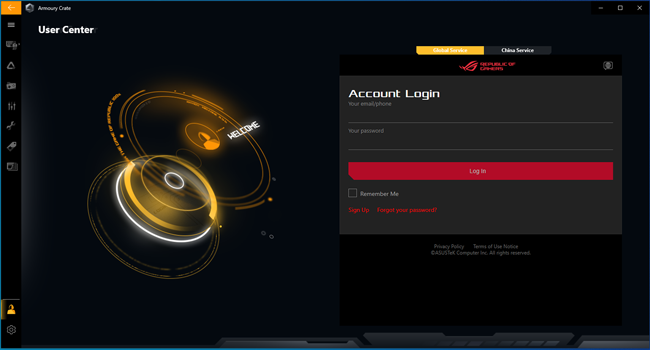

ASUS ARMORY CRATE
Armoury Crate is a new software utility designed to give you centralised control of supported gaming products. From a single intuitive interface, Armoury Crate lets you easily customise RGB lighting and effects for every compatible device in your arsenal and synchronise them with Aura Sync for uniﬁed system lighting effects. You can also turn on the AI Noise-Canceling Microphone function for crystal-clear in-game voice communication. The software also provides control of settings for a select and growing number of products, including keyboard and mouse preferences as well as laptop overclocking and fan speeds, making it easier to tune the look and feel of your system. Armoury Crate even features dedicated product registration and news areas to help you stay in touch with the gaming community.
Get the Transfer Speeds you Deserve

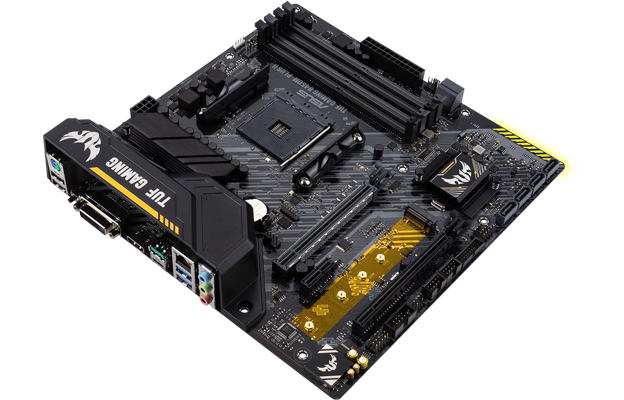

PCIE 3.0 M.2 STORAGE
M.2 slot supports up to 22110 and data-transfer speeds of up to 32 Gbps via x4 PCI Express 3.0 bandwidth, enabling quicker boot-up and app load times with OS or application drives.
Protection for Your PCIe Slots
SafeSlot is the PCIe slot reinvented by ASUS and engineered to provide superior retention and shearing resistance. Manufactured in a single step using a new insert-molding process, SafeSlot integrates fortifying metal for an inherently stronger slot, which is then firmly anchored to the PCB through additional solder points.
Connections at your Fingertips
Little Things Make a Big Difference
TRUSTWORTHY STABILITY AND COMPATIBILITY
TUF Gaming motherboards are designed to be easy to set up and configure just the way you want —even for first-time builders. The TUF Gaming Alliance ecosystem makes selecting compatible parts easy, while Armoury Crate software offers full control of system settings via a single dashboard. TUF Gaming motherboards give you everything you need to build your dream gaming rig without adding complexity.
An exclusive circuit design with built-in voltage regulators to protect your motherboard from damage caused by unexpected high-level voltages from unstable or inferior power supplies.
DRAM OVERCURRENT PROTECTION
On-board resettable fuses prevent overcurrent and short-circuit damage. This extends beyond I/O ports to DRAM to safeguard the lifespan of your system and connected devices.
STAINLESS-STEEL BACK I/O
Corrosion-resistant stainless-steel back I/O panels bonded with chromium oxide have a lifespan that's three times longer than ordinary panels.
Guard is a hardware-level network protection feature that integrates advanced signal-coupling technology and premium anti-EMI surface-mounted capacitors to improve throughput and ensure a more reliable connection.
|Product Type||Motherboard - micro ATX|
|Chipset Type||AMD B450|
|Processor Socket||Socket AM4|
|Max Processors Qty||1|
|Compatible Processors||Athlon, Ryzen (supports 1st,2nd and 3rd Generation Ryzen / Ryzen with Radeon Vega Graphics and 2nd Generation Ryzen with Radeon Graphics / Athlon with Radeon Vega Graphics)|
|Max Size||128 GB|
|Bus Clock||2400 MHz, 2133 MHz, 2666 MHz, 2800 MHz (O.C.), 3000 MHz (O.C.), 3200 MHz (O.C.), 3400 MHz (O.C.), 3466 MHz (O.C.), 3733 MHz (O.C.), 3600 MHz (O.C.), 3866 MHz (O.C.), 4000 MHz (O.C.), 4400 MHz (O.C.), 3533 MHz (O.C.)|
|Supported RAM Integrity Check||Non-ECC, ECC|
|Registered or Buffered||Unbuffered|
|Features||Dual channel memory architecture|
|Type||HD Audio (8-channel)|
|Audio Codec||Realtek ALC887|
|Compliant Standards||High Definition Audio, DTS Custom|
|Network Controller||Realtek RTL8111H|
|Network Interfaces||Gigabit Ethernet|
Expansion / Connectivity
|Expansion Slots||1 x CPU ¦ 4 x DIMM 288-pin ¦ 1 x PCIe 3.0 x16 (x16 mode (with 1st, 2nd and 3rd Generation Ryzen CPU); x8 mode (with Ryzen with Radeon Vega Graphics and 2nd Generation Ryzen with Radeon Vega Graphics); x4 mode (with Athlon with Radeon Vega Graphics)) ¦ 1 x PCIe 2.0 x1 ¦ 1 x PCIe 2.0 x16 (x4 mode)|
|Storage Interfaces||SATA-600 -connectors: 8 x 7pin Serial ATA - RAID 0 / RAID 1 / RAID 10 ¦ SATA-600 / PCIe 3.0 -connectors: 1 x M.2|
|Interfaces||1 x LAN (Gigabit Ethernet) ¦ 1 x PS/2 keyboard / mouse ¦ 1 x audio line-in - mini-jack ¦ 1 x audio line-out - mini-jack ¦ 1 x microphone - mini-jack ¦ 2 x USB 2.0 ¦ 1 x HDMI ¦ 1 x DVI-D ¦ 1 x USB 3.2 Gen 2 ¦ 1 x USB-C Gen1 ¦ 2 x USB 3.2 Gen 1|
|Internal Interfaces||4 x USB 2.0 - header ¦ 2 x USB 3.2 Gen 1 - header ¦ 1 x serial - header ¦ 1 x SPDIF out - header ¦ 1 x audio - header ¦ 1 x speaker - header|
|Power Connectors||24-pin main power connector, 8-pin ATX12V connector|
|BIOS Features||BIOS FlashBack, UEFI BIOS|
|Sleep / Wake Up||Wake on LAN (WOL)|
|Hardware Features||Jack retasking, ASUS Q-Design, ESD Guards, ASUS TurboV EVO, Q-DIMM, ASUS EZ DIY, Q-Slot, CrashFree BIOS 3, audio jack detect technology, ASUS EPU (Energy Processing Unit), ASUS DIGI+ VRM, AMD CrossFireX technology support, Preboot eXecution Environment (PXE), ASUS Stainless Steel Back I/O, ASUS Fan Xpert 2+, TUF LANGuard, ASUS Overvoltage Protection, TUF Components, ASUS SafeSlot, ASUS TUF Protection, ASUS Aura Sync, Armoury Crate|
|Included Accessories||1 x M.2 screw, I/O back cover, TUF stickers|
|Cables Included||2 x Serial ATA cable|
|Software Included||Drivers & Utilities, ASUS AI Suite III, ASUS EZ Update, PC Cleaner, ASUS EZ Flash 3, DAEMON Tools, WinRAR, Norton AntiVirus (60 days trial), ASUS TUF GAMING CPU-Z|
