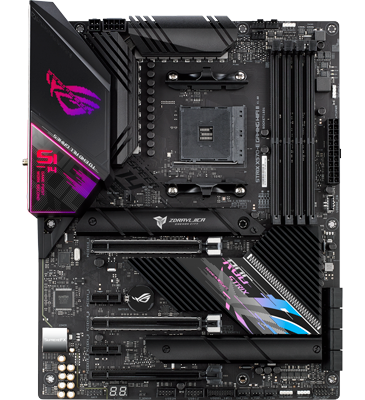

ROG STRIX X570-E GAMING WIFI II AMD X570 Gaming ATX Motherboard
A WHOLE NEW IMMERSIVE EXPERIENCE
The ROG Strix X570-E Gaming WiFi II motherboard delivers the quintessential ROG experience. It is bristling with features such as new passive chipset cooling, WiFi 6E, plus improved overclocking and audio performance, PCIe 4.0 technology and Type-C connectivity; along with DIY-friendly conveniences to help seasoned builders and beginners alike. With futuristic aesthetics complemented by onboard RGB illumination and full ASUS Aura support, the Strix X570-E Gaming WiFi II motherboard has everything you need to build a formidable gaming rig that rises above the rest.
AMD X570 Chipset
AM4 4K UHD Resolution
AMD 2nd/3rd Gen Ryzen Compatible CPUs
ATX Form Factor

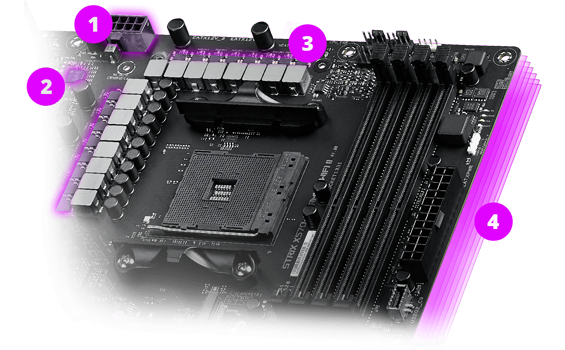

Heavily Optimised Power Design
1. PROCOOL II POWER CONNECTOR
ProCool II sockets are built to tight specifications to ensure flush contact with the PSU power lines and have a metal armour for improved heat dissipation. The connector’s lower impedance helps prevent hotspots and improves reliability.
2. DIGI+ POWER CONTROL
The built-in Digi+ voltage-regulator module (VRM) is one of the finest in the industry, ensuring ultra-smooth and clean power delivery to the CPU.
3. TEAMED POWER STAGES
ROG Strix X570-E Gaming WiFi II has a CPU VRM with 12+4 power stages that combine high-side and low-side MOSFETs and drivers into a single package, delivering the power and efficiency that the latest AMD processors demand.
4. 6-LAYER PCB
The PCB design quickly dissipates heat around the VRM to improve overall system stability and provide the CPU with more overclocking headroom.

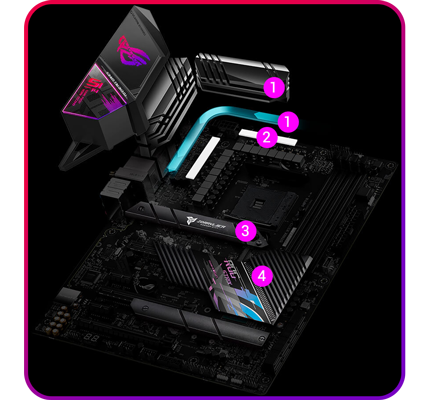

Incredible Cooling Performance
1. VRM HEATSINK AND L-SHAPED HEATPIPE
The two VRM heatsinks are connected by an L-shaped heat pipe to provide ample surface area and mass to deal with the heat generated by the power array.
2. THERMAL PADS
A high-quality thermal pad helps transfer heat from the inductor and phase array to the heatsink.
3. DUAL M.2 HEATSINKS
The M.2 heatsinks keeps the M.2 SSD at optimum operating temperature for consistent performance and reliability.
4. PASSIVE CHIPSET HEATSINK
A dedicated chipset heatsink draws heat away to maintain optimum operating temperatures.
Boasting The Latest Technologies

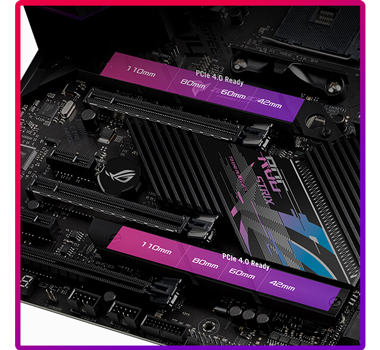

DUAL PCIE 4.0 M.2
Dual PCIe 4.0 M.2 slots that are compatible with the 22110 socket provide maximum storage flexibility and the fastest data speeds available with the AMD Zen 3 platform. The slots also offer

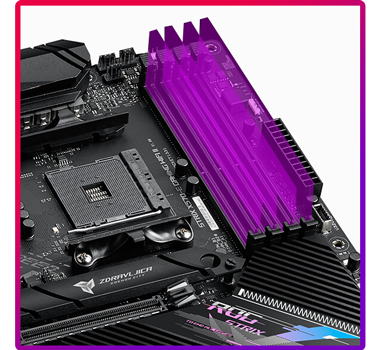

ASUS OPTIMEM II
The ROG Strix X570-E Gaming WiFi II supports up to 128 GB DDR4 memory across four slots. OptiMem II technology improves trace layout to significantly reduce vias and crosstalk, enhancing memory stability and compatibility while giving memory kits higher frequency margins.

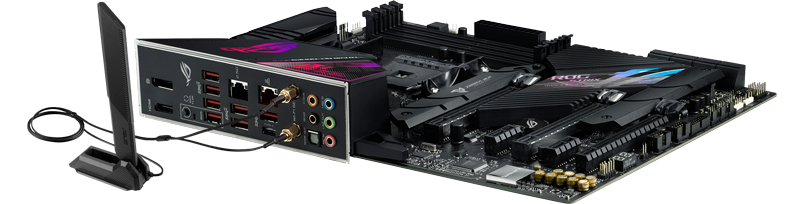

Maximise Your Connectivity
WIFI 6E
Onboard WiFi 6E technology takes advantage of the newly available radio spectrum in the 6 GHz band. It delivers ultrafast wireless networking speeds and improved capacity as well as better performance in dense wireless environments.
REALTEK 2.5GB ETHERNET
Onboard 2.5 Gb Ethernet gives your wired connection a boost, with up to a 2.5X improvement over standard Ethernet connections for faster file transfers, smoother lag-free gaming and high-res video streaming.
Undeniably ROG Strix
STRIKING AESTHETICS
The ROG Strix X570-E Gaming WiFi II boasts striking aesthetics with a pixelated ROG logo and cyber text across the VRM cover, as well as diagonal grooves that cut across the chipset heatsink and motherboard. Together, they combine to create a motherboard that’s distinctively ROG.
ASUS AURA SYNC
ROG Strix motherboards deliver sterling performance, accented by aesthetics to Outshine the Competition. ASUS Aura offers full RGB lighting control with a variety of functional presets for the built-in RGB LEDs as well as strips connected to the onboard RGB header — and it can all be synced with an ever-growing portfolio of Aura-capable ASUS hardware.

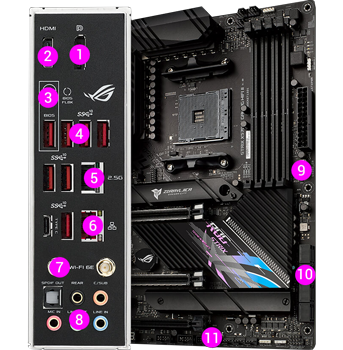

Section Title
1. 1X DISPLAYPORT 1.2
2. 1 X HDMI 2.0
3. BIOS FLASHBACK
4. 8X USB 3.2 GEN 2 PORTS
5. 1 X REALTEK 2.5GB ETHERNET
6. 1X INTEL I211-AT 1GB ETHERNET
7. WI-FI 6E
8. 1X OPTICAL S/PDIF OUT
9. HD AUDIO
10. 1X USB 3.2 GEN2 TYPE-C
11. 8X SATA 6GB/S
12. 2X USB 3.2 GEN 1 PORTS
General |
|
|---|---|
| Product Type | Motherboard - ATX |
| Chipset Type | AMD X570 |
| Processor Socket | Socket AM4 |
| Max Processors Qty | 1 |
| Compatible Processors | Ryzen (supports Ryzen 2000 Series/ 2000 G-Series/ 3000 Series/ 3000 G-Series/ 4000 G-Series/ 5000 Series/ 5000 G-Series) |
Supported RAM |
|
| Max Size | 128 GB |
| Technology | DDR4 |
| Bus Clock | 2400 MHz, 2133 MHz, 2800 MHz, 3000 MHz, 2666 MHz, 2933 MHz, 3400 MHz (O.C.), 3466 MHz (O.C.), 3733 MHz (O.C.), 3600 MHz (O.C.), 3866 MHz (O.C.), 4000 MHz (O.C.), 4133 MHz (O.C.), 4400 MHz (O.C.), 4266 MHz (O.C.), 4600 MHz (O.C.), 4800 MHz (O.C.), 3200 MHz, 5100 MHz (O.C.) |
| Supported RAM Integrity Check | Non-ECC, ECC |
| Registered or Buffered | Unbuffered |
| Features | Dual channel memory architecture |
Audio |
|
| Type | HD Audio (8-channel) |
| Audio Codec | SupremeFX (S1220A) |
| Compliant Standards | High Definition Audio, DTS Sound Unbound |
LAN |
|
| Network Interfaces | Gigabit Ethernet, 2.5 Gigabit Ethernet, 802.11a/b/g/n/ac/ax, Bluetooth 5.2 |
Expansion / Connectivity |
|
| Expansion Slots | 1 x CPU ¦ 4 x DIMM 288-pin ¦ 2 x PCIe 4.0 x16 (dual x8 mode; single card: x16 mode) ¦ 1 x PCIe 4.0 x16 (x4 mode) ¦ 2 x PCIe 4.0 x1 |
| Storage Interfaces | SATA-600 -connectors: 8 x 7pin Serial ATA - RAID 0 / RAID 1 / RAID 10 ¦ SATA-600 / PCIe 4.0 -connectors: 2 x M.2 |
| Interfaces | 1 x LAN (Gigabit Ethernet) ¦ 1 x audio line-in - mini-jack ¦ 1 x audio line-out - mini-jack ¦ 1 x microphone - mini-jack ¦ 1 x TOSLINK ¦ 7 x USB 3.2 Gen 2 ¦ 1 x audio line-out (center/subwoofer) - mini-jack ¦ 1 x audio line-out (rear) - mini-jack ¦ 1 x LAN (2.5Gigabit Ethernet) ¦ 1 x USB-C Gen2 ¦ 1 x DisplayPort ¦ 1 x HDMI |
| Internal Interfaces | 4 x USB 2.0 - header ¦ 1 x USB-C Gen2 - header ¦ 2 x USB 3.2 Gen 1 - header ¦ 1 x audio - header ¦ 1 x speaker - header |
| Power Connectors | 4-pin ATX12V connector, 24-pin main power connector, 8-pin ATX12V connector |
Features |
|
| BIOS Type | AMI |
| BIOS Features | BIOS FlashBack, UEFI BIOS, ASUS EZ Flash 3 |
| Sleep / Wake Up | Wake on LAN (WOL) |
| Hardware Features | Jack retasking, ASUS Q-Design, GameFirst, Q-DIMM, ASUS EZ DIY, Q-LED, Q-Slot, ASUS Extreme Engine Digi+, CrashFree BIOS 3, audio jack detect technology, ASUS EPU (Energy Processing Unit), ASUS TPU (TurboV Processing Unit), Q-Code, SupremeFX Shielding technology, Preboot eXecution Environment (PXE), LANGuard, ASUS SafeSlot, Sonic Radar III, Sonic Studio III, pre-mounted I/O shield, ASUS Aura Sync, Armoury Crate, ASUS ProCool II, M.2 Q-Latch, 5K Black Metallic Capacitors |
Miscellaneous |
|
| Included Accessories | Cable ties, thermistor cable, STRIX stickers, ROG thank you card, ROG key chain, ASUS Wi-Fi moving aerial, 1 x M.2 rubber package, M.2 Q-Latch |
| Cables Included | 4 x Serial ATA cable |
| Software Included | Drivers & Utilities, ROG CPU-Z, ASUS AI Suite III, ASUS Turbo App, Overwolf, DAEMON Tools, Antivirus, WinRAR, ASUS ROG RAMCache III, ROG GameFirst V, Sonic Studio Virtual Mixer, AIDA64 Extreme (60 days trial), ASUS AURA Creator |
| Width | 30.5 cm |
| Depth | 24.4 cm |
