TUF GAMING OC Radeon RX 6800XT RDNA2 Graphics Card by ASUS
A TUF PIECE OF KIT
Ready for action the TUF Gaming Radeon RX 6800 XT is a tenacious beast with a tough metal exterior, super efficient cooling and high performing components featuring the all-new breakthrough RNDA2 architecture - engineered to deliver powerhouse performance to all gamers. The AMD Radeon™ RX 6800XT graphics card powers a new generation of competitive and 4K gaming with vivid visuals, and elevated experiences in every game and every frame with powerful enhanced new compute units, AMD Infinity Cache, DirectX 12/PCIe 4.0 Support and 16GB of dedicated GDDR6 memory. Experience gaming with realistic lighting, shadows, and reflections along with rich detail thanks to DirectX® Raytracing (DXR), variable rate shading (VRS), and AMD FidelityFX features, optimised for AMD RDNA™ 2 architecture. The AMD Radeon 6800XT is engineered to deliver ultra-high frame rates and serious 4K resolution gaming.
4608 Stream Processors
16GB GDDR6 Memory
2065 MHz Core Clock
2310 MHz Boost Clock
Increased Fan Blade Count
A new generation of axial-tech fans has risen with an increased blade count across all three fans; 13 blades on the center with 11 blades on the auxillary fans, the barrier rings on the side fans have been streamlined to allow for more lateral intake to allow better airflow through the cooling array. The central fans additional blades and full-height ring boost static pressure to blast air directly onto the heat spreader, These fans have been designed specifically for a massive new heatsink that features more fins and a larger surface area than previous iterations.
Reverse Rotational Design
To assist with the specialised roles of the three fans, the rotational direction of the center fan has been reversed in order to reduce turbulent air inside of the cooling array to give you heightend thermal performance and with fan stop technology fans will only start to spin when GPU temperature hits 60°C reducing noise and increasing fan longevity when under a light load.
SMOOTHER AT A MICROSCOPIC LEVEL

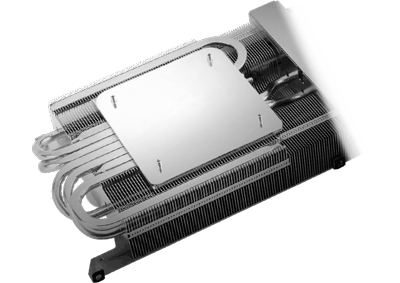

To ensure maximum thermal efficiency, MaxContact technology has been utilised to smooth the surface of the heat spreader at a microscopic level allowing for better contact with the GPU die giving you enhanced thermal transfer.
No Nonsense Metal Shroud

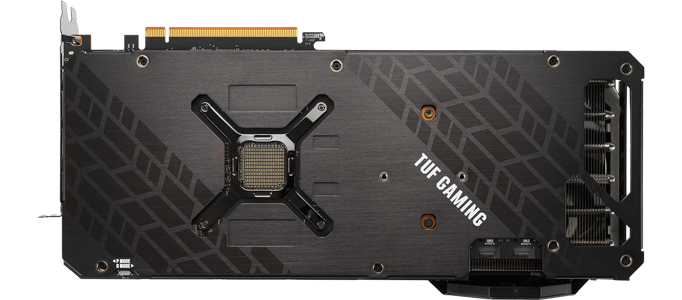

The underside of the card reveals further improvements. Most of the rear is swathed in a protective metal backplate that prominently features a wide vent. This vent allows hot air to escape towards the chassis exhaust fans instead of being recycled back into the GPU cooler. An included GPU bracket provides extra stability to the critical connection between die and heat spreader. Stainless steel is used for the I/O bracket to protect ports and provide a more secure mount. And a conveniently placed Dual Bios switch allows customisation of the card’s default performance profile without software.
Not Just a Pretty Face

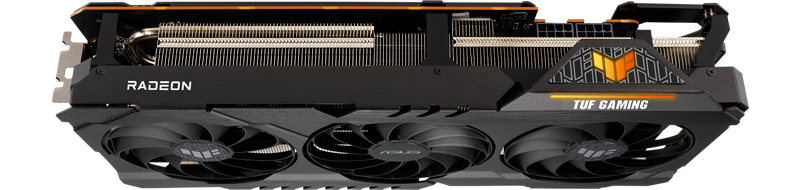

The front-side RGB element can be customized to display a range of aesthetic and functional effects, and also synced with other ASUS components to enable uniform lighting. To fulfill the power demands of the Radeon RX 6800 XT, two 8-pin power connectors are present, along with onboard LEDs that light up if PSU PCIe power connectors are not plugged in correctly. Structural pillars of a built-in reinforced metal frame are also visible here and add a literal layer of durability.
A Breakthrough Gaming Architecture
AMD RDNA™ 2 architecture is the foundation of next-generation gaming PCs and consoles. It is the bedrock of the upcoming revolution in PC gaming graphics and cloud gaming. AMD RDNA™ 2 elevates and unifies visual effects and gameplay across multi- gaming platforms, like no other graphics architecture before.
CONTRAST ADAPTIVE SHARPENING
CONTRAST ADAPTIVE SHARPENING
BRING OUT ALL THE DETAIL
Contrast Adaptive Sharpening (CAS) helps increase visual quality by enabling stunning visual sharpness with optional upscaling to restore detail lost after Temporal Anti-Aliasing (TAA) is applied. For games that support FidelityFX CAS, turning off Radeon™ Image Sharpening in Radeon™ Software to avoid over-sharpening is recommended.
|Chipset||Radeon RX 6800 XT|
|Edition||TUF GAMING OC|
|Manufacturing Process||7 nm|
|Cores & Clocks|
|Core Clock||2065, 2090 (OC Mode) MHz|
|Boost Clock||2310, 2340 (OC Mode) MHz|
|Video Memory (VRAM)|
|Memory Clock||16000 MHz|
|Memory Speed (Effective with DDR)|
|Memory Bus||256 Bit|
|Memory Bandwidth||512 GB/s|
|Memory Data Rate|
|Cooling Solution||Tri Fan (3)|
|Cooler Design||ASUS Triple Fan Cooler with RGB|
|I/O & Connectivity|
|Interface||PCIe 4.0 (x16) [PCIe 3.0 Backwards Compatible]|
|AMD CrossFire Support|
|AMD Freesync Support||Yes|
|AMD FreeSync Version||FreeSync™|
|Microsoft DirectX Support||12 API|
|Max. Concurrent Displays||4 Displays|
|Maximum Digital Resolution||7680x4320 (8K UHD)|
|Maximum Analog (VGA) Resolution|
|Peak Half Precision Compute Performance (FP16)||41.47 TFLOPs|
|Peak Single Precision Compute Performance (FP32)||20.74 TFLOPs|
|Peak Double Precision Compute Performance (FP64)|
|Power & Thermals|
|Graphics Card Power Connectors||2 x 8-pin PCIe|
|Graphics Card TDP/Power|
|Minimum Recommended PSU||750 W|
|Maximum GPU Temperature|
|Low Profile Support||N/A|
|Dimensions||320 x 140.2 x 57.8 mm|
