ROG Strix LC OC AMD Radeon RX 6800XT RDNA2 Graphics Card by ASUS
A LIQUID COOLING LEVIATHAN
Deep in the depths of the ASUS R&D Labs you will find a liquid cooled leviathan capable of drawing out the maximum power from the newest generation of radeon chips, featuring the all-new breakthrough RNDA2 architecture - engineered to deliver powerhouse performance to all gamers. The AMD Radeon™ RX 6800XT graphics card powers a new generation of competitive and 4K gaming with vivid visuals, and elevated experiences in every game and every frame with powerful enhanced new compute units, AMD Infinity Cache, DirectX 12/PCIe 4.0 Support and 16GB of dedicated GDDR6 memory. Experience gaming with realistic lighting, shadows, and reflections along with rich detail thanks to DirectX® Raytracing (DXR), variable rate shading (VRS), and AMD FidelityFX features, optimised for AMD RDNA™ 2 architecture. The AMD Radeon 6800XT is engineered to deliver ultra-high frame rates and serious 4K resolution gaming.
4608 Stream Processors
16GB GDDR6 Memory
2110 MHz Core Clock
2360 MHz Boost Clock
A Dynamic Cooling Solution

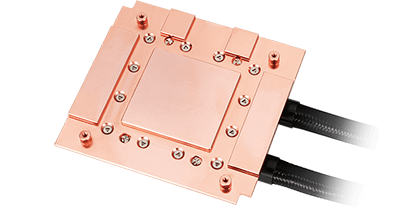

FULL-COVERAGE COLD PLATE
A Custom-designed cold plate covers the whole GPU die and the onboard GDDR6 memory to bring the full benefits of liquid-cooling to the components most responsible for raw performance.

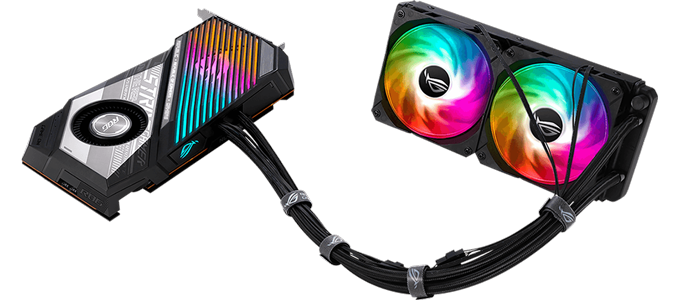

Top-Tier Cable Management
CLEVER COMPATIBILITY
The LC utilises 600mm tubing to enable compatibility with large chassis or builds that feature an AIO CPU cooler. The radiator fan cables can be connected directly to the card and secured with included cable ties to keep everything organised.

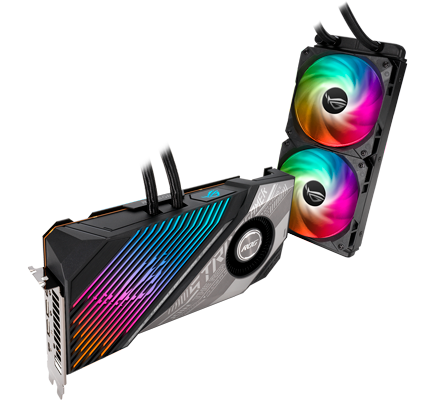

Bring Ambience to Your System
ASUS AURA SYNC
You won't find the Strix LC hiding in the shadows. Instead, this denizen of the deep flaunts its power with addressable RGB lighting that shines through striations in the shroud, an illuminated ROG logo, and two ARGB radiator fans and with ASUS Aura Sync utilise millions of colours and preset effects to create your own colour scheme and sync your lighting across other Aura Sync products.
A Breakthrough Gaming Architecture
RDNA2 ARCHITECTURE
AMD RDNA™ 2 architecture is the foundation of next-generation gaming PCs and consoles. It is the bedrock of the upcoming revolution in PC gaming graphics and cloud gaming. AMD RDNA™ 2 elevates and unifies visual effects and gameplay across multi- gaming platforms, like no other graphics architecture before.
AMD FidelityFX
CONTRAST ADAPTIVE SHARPENING
OFF
CONTRAST ADAPTIVE SHARPENING
ON
BRING OUT ALL THE DETAIL
Contrast Adaptive Sharpening (CAS) helps increase visual quality by enabling stunning visual sharpness with optional upscaling to restore detail lost after Temporal Anti-Aliasing (TAA) is applied. For games that support FidelityFX CAS, turning off Radeon™ Image Sharpening in Radeon™ Software to avoid over-sharpening is recommended.
| Key Specifications | |
|---|---|
| Chipset | Radeon RX 6800 XT |
| Edition | ROG Strix LC OC |
| Manufacturing Process | 7 nm |
| Microarchitecture | RDNA 2 |
| Cores & Clocks | |
|---|---|
| Streams | 4608 |
| Core Clock | 2110 MHz |
| Boost Clock | 2360 MHz |
| Video Memory (VRAM) | |
|---|---|
| Memory Size | 16GB |
| Memory Type | GDDR6 |
| Memory Clock | 16000 MHz |
| Memory Speed (Effective with DDR) | |
| Memory Bus | 256 Bit |
| Memory Bandwidth | 512 GB/s |
| Memory Data Rate | |
| Cooling | |
|---|---|
| Cooling Solution | All-in-One Water Cooling |
| Cooler Design | |
| Fitted/Included Backplate | Yes |
| I/O & Connectivity | |
|---|---|
| Interface | PCIe 4.0 (x16) [PCIe 3.0 Backwards Compatible] |
| Connectivity |
|
| Visuals | |
|---|---|
| AMD CrossFire Support | |
| AMD Freesync Support | Yes |
| AMD FreeSync Version | FreeSync™ |
| HDR Support | Yes |
| Microsoft DirectX Support | 12 API |
| Max. Concurrent Displays | 4 Displays |
| Maximum Digital Resolution | 7680x4320 (8K UHD) |
| Maximum Analog (VGA) Resolution | |
| Compute Performance | |
|---|---|
| Peak Half Precision Compute Performance (FP16) | 41.47 TFLOPs |
| Peak Single Precision Compute Performance (FP32) | 20.74 TFLOPs |
| Peak Double Precision Compute Performance (FP64) | |
| Power & Thermals | |
|---|---|
| Graphics Card Power Connectors | 2 x 8-pin PCIe |
| Graphics Card TDP/Power | |
| Minimum Recommended PSU | 750 W |
| Maximum GPU Temperature | |
| Physical | |
|---|---|
| Width | 2.2 Slot |
| Low Profile Support | N/A |
| Dimensions | 277 x 130.8 x 43.6 mm |
| Package Type | Retail |
