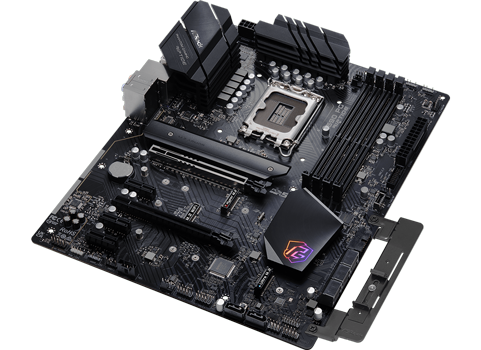

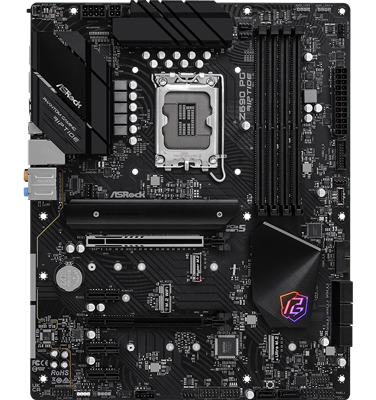

ASRock Z690 PG Riptide DDR4 12th Gen Intel ATX Motherboard

ASRock Z690

A FRESH DESIGN FOR GAMERS

The ASRock Z690 PG Riptide is here to herald the arrival of the new 12th generation Intel core processors; with a new generation comes new performance thresholds and ASrock aren't shy when it comes to implementing new technologies. The Z690 PG Riptide boasts a 13 phase DR MOS power design, supports DDR4 4800MHz (OC) memory, PCIe 5.0, incredible storage support with 2x Gen4x4 m.2 + 1x Gen3x4 m.2, Killer 2.5G LAN, 1x m.2 key for WiFi, Type-C connectivity, HD audio and even includes the ASRock graphics card holder to reduce sag and protects both your GPU and slot. Plus with Polychrome RGB support you can control the built-in RGB illumination as well as syncing compatible LED illuminated devices together to create your own beautiful lighting ecosystem using the onboard RGB and ARGB headers. Perfect for daily users and enthusiasts alike Welcome the Z690 PG Riptide.

Intel Z690 Chipset

LGA 1700 CPU Socket

12th Generation Intel Compatible CPUs

ATX Form Factor

Heavily Optimised VRM Design

DR.MOS

Dr.MOS is the integrated power stage solution which is optimized for synchronous buck-set down voltage applications! Compared to traditional discrete MOSFETs, it intelligently delivers higher current for each phase, thus providing improved thermal result and superior performance.

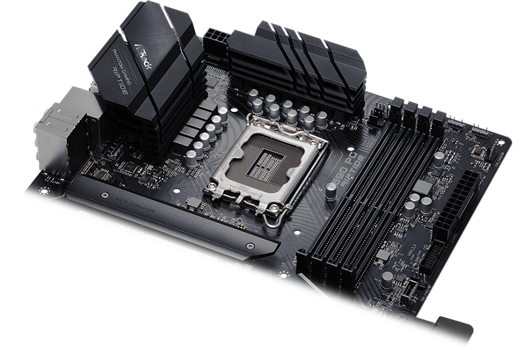

13 POWER PHASE DESIGN

Featuring sturdy components and completely smooth power delivery to the CPU. Plus, it offers unmatched overclocking capabilities and enhanced performance with the lowest temperature for advanced gamers as well.

4K Recording

SIX LAYER PCB

The 6 Layer PCB provides stable signal traces and power shapes delivering lower temperature and higher energy efficiency for memory overclocking! Thus, it's able to support the latest memory modules with most extreme memory performance!

2OZ COPPER PCB

2 ounce copper inner layers that provide stable signal traces and power shapes! Delivering lower temperature and higher energy efficiency for overclocking.

The Latest Generation

4K Recording

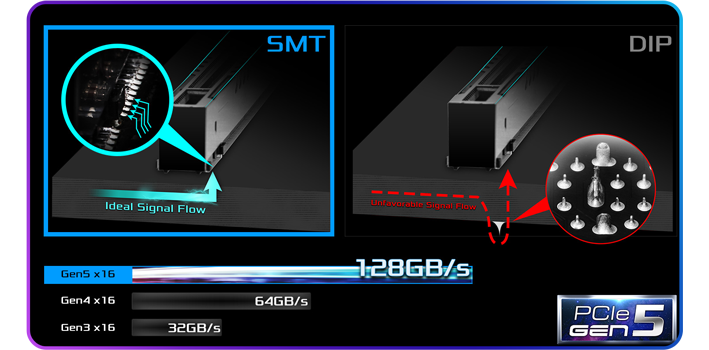

PCIE 5.0 + SURFACE-MOUNT TECH

Compared to conventional DIP style PCIe slot, the SMT type PCIe slot improves signal flow and maximize stability under high speed, a key breakthrough to fully support the lighting speed of the latest PCIe 5.0 standard. The latest PCI Express 5.0 is capable to perform a breathtaking bandwidth of 128GBps, ready to unleash the full potential of future high end graphic cards.

Maximise Your Storage Capabilities

4K Recording

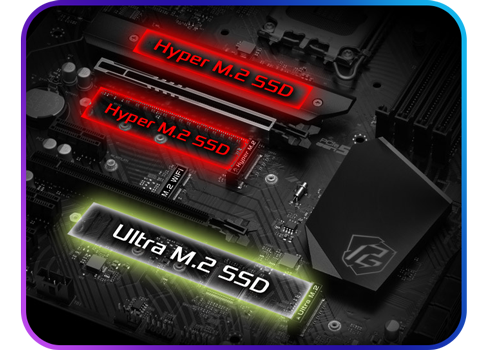

PCIE GEN4 X4 FOR SSD

This motherboard is capable of accommodating multiple M.2 storage devices, two of which can support PCI Express 4.0 M.2 SSD, capable of performing at twice the speed compared to previous 3rd generation, giving a lightning fast data transferring experience.

Stay Connected with Ease

4K Recording

KILLER™ ETHERNET E3100

The Killer E3100 2.5 Gbps Ethernet controller is designed specially for competitive gamers and performance-hungry users. The enhanced detection and prioritization engine provides the ultimate networking experience for gaming and multimedia applications.

Surround yourself in Stunning Sound

4K Recording

NAHIMIC AUDIO

Whether you are using headphones, a headset, external or internal speakers, via USB, Wi-Fi, analog output or even HDMI, Nahimic Audio offers you the most engaging listening experience, vibrant and rich with details. The Sound Tracker is a visual indicator that points out the directions from which predominant sounds are coming. Each sound is properly positioned in 360° on a radar for a full immersion during the game.

Create a Beautiful Ecosystem

4K Recording

POLYCHROME RGB SYNC SUPPORT

In addition to the built-in RGB illumination, it also features onboard RGB headers and an addressable RGB header that allows the motherboard to be connected to compatible LED devices such as strips, CPU fans, coolers, chassis and so on. Users may also synchronise RGB LED devices across the Polychrome RGB Sync-certified accessories to create their own unique lighting effects

Specifications
Core Specifications
Edition Z690 PG Riptide
Form Factor ATX
CPU Socket 1700
Chipset Intel Z690
RAM Memory Support
Memory Type DDR4
Memory Channel Dual (2)
Memory Type (ECC) Non-ECC
Memory Type (R/U)
Memory Speed (Mhz)
  • DDR4 - 3200
  • DDR4 - 4800(OC)
Max. Memory Capacity 128GB (4x32GB)
Audio
Audio Realtek ALC897 7.1 HD Audio
Graphics Support
Primary GPU Interface PCIe 5.0 (x16)
NVIDIA SLI Support N/A
AMD CrossFire Support Supported
Integrated Graphics Requires Processor Graphics or Discrete GPU
On-Board Graphics Connectors HDMI 2.1
Internal Connectivity
Expansion Slots
  • 1 x M.2 Key E (Occupied by Wi-Fi Module)
  • 1 x M.2 Key E (Supports Wi-Fi modules)
  • 1 x M.2, 22-42/60/80, PCIe Gen4x4
  • 1 x M.2, 22-60/80, PCIe Gen4x4
  • 1 x M.2, 22-60/80/110, PCIe/SATA
  • 3 x PCIe 3.0 x1
  • 2 x PCIe 5.0 x16
  • 8 x SATA 6GB/s
SATA Support SATA3
RAID Support via Intel® SATA RAID 0/1/10/5
Storage Mode Support
  • RAID 0
  • RAID 1
  • RAID 10
  • RAID 5
Internal I/O
  • 1 x 24-pin (Power)
  • 1 x 4-pin (Power)
  • 1 x 4-pin CPU Fan Connector
  • 1 x 8-pin (Power)
  • 3 x Addressable Digital RGB Header
  • 4 x Chassis Water Pump/Fan Connector
  • 1 x CPU Water Pump/Fan Connector
  • 1 x Front Panel Audio Header
  • 1 x Power LED / Speaker Header
  • 1 x RGB Header
  • 1 x Thunderbolt AIC Connector
  • 1 x TPM (SPI_TPM) header
  • 1 x USB 2.0 Header
  • 2 x USB 3.2 Gen1 Header
  • 1 x USB 3.2 Gen1 Type-C Front Panel Header
External Connectivity
Network Interface Type Wired 2.5 Gigabit LAN
Network Chip/Modules 1 x Killer E3100G (2.5GbE LAN)
Rear I/O Connectors
  • 1 x BIOS Flashback Button
  • 1 x Front Speaker Out
  • 1 x HDMI 2.1
  • 1 x Line In
  • 1 x Mic-In
  • 1 x PS/2 Keyboard
  • 1 x RJ-45
  • 1 x S/PDIF-Out (Optical)
  • 2 x USB 2.0
  • 2 x USB 3.2 Gen1 Type-A
  • 2 x USB 3.2 Gen2 Type-A
  • 1 x USB 3.2 Gen2x2 Type-C
Additional Specifications
Water Cooled No
Cooling Passive Heatsinks
QPI Speed N/A
Board Dimensions 305 x 244 mm
